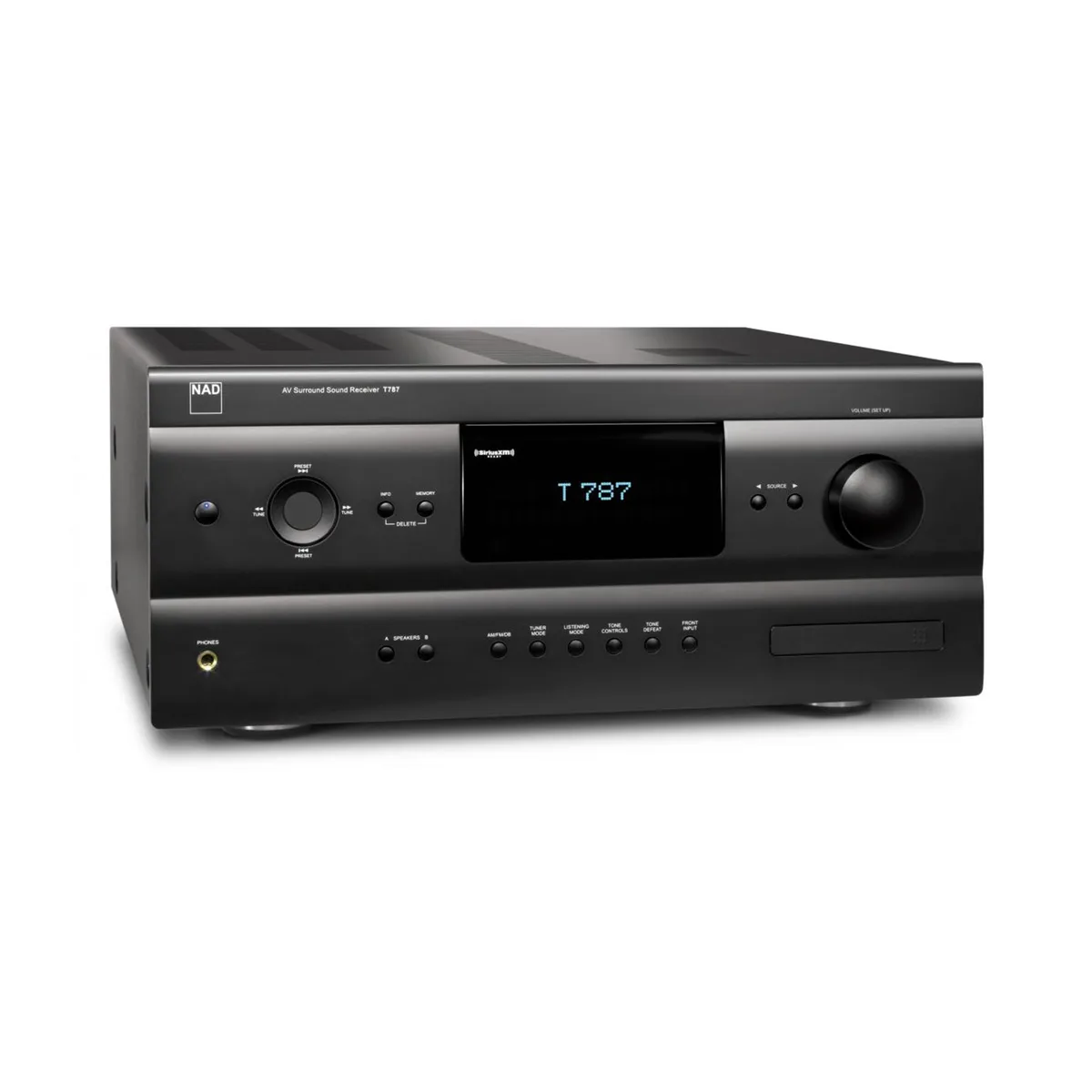

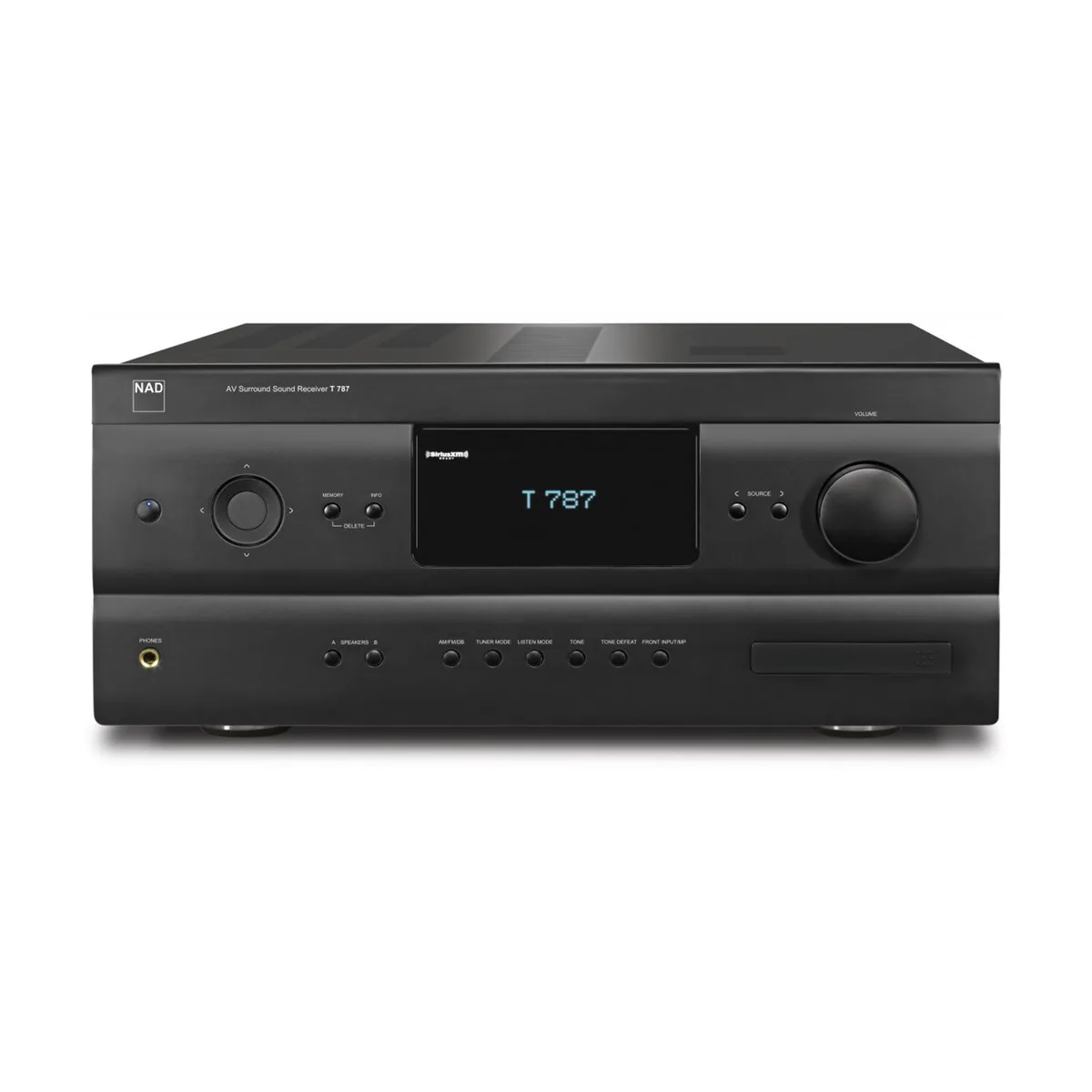

NAD T 787 AV環繞擴大機

產品規格

FTC

200W

Full Disclosure Power (all channels driven simultaneously)

7 x 120W (20.8dBW)

8 Ohms

230W

4 Ohms

320W

Damping Factor, 8 Ohms

>60

Input Sensitivity and Impedance

1.3V (ref. 8 Ohms, VOL at 0dB)

Frequency Response

±0.8dB (ref. 1kHz, 20Hz-20kHz)

Signal/Noise Ratio

>93dB (ref. rated power at 8 Ohms, A-weighted)

Input Sensitivity

330mV (ref. 2V)

Maximum Output Level

>4V

Tuning Range

530kHz - 1710kHz (120V version, 10kHz steps)

Usable Sensitivity

55dBμV

Loop Sensitivity 20dB S/N

66dBμV

Mono

60dB

Stereo

55dB

Channel Separation

30dBμV

RDS Decode Sensitivity

28dBμV

Net weight

25.2kg (55.6lb)

Shipping weight

29.2kg (64.4lb)
