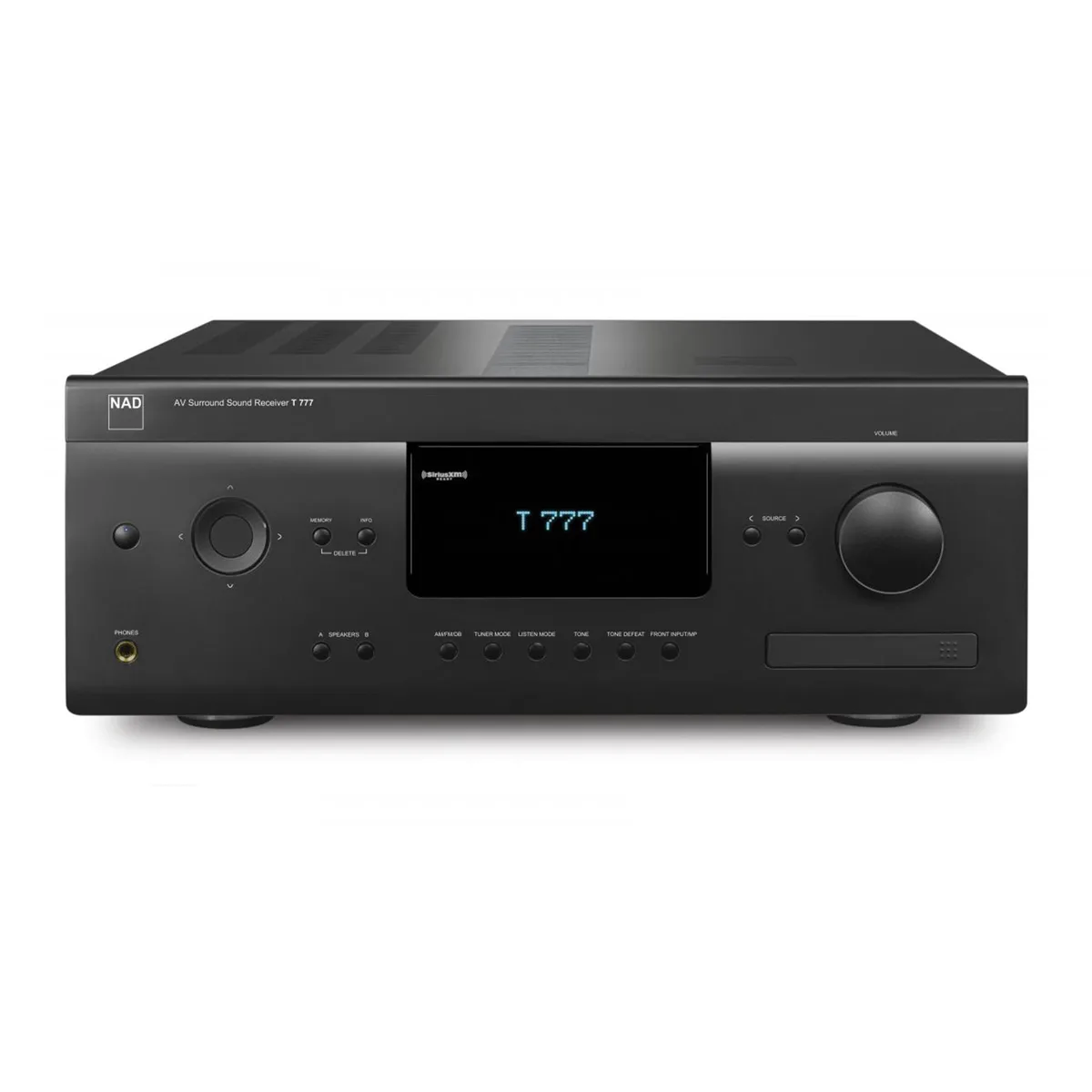

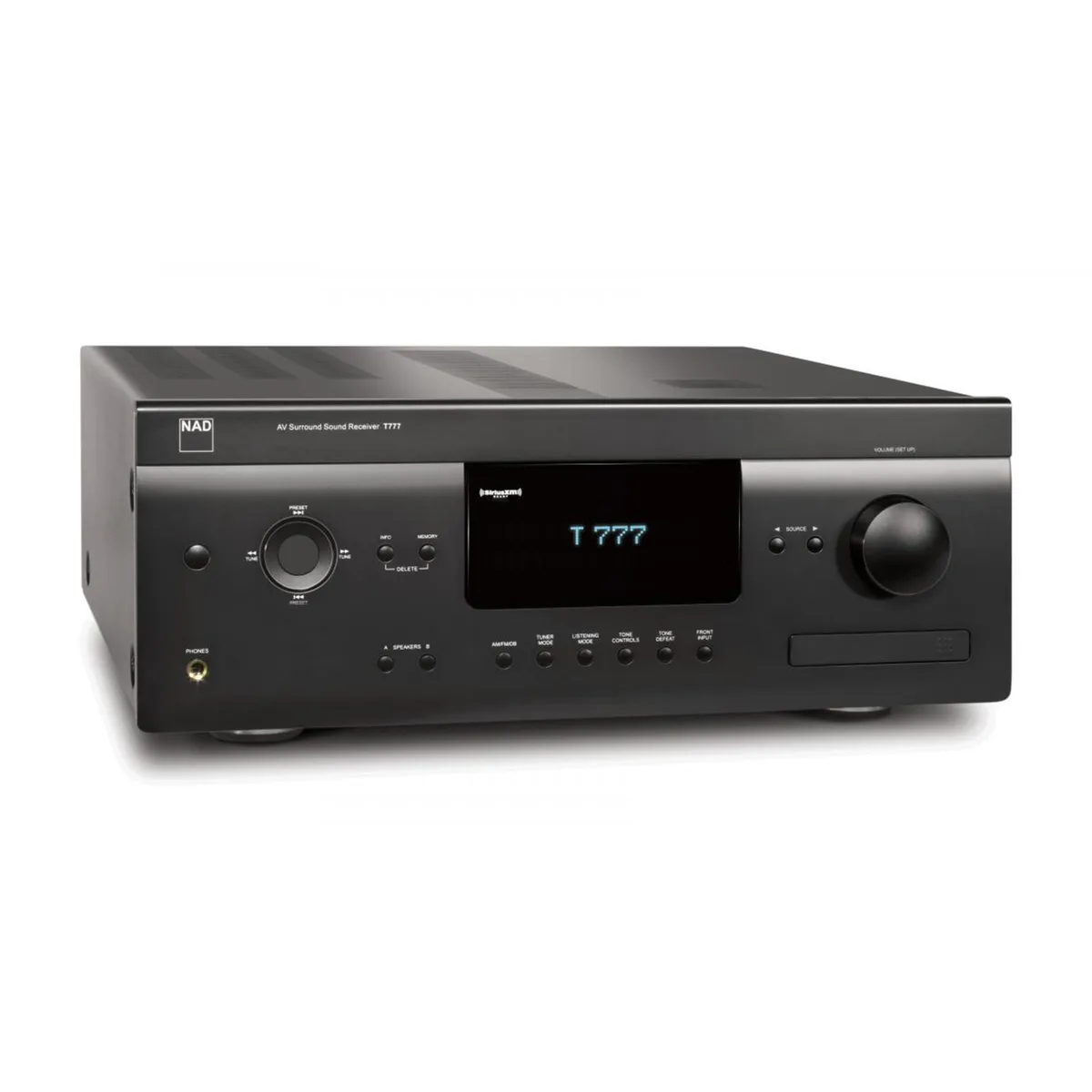

NAD T 777 AV環繞擴大機

產品規格

FTC

7 x 140W

Full Disclosure Power (all channels driven simultaneously)

7 x 80W (19dBW)

8 Ohms

160W

4 Ohms

260W

Damping Factor, 8 Ohms

>60

Input Sensitivity and Impedance

1.15V (ref. 8 Ohms, VOL at 0dB)

Frequency Response

±0.8dB (ref. 1kHz, 20Hz-20kHz)

Signal/Noise Ratio

>92dB (ref. rated power at 8 Ohms, A-Weighted)

Input Sensitivity

330mV (ref. 2V)

Maximum Output Level

>4V

Tuning Range

530kHz - 1710kHz (120V version, 10kHz steps)

Usable Sensitivity

55dBμV

Loop Sensitivity 20dB S/N

66dBμV

Mono

60dB

Stereo

55dB

Channel Separation

30dBμV

RDS Decode Sensitivity

28dBμV

Net weight

20.5kg (45.2lb)

Shipping weight

24.2kg (53.4lb)
