NAD音響

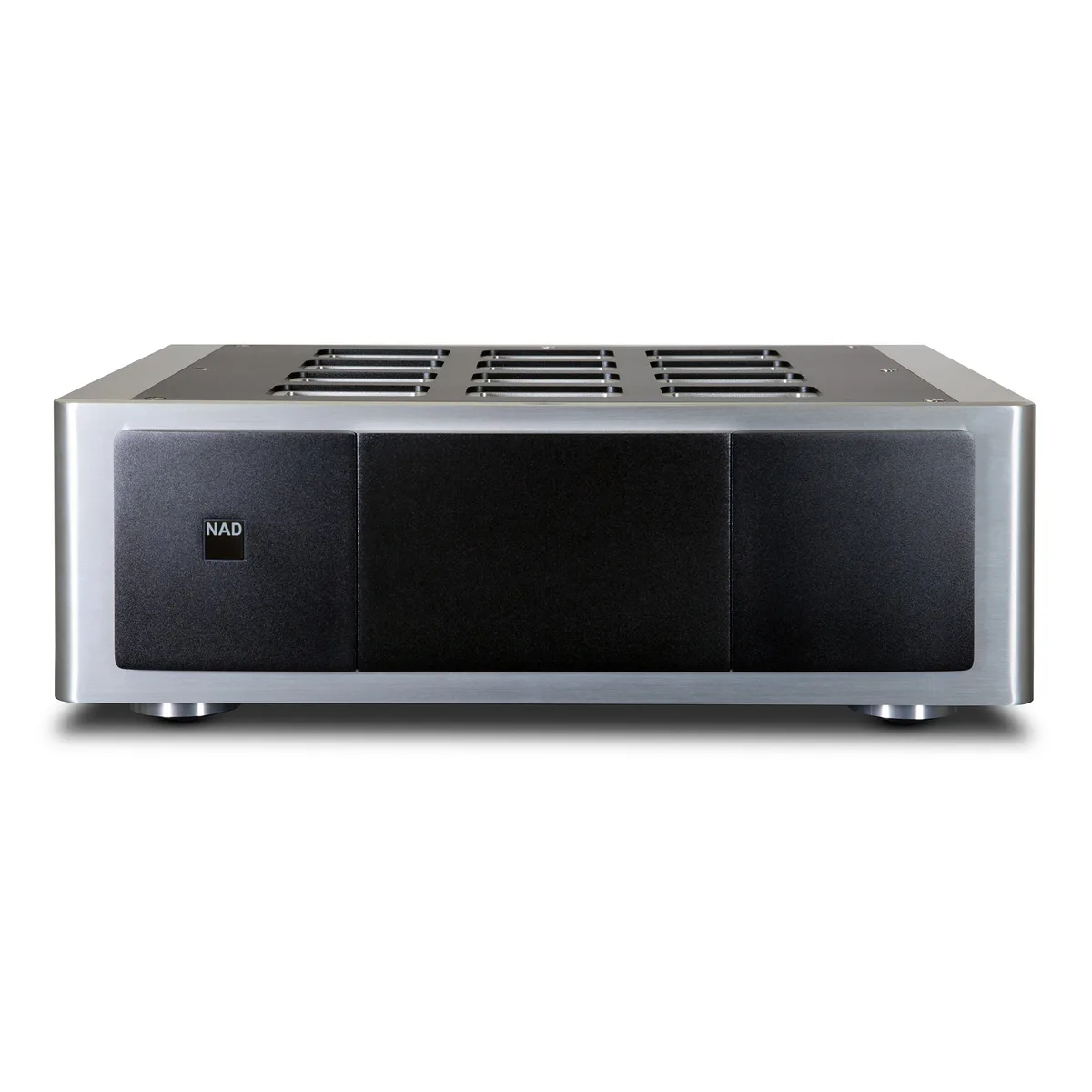

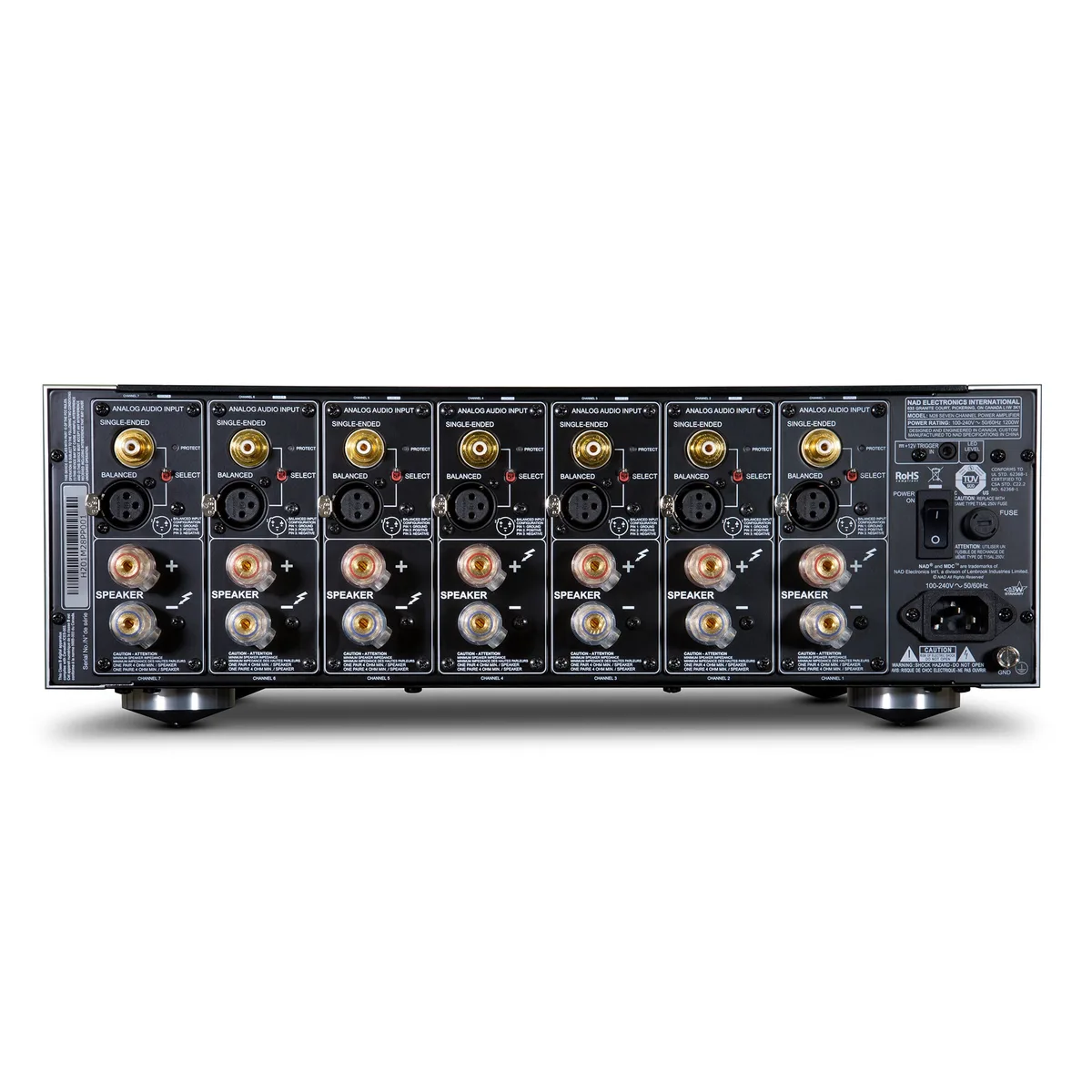

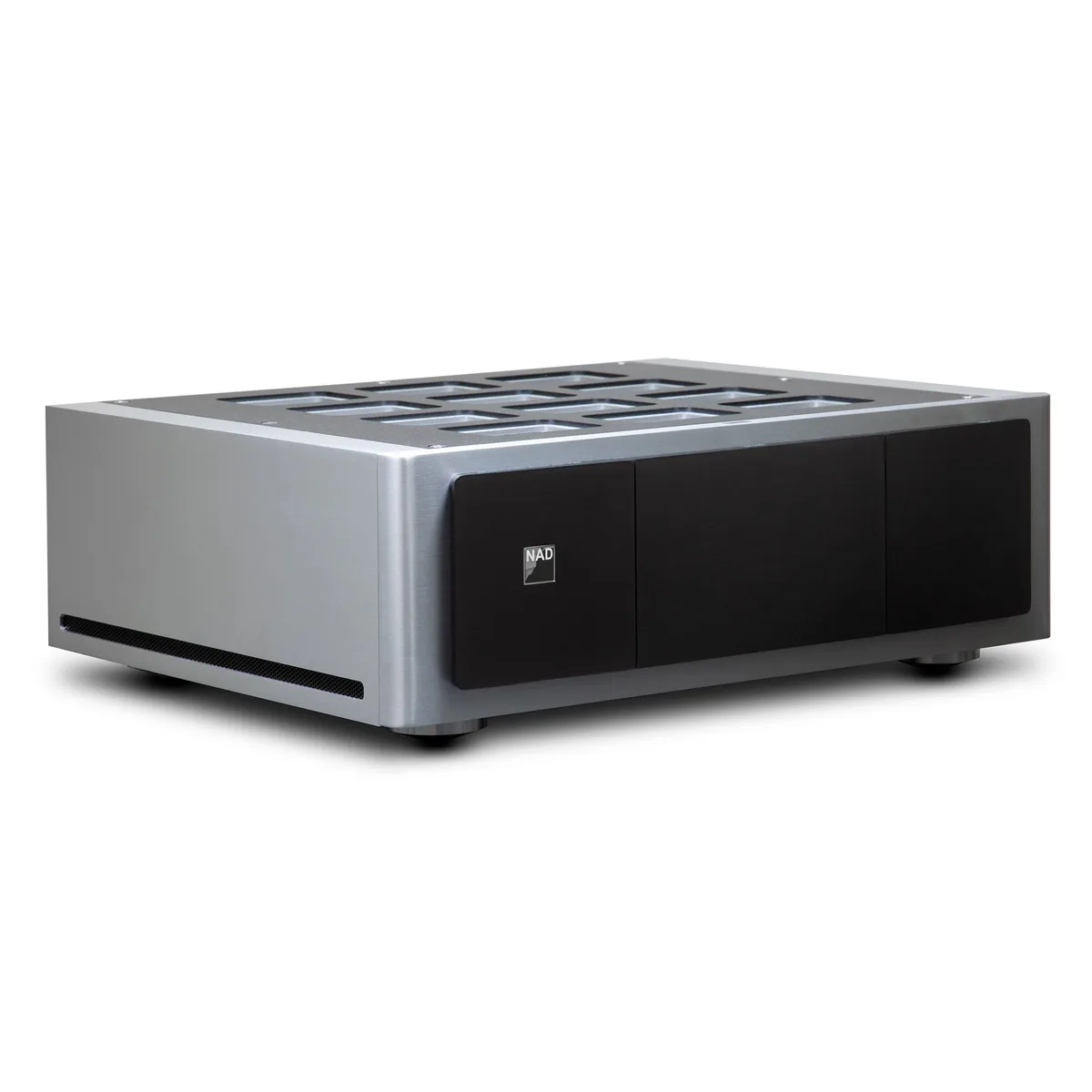

NAD M28 多聲道後級
NAD M28 多聲道後級 · M28 · NT$ 267,000
門市預約試聽
獨立聲學視聽室實機開聲
原廠公司貨保固
台灣授權代理安心售後
自營工班調校
全台音響劇院專業施工
專人一對一解說
客製化劇院系統搭配建議
參考售價
NT$ 267,000
供貨狀況請洽詢
一對一門市專人諮詢週一至六 10:00-21:00
詢價型號與商品識別碼
NAD M28 https://maxaudio1689.com/shop/audio/nad-products011-m28-aedbdce42ca7
產品規格
儀器級規格與硬體參數共 15 項標示
- 特色
- 200W x 7聲道
- OVERALL SPECIFICATIONS（規格）／FTC功率、two channels
- ≥ 220 W (ref. rated THD, 8 Ohms , 20 Hz - 20 kHz, two channels driven) ≥ 400 W (ref. rated THD, 4 Ohms , 20 Hz - 20 kHz, two channels driven)
- OVERALL SPECIFICATIONS（規格）／Rated功率、all channels
- ≥ 200 W (ref. rated THD, 8 Ohms , 20 Hz - 20 kHz, all channels driven) ≥ 340 W (ref. rated THD, 4 Ohms , 20 Hz - 20 kHz, all channels driven)
- OVERALL SPECIFICATIONS（規格）／Rated THD(250 mW至rated功率、CCIF IMD、DIM 100)
- ≤0.003 % (ref. 20 Hz - 20 kHz)
- OVERALL SPECIFICATIONS／IHF動態功率
- 280 W 8 Ohms, (all channels driven) 560 W 4 Ohms, (one channel driven)
- OVERALL SPECIFICATIONS／阻尼因數
- 1.3 V (ref. rated power)
- OVERALL SPECIFICATIONS（規格）／輸入阻抗輸入阻抗(r與c)
- 47 kΩ (Balanced) 23 kΩ (Single-ended)
- OVERALL SPECIFICATIONS（規格）／阻尼因數
- >750dB (ref. 8 Ohms, 50Hz and 1kHz)
- OVERALL SPECIFICATIONS／頻率響應
- ±0.1dB (ref. 20Hz-20kHz)
- OVERALL SPECIFICATIONS（規格）／輸入阻抗
- 47 kilohm (Balanced)
- OVERALL SPECIFICATIONS/訊號／噪訊比
- > 102dB (A-weighted ref. 1W, Balanced) > 97 dB (A-weighted ref. 1W, Single-ended) > 124 dB (A-weighted ref. rated power, Balanced) > 120 dB (A-weighted ref. rated power, Single-ended)
- OVERALL SPECIFICATIONS（規格）／Time至go至待機模式於no輸入訊號
- ≤ 30 minutes
- OVERALL SPECIFICATIONS／待機功耗
- ≤ 0.5W
- 尺寸與重量／Gross尺寸WxHxD
- 435 x 156 x 380 mm (17 3/16 x 6 3/16 x 15”)
- 尺寸與重量／Shipping重量
- 21.2 kg (46.7 lbs)
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
- 主資料來源
核對日期：
