NAD

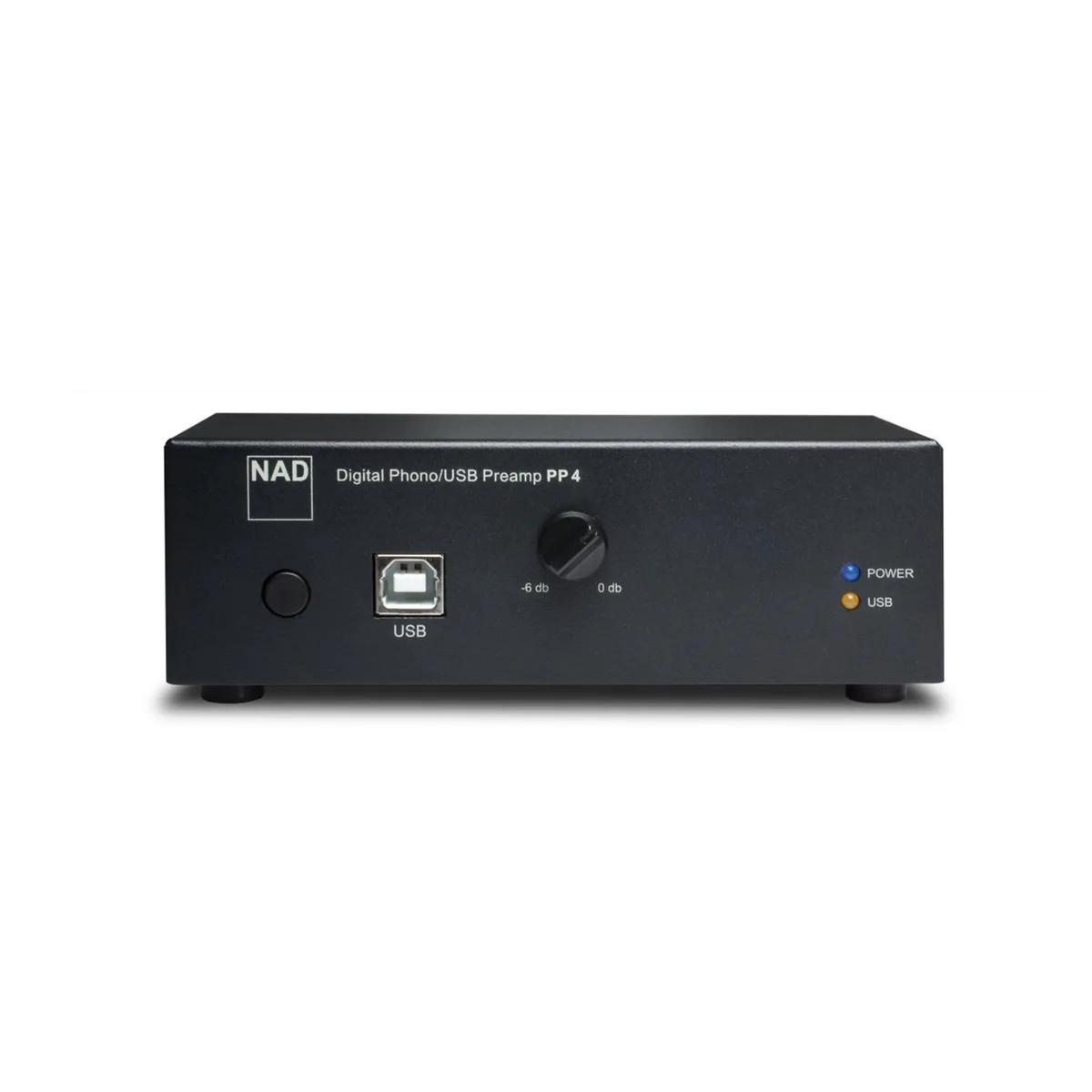

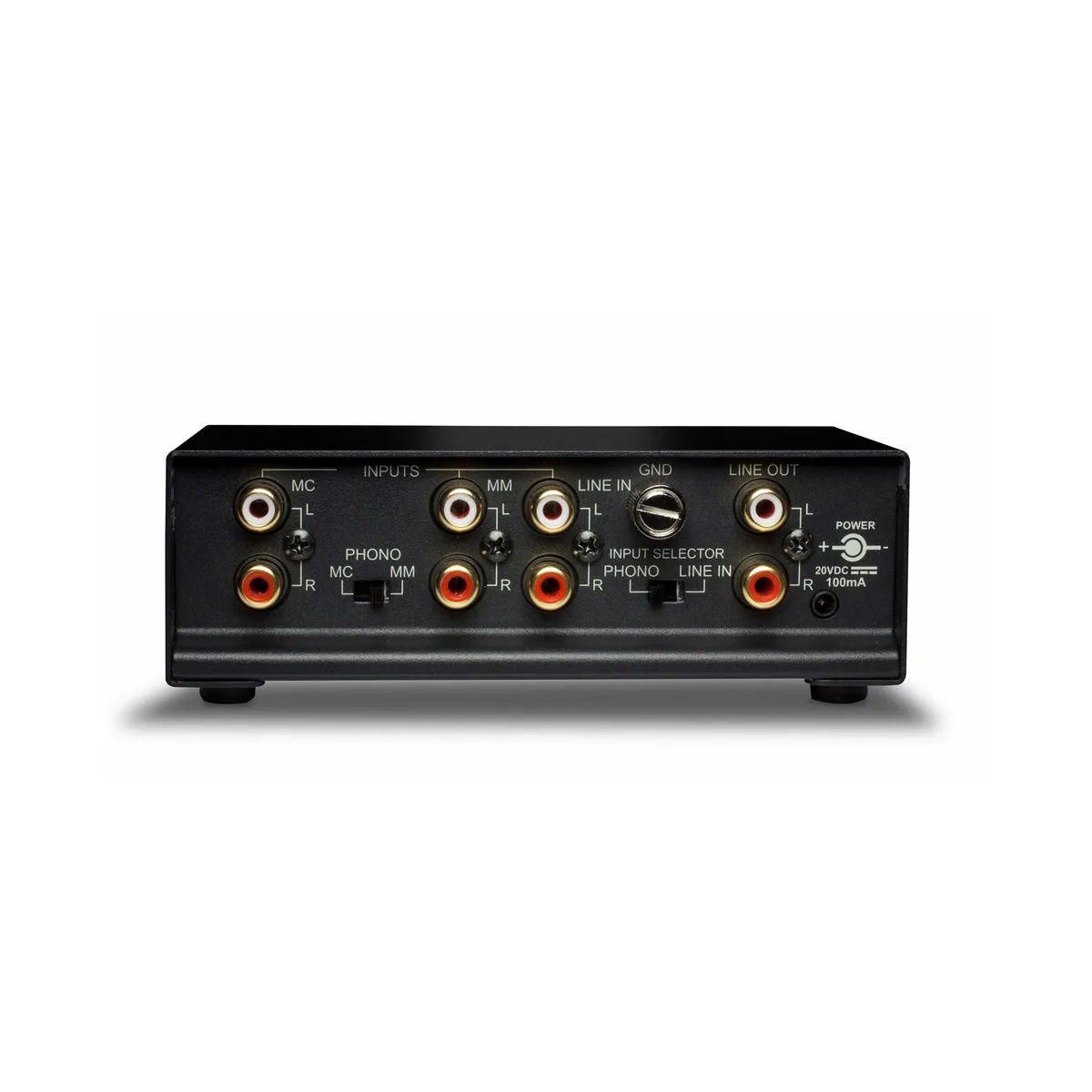

NAD PP 4 前級擴大機
NAD PP 4 前級擴大機 · PP 4 · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
詢價型號
NAD PP 4 https://maxaudio1689.com/shop/audio/nad-pp-4-digital-phono-usb-preamplifier-7e3b325b5118
產品規格
- Input Impedance (R and C)
- 100 Ohm + 180pF
- Gain at 1kHz
- 58dB
- Input sensitivity (ref. 200mV output)
- 0.38mV
- Signal to noise (A weighted, with cartridge connected)
- 78dB
- Input overload (20Hz/1kHz/20kHz)
- 0.65/6.5/60mV
- RIAA response accuracy
- ±0.3dB
- Infrasonic filter
- -14dB (5Hz)
- Digital output (USB)
- 16 bit linear PCM
- Sampling frequency
- 48kHz
- Dynamic range
- 86dB
- Sampling Frequency
- 48kHz
- Record Level
- 0dB to -6dB
- Gross Dimensions excl. Power supply (W x H x D)*
- 135 x 49 x 72mm 5 5/16 x 1 15/16 x 2 7/8"**
- Input Impedance
- 47 kilohm + 180pF
- Signal to noise, A weighted
- -115dB
- Maximum Input Level
- 5.3V
- Output Impedance
- 100 Ohm
- Maximum Output Level
- 5.3V
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
