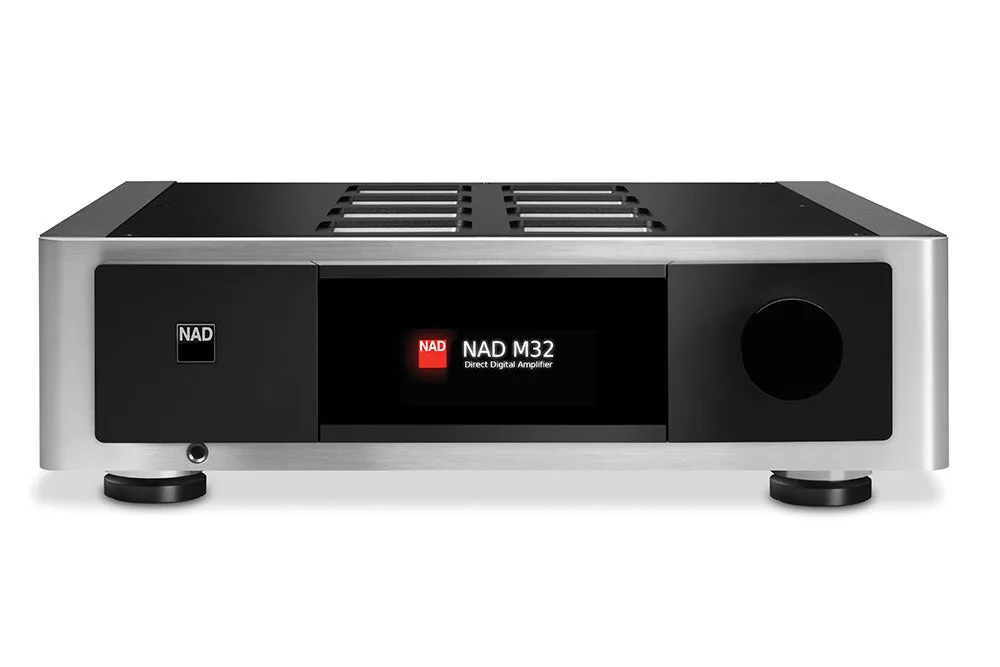

NAD M32

產品規格

AES/EBU, Coax and Optical, USB A and USB B

MM Phono Input

Single ended Line Inputs

Asynchronous USB 2.0 (24/192) Computer Input

AES/EBU, Coax, and Optical 924/192 Inputs

Subwoofer Crossover with selectable Crossover Frequency and Levels

Crossover Frequency and Levels

Headphone Amplifier

Two sets of Speaker Outputs for Bi wiring

Remote Control HTRM-2

Continuous Output Power into 8 Ohm and 4 Ohm

180W (ref. 20Hz-20kHz at rated THD, both channels driven)

THD (20Hz 20kHz)

0.005% (250mW to 180W, 8 Ohm and 4 Ohm)

Signal/Noise Ratio

>92dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)

Clipping Power

>195W (at1kHz, 0.1% THD)

8 Ohm

220W

4 Ohm

360W

2 Ohm

400W

Peak Output Current

>30A (in 1 Ohm, 1ms)

Damping Factor

>160 (ref. 8 Ohms, 20Hz-6.5kHz)

Frequency Response

±0.3dB (ref. 20Hz-96kHz at 192kHz)

Bit Rate/Sample Rate

up to 24 bit/192kHz

Input Impedance (R and C)

10 kilohms + 100pF

Maximum Input Signal

>4Vrms (ref. 0.1% THD)

Output Impedance

240 Ohms

Input Sensitivity

146mV (ref. 500mV out, Volume Maximum)

Maximum Voltage Output IHF load

>2V (ref. 0.1% THD)

Tone Controls

Treble: ±10dB at 20kHz Bass: ±10dB at 60Hz Balance: -10dB

Maximum Input Signal 1 1kHz

>66mV rms (ref. 0.1% THD)

at Auto Standby ON

0.5 Watts*

OFF mode (Power switched OFF)

0.4 Watts

Dimensions

435 x 133 x 396mm (17 1/8 x 5 1/4 x 15 5/8”)

Net Weight

9.8kg (21.6lb)

Shipping Weight

18.5kg (40.8lb)
