NAD

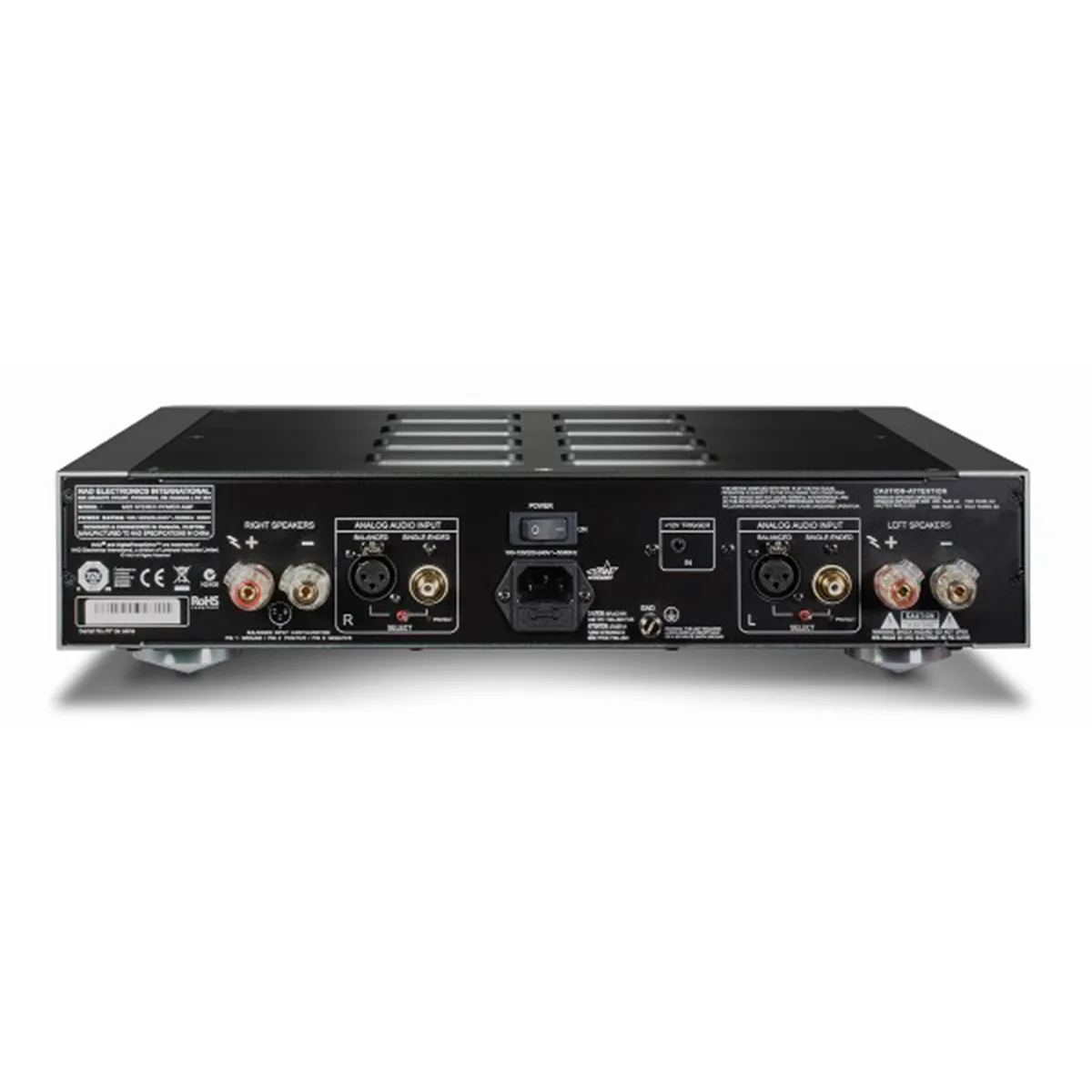

NAD M22 後級擴大機
NAD M22 後級擴大機 · M22 · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
詢價型號
NAD M22 https://maxaudio1689.com/shop/audio/nad-m22-stereo-power-amplifier-b48f2a81e886
產品規格
- • Continuous output power into 8 Ohms and 4 Ohms (Stereo)
- >250W (at rated THD, 20Hz-20kHz, both channels driven)
- Clipping Power (8 Ohms)
- >300W (at 1kHz 0.1% THD)
- IHF Dynamic Power 8 Ohms
- 355W
- 4 Ohms
- 640W
- 2 Ohms
- 620W
- Peak Output Current
- >50A (ref. 1 Ohm, 1ms)
- Signal/Noise Ratio, A weighted, ref. 1W
- >98dB
- A weighted, ref. rated power
- >120dB
- Damping Factor
- >800 (ref. 8 Ohms, 50Hz and 1kHz)
- Frequency Response
- 3Hz-30kHz (ref. -3dB)
- Input Impedance RCA
- 17 kilohm + 200pF
- XLR
- 200 kilohm + 100pF
- Input Sensitivity
- 1.6V (ref. rated power)
- Voltage Gain
- 29dB
- Minimum Input Level for Auto Trigger
- 10mV at 1kHz
- Idle Power
- 40W
- Unit Dimension (WxHxD) Gross*
- 435 x 103 x 379mm
- Net weight
- 8.9kg (19.6lb)
- Shipping Weight
- 15kg (33.1lb)
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
