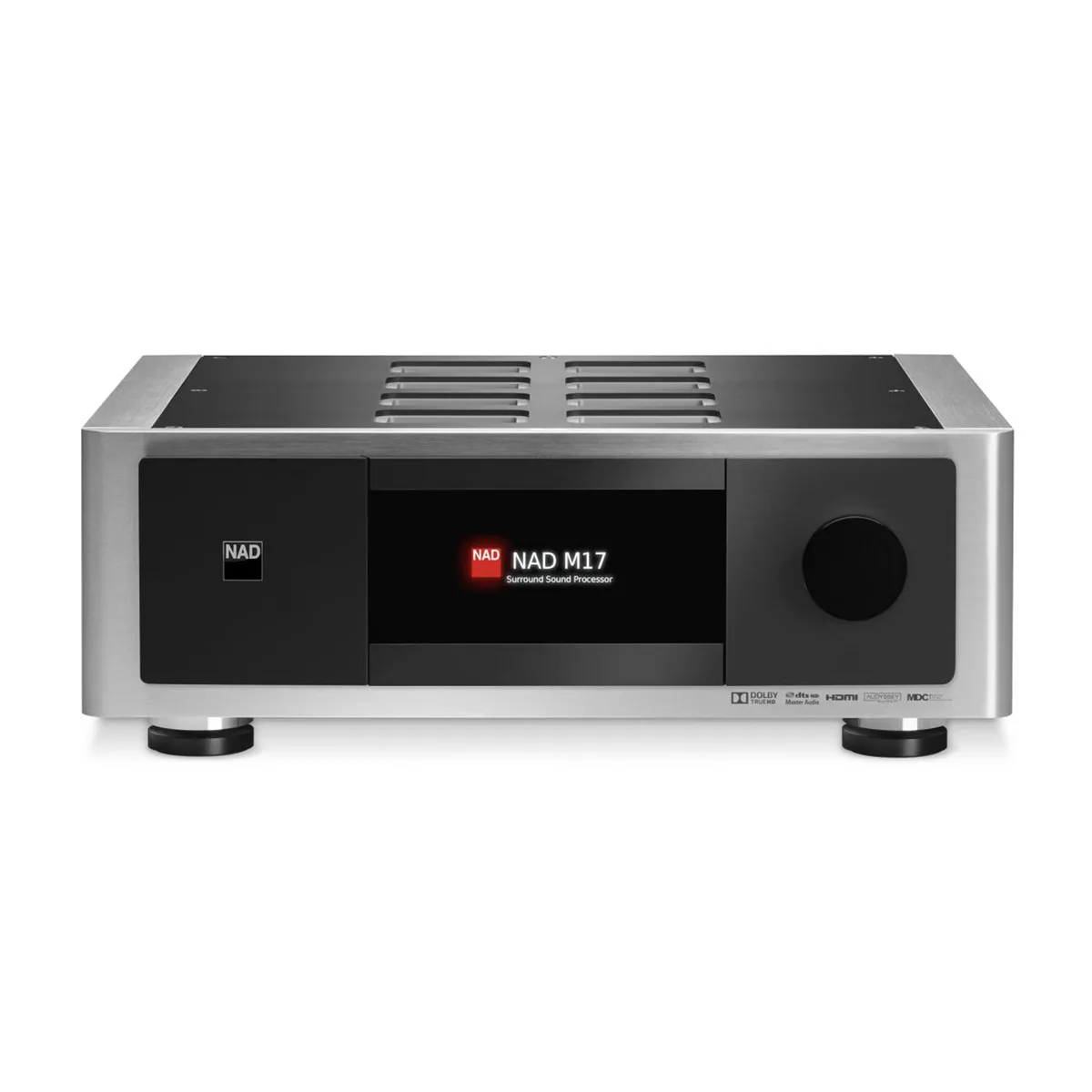

NAD M17 前級擴大機
NAD M17 前級擴大機 · M17 · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
詢價型號
NAD M17 https://maxaudio1689.com/shop/audio/nad-m17-av-surround-sound-preamp-processor-d8af9d762124
產品規格
- HDMI
- Up to 1080p
- Optical
- 3 Vpp
- Coaxial
- 0.5 Vpp
- Ethernet
- RJ45 10/100 Ethernet Tx
- Input Impedance (R and C)
- 56kilohm + 220pF
- Input Sensitivity
- 40mV (ref. 500mV out)
- Maximum Input Signal
- >8Vrms
- Signal/Noise Ratio, A weighted
- >90dB (ref. 500mV in, 500mV out, volume set to unity gain)
- Channel Separation
- >70dB (ref. 1kHz / 10kHz)
- Frequency Response
- ±0.3dB (ref. 20Hz - 20kHz, Tone Active)
- Frequency Response (subwoofer out)
- 10 - 200Hz (ref. -3dB)
- XLR
- >2Vrms
- Maximum output level
- >8Vrms into 600 Ohms
- Tone Controls Treble
- ±10dB at 10kHz (ref. 2V in, 2V out)
- Bass
- ±10dB at 100kHz (ref. 2V in, 2V out)
- Unit Dimension (WxHxD) Gross*
- 435 x 156 x 386mm
- Net weight
- 10.9kg (24lb)
- Shipping weight
- 17.5kg (38.6lb)
