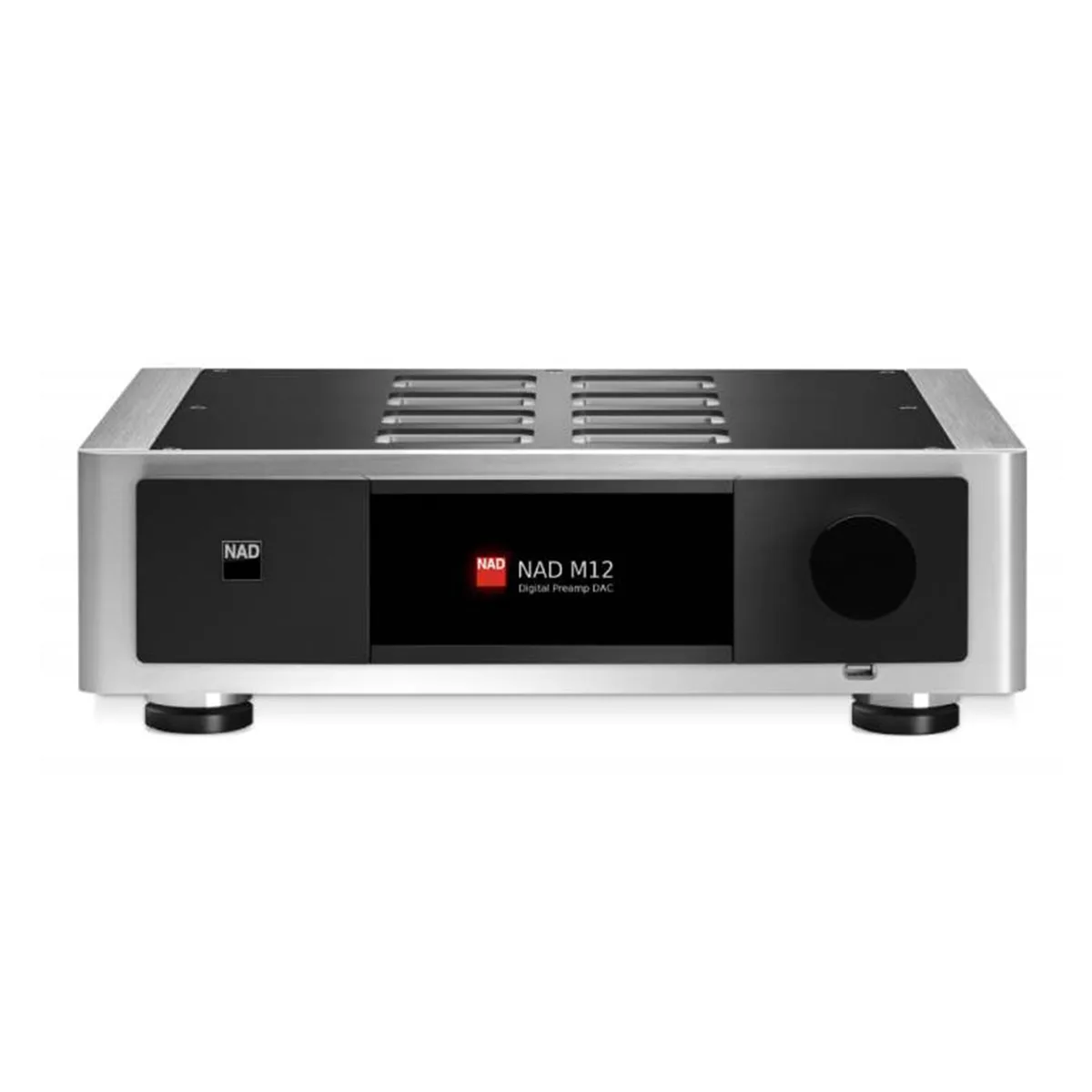

NAD M12 前級擴大機

產品規格

Input Impedance

56 kilohm + 220pF

Input Sensitivity

40mV (ref. 500mV out)

Maximum Input Signal

>8Vrms

Signal/Noise Ratio, A weighted

>90dB (ref. 500mV in 500mV out, volume set to unity gain

Channel Separation

>70dB (ref. 1kHz/10kHz)

Frequency Response

±0.3dB (ref. 20Hz-20kHz, Tone Controls - On)

Frequency Response (subwoofer out)

10-200Hz (ref. -3dB)

Maximum Output Level

>8Vrms into 600 Ohms

THD (CCIF IMD, DIM 100)

>0.005% (ref. 20Hz-20kHz, 2V out)

Balanced

>2Vrms

Treble

±10dB at 10kHz (ref. 2V in 2V out)

Bass

±10dB at 100Hz (ref. 2V in 2V out)

Digital USB Front/Digital USB Back (USB Type A)

MP3/WMA:48kHz

Computer (USB Type B)

24 bit/192kHz PCM content from PC or Mac

Sample Rate

32kHz to 192kHz

Gross Unit Dimensions* (WxHxD)

435 x 133 x 383mm (17 1/8 x 5 1/4 x 15 1/8")

Net Weight

8.1kg (17.9lb)

Shipping Weight

14.5kg (32lb)
