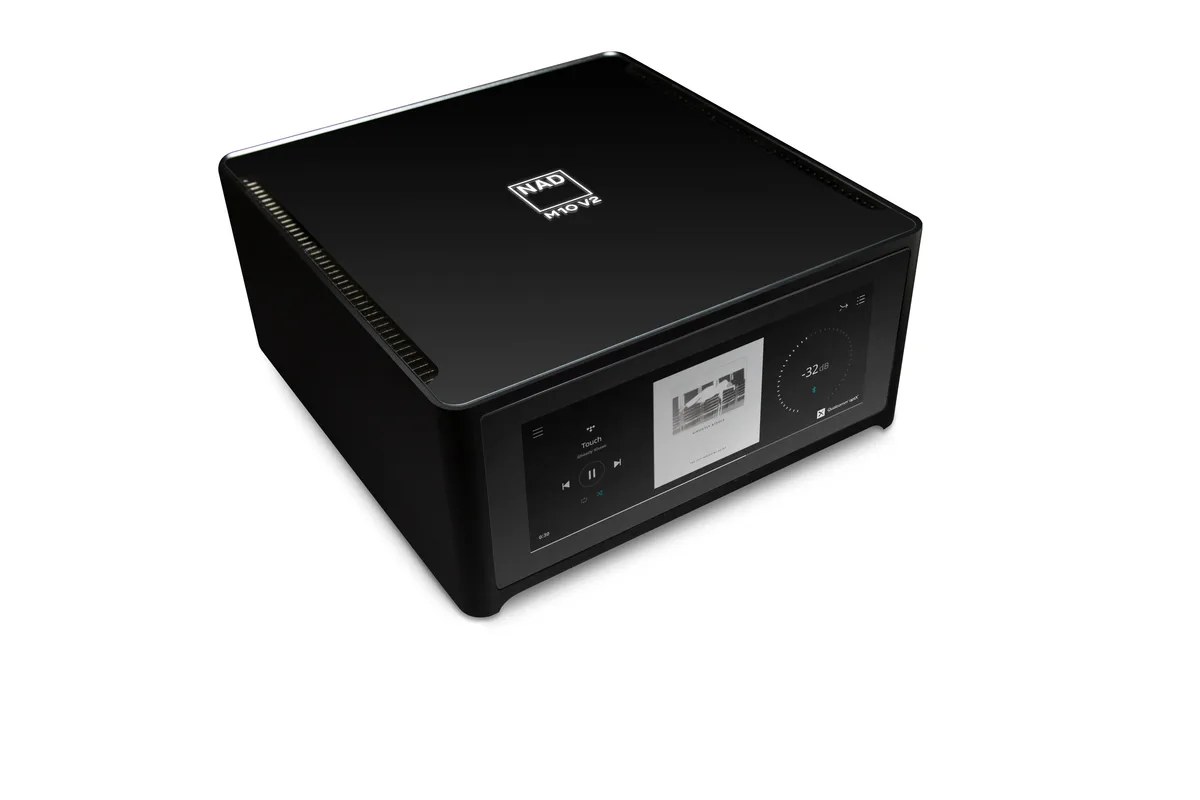

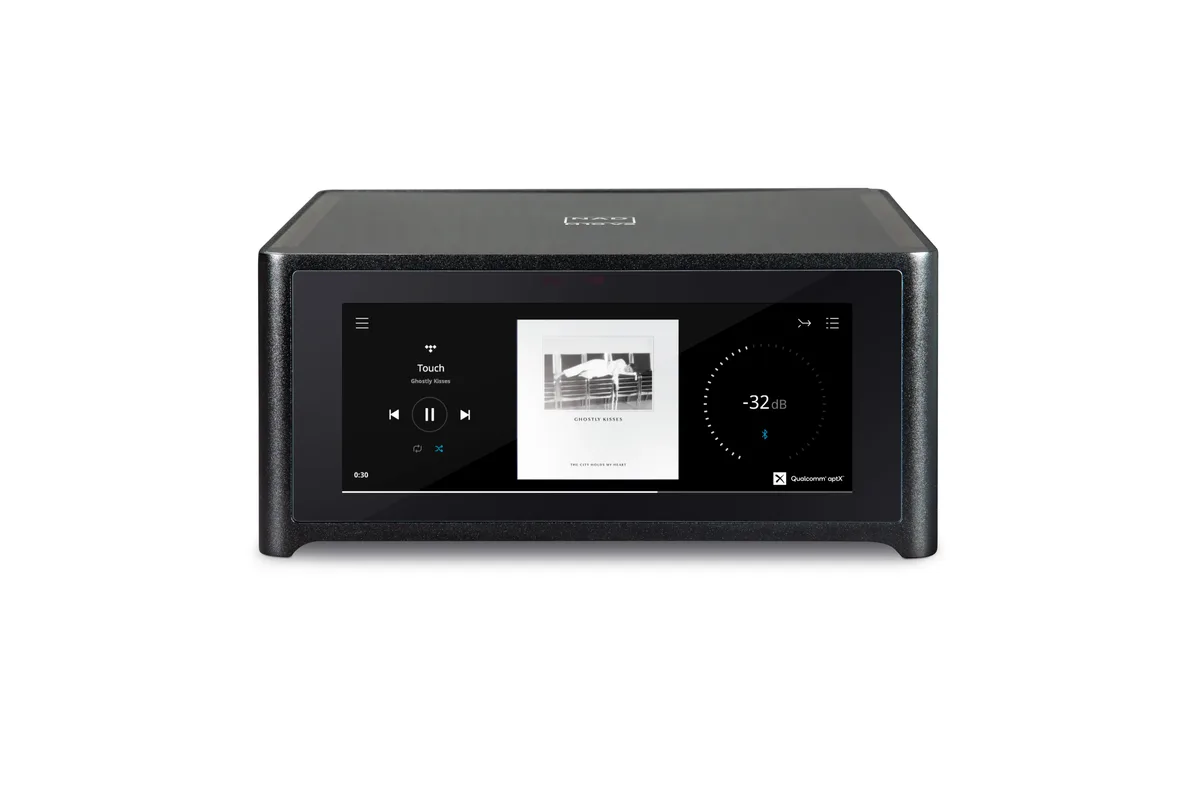

NAD M10 V2 網路串流機

產品規格

Continuous output power into 8 ohms and 4 ohms

>100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)

Signal to Noise Ratio

>85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

Clipping power

>130 W (at 1 kHz 8 ohms 0.1 % THD) >230 W (at 1 kHz 4 ohms 0.1 % THD)

IHF dynamic power

8 ohms: 160 W 4 ohms: 300 W

Damping factor

>190 (ref. 8 ohms, 20Hz to 6.5kHz)

Frequency response

±0.6 dB (20 Hz - 20 kHz)

Tone controls

Treble: ±6.0 dB at 20 kHz Bass: ±6.0dB at 60 Hz

Channel separation

>83 dB (1 kHz) >70.5 dB (10 kHz)

Input sensitivity (for 100 W in 8 ohms)

Line In: 456 mV Digital In: -13.23 %FS

Supported audio file formats

MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi Resolution audio formats

MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)

Sampling rate

up to 32 bit/192 kHz PCM

Bit depths

16 - 24

Supported operating systems

Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions

User interface mobile operating system BluOS

BluOS - Free Android and iOS App available online at Google Play and Apple App store

Supported cloud services*

Amazon Alexa, Amazon Music, Spotify (also support for Spotify Lossless), TIDAL, Deezer, Qobuz, Qobuz Connect, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs

Free internet radio*

TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise

Bluetooth quality

Bluetooth aptX HD built-in

Bluetooth connectivity

Two-Way (Receive and Headphone modes)

Network connectivity

Gigabit Ethernet RJ45, Wi-Fi 5

Gross dimensions

215 x 100 x 260 mm 8 1/2 x 3 15/16 x 10 1/4 inches

Shipping weight

5 kg (11 lbs)
