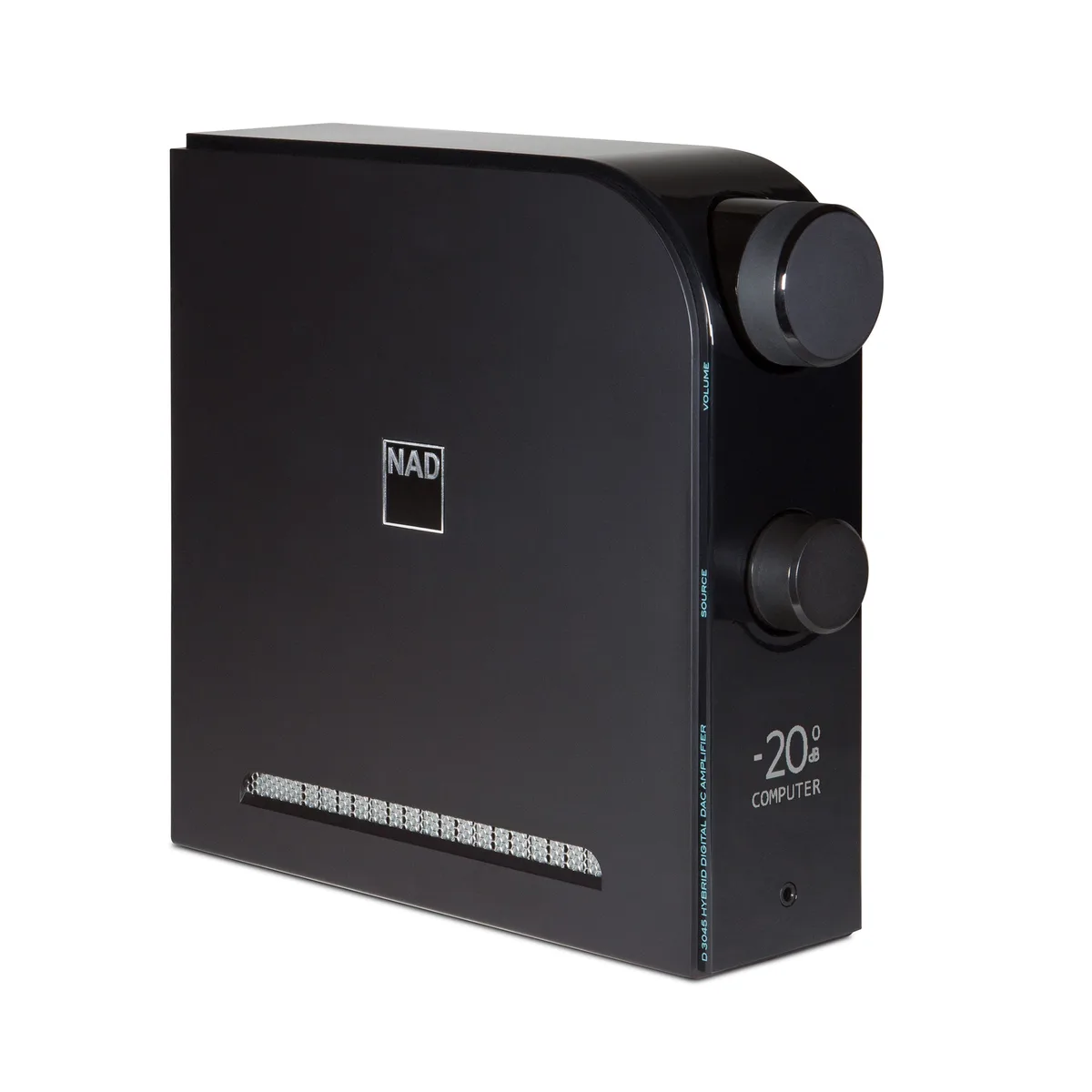

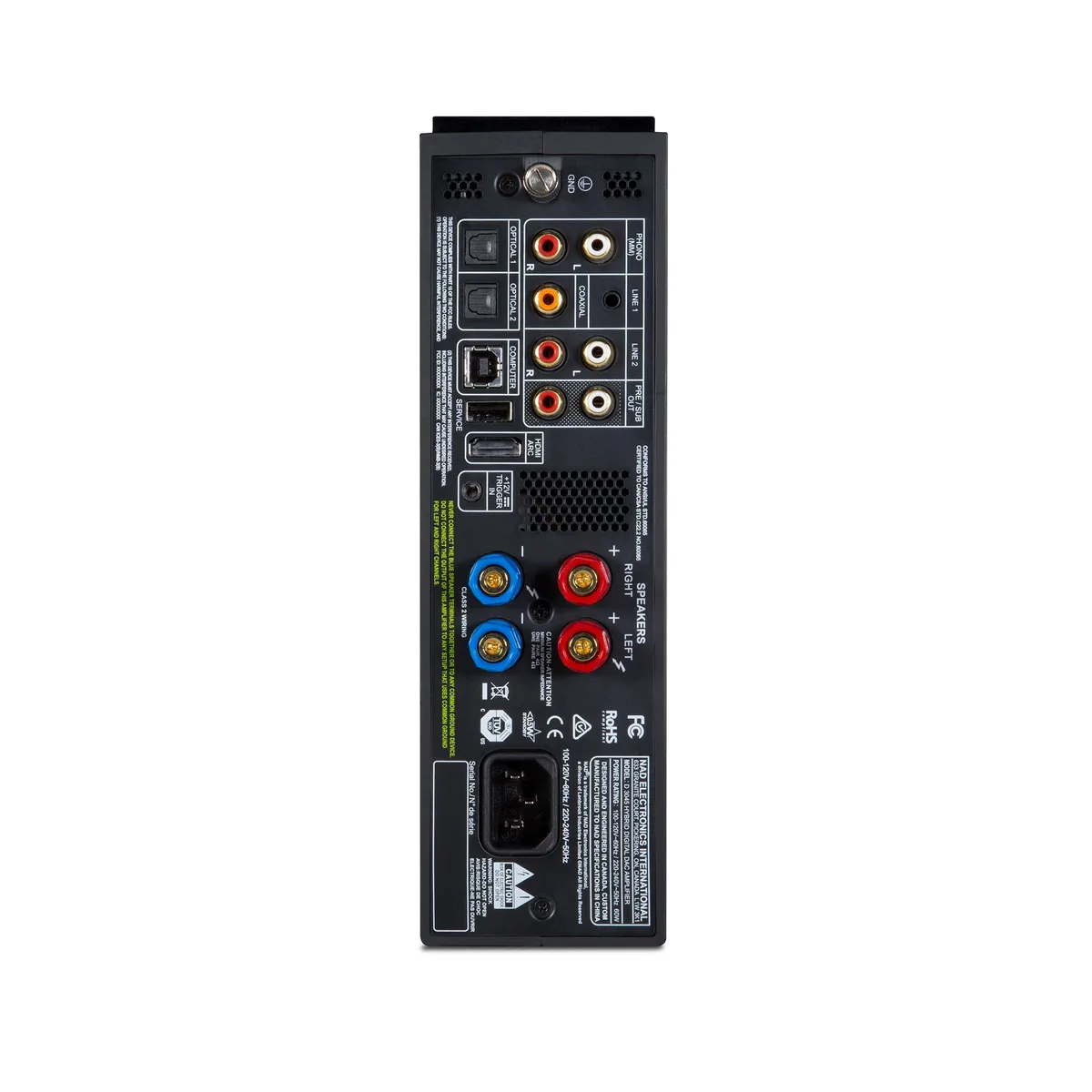

NAD D 3045 DAC

產品規格

Signal to Noise Ratio

>100dB (IHF, A-weighted, ref. 500mV out, unity gain)

Channel separation

>85dB (1kHz) >80dB (10kHz)

Input impedance (R and C)

47kohms + 220pF

Maximum input signal

>5.5Vrms (ref. 0.1% THD)

Output impedance

400 Ohms

Input sensitivity

82mV (ref. 500mV out, Volume maximum)

Frequency response

±0.2dB (20Hz - 20kHz)

Maximum voltage output IHF load

>4V (ref. 0.1% THD)

Maximum input signal at 1kHz

>90mVrms (ref. 0.1% THD)

Output impedance 2 Ohms

Maximum headphone output - 32 Ohm load

Continuous output power into 4 and 8 Ohms

60W (ref. 20Hz-20kHz at 0.03% THD, both channels driven)

Clipping power

>80W (at 1kHz 4 Ohms 0.1% THD)

IHF dynamic power

8 Ohms : 80W 4 Ohms : 150W 2 Ohms : 200W

Peak output current

>18A (in 1 Ohm, 1ms)

Damping factor

>300 (ref. 8 Ohms, 20Hz to 6.5kHz)

Supports bit rate/sample rate

up to 24 bit/192kHz (digital source) up to 24 bit/384kHz (computer source)

Gross dimensions (W x H x D)*

70 x 235 x 265 mm 2 13/16 x 9 5/16 x 10 7/16 inches**

Net weight

3.6kg (7.9lb)

Shipping weight

2.6kg (5.7lb)
