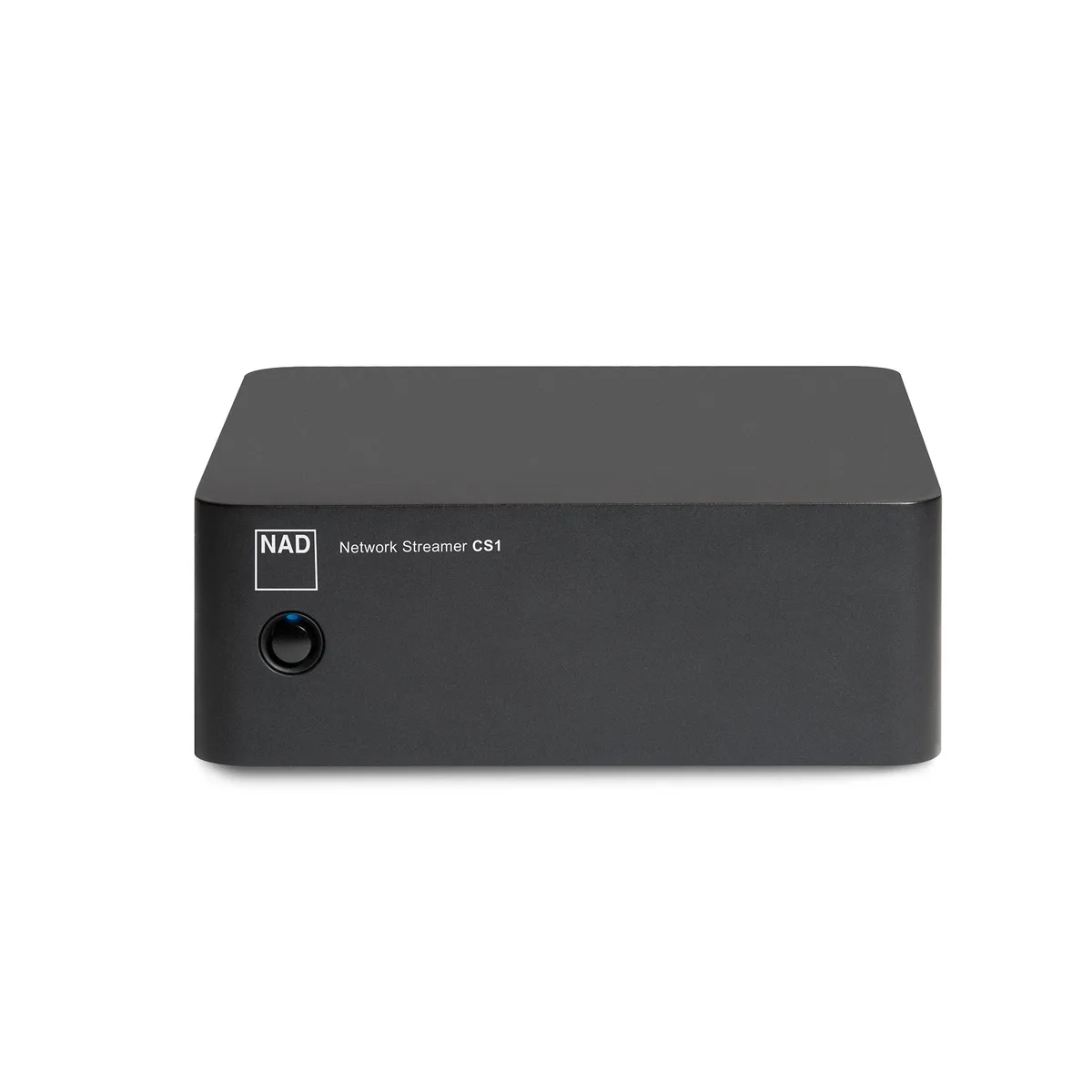

NAD CS1 網路串流機

產品規格

Signal to Noise ratio

-94dB (ref 2V)

Frequency response

20-20 kHz +/-0.3dB; 50 kHz -3dB

Native sampling rate

Up to 192 kHz

Bit depth

16-24

Supported audio file format

LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability

Supported 3rd party service provider

Spotify Connect (also support for Spotify Lossless), Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon

數位類比轉換器

TI PCM5142

Processor

ARM® Cortex™ -A53, Quad-Core, 1.5GHz per core

Power

AC adapter Input: 100-240V AC 0.3A Output: 5V DC 1A

Network connectivity

Ethernet RJ45 100 Mbps Wi-Fi 5 (802.11ac 2.4GHz/5 GHz) DLNA/UPnp*

藍牙

Bluetooth 5.2 BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP

NFC

NFC for easy Bluetooth connection

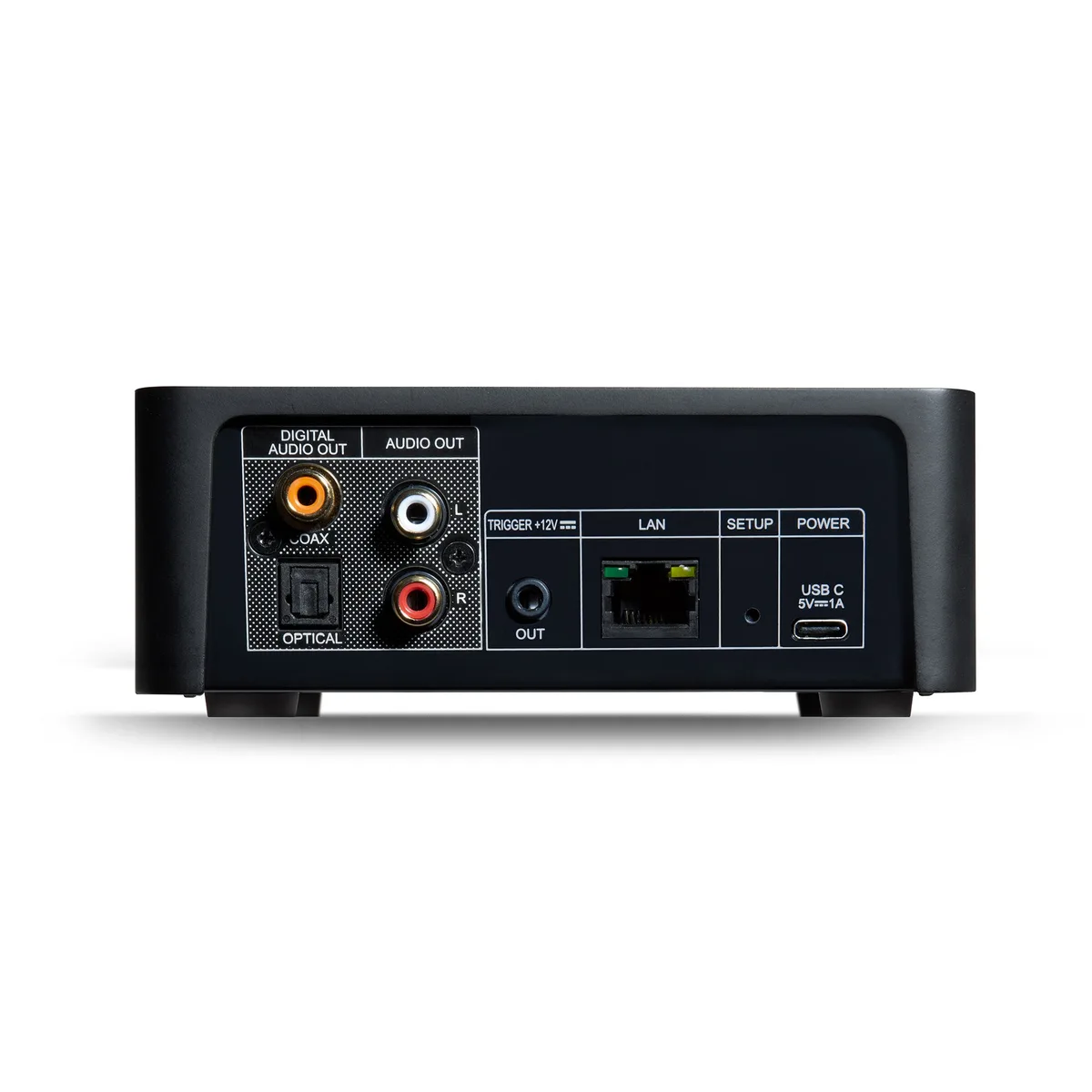

12V Trigger Out

3.5mm Mini-jack x 1

Analog Out

RCA x 1

Coaxial Out

RCA 75 ohms

Optical Out

TOSLINK x 1

USB IN

USB C for AC adapter

Status Indicator

Front Panel LED

Function Button

Front Panel Function Button

Power Consumption

0.5W Network Standby

Finish

Black

Gross dimensions (W x H x D)**

140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches)

Net Weight

1.5 kgs / 3.3 lbs

Shipping Weight

1.7 kgs / 3.8 lbs
