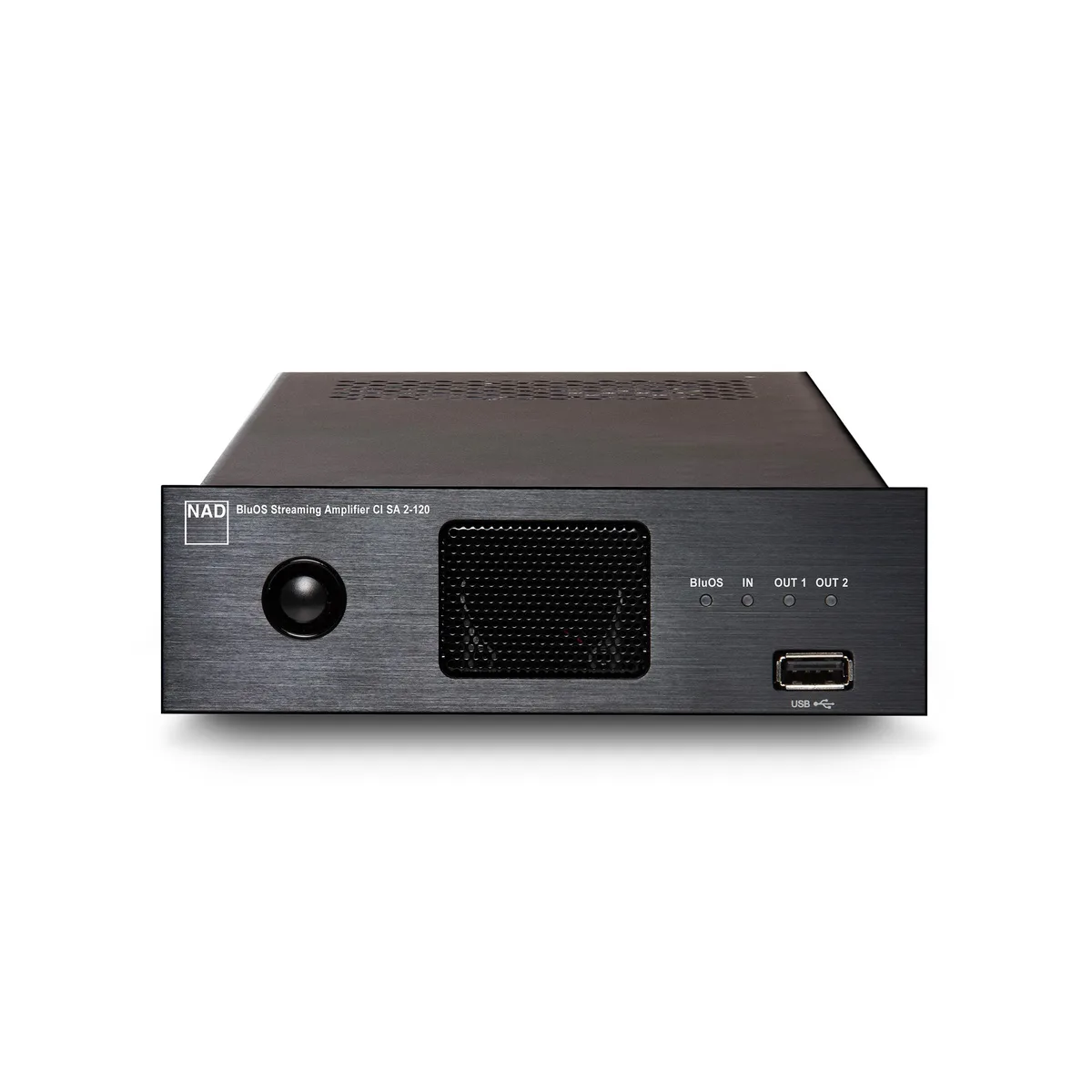

NAD CI SA2-120 網路串流機

產品規格

Supported Audio File Formats

MP3, AAC, WMA, WMA-L, OGG, OPUS

Supported High Quality Audio File Formats

FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS

Supported Multi Channel Audio Formats

Dolby Digital® Downmixing to stereo PCM

Native Sampling Rates

up to 192 KHz

Bit Depth

16-24

Audio Controls & EQ

BluOS Control App

Signal to Noise Ratio

>102dBA

Distortion

THD+N, 0.005%

Amplification

DirectDigital™

Rated Power Output

60W (8 & 4 Ohms)

IHF Dynamic Power

150w (8 & 4 Ohms)

Operating System

BluOS

App Controller Operating System

iOS, Android, Windows, macOS

Processor

ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing

Server Message Block (SMB) up to 200,000 files

Album Art Supported

JPG, PNG

Music Services & Internet Radio

23+

3rd Party Integrations

AirPlay 2, Spotify Connect, Tidal Connect

Room Correction Software

Dirac Live Ready (Zone 1 only, calibration mic not included)

Control System Integrations

Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI

Voice Control Integrations

Amazon Alexa Skills

Power Supply

Universal 2-pin AC cord input (100-240AC)

Ethernet/LAN

Ethernet RJ45, Gigabit 1000Mbps

Wi Fi

Built In WiFi 5 (802.11ac), dual-band

Bluetooth Quality

Bluetooth 5.2 aptX HD

Bluetooth Connectivity

Two-Way (Zone 1 only)

IR Optical Built In

No

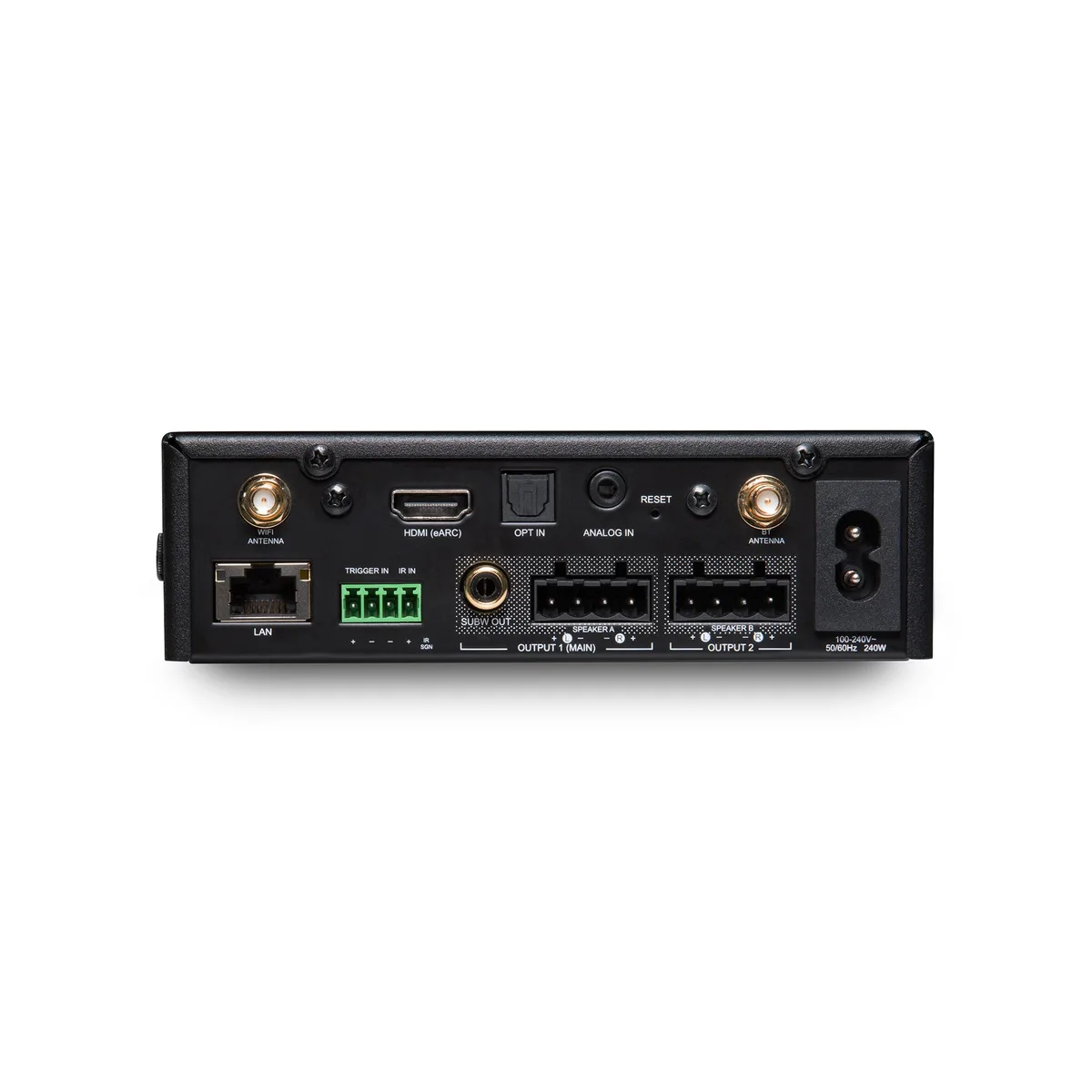

IR Input

2-pin PHX connector (IR extender kit required)

Optical/Analog Input

Toslink Optical, 3.5mm Analog (Zone 1 Only)

HDMI Input

HDMI eARC (Zone 1 Only)

USB In

Type A (Fat32, NTFS Formatted) - External Storage Only Local Server Mode

Dual Speaker Outputs

Yes, Output 1 = Zone 1, Output 2 = Zone 2

Main Zone/Sub Zone Capability

Yes (independent volume control over Speaker Output 2 when activated)

Subwoofer Output

RCA x 1; Wireless to PULSE SUB+ (Linked to Output1/Zone 1 only)

Speaker Terminals

2x 4-PIN Snap On PHX 5.08mm Connector, supports up to 12AWG

Headphone Output

None

12v Trigger Input

x1 Configurable Smart Trigger Input

12v Trigger Output

None

Status Indicator

BluOS Status LED

Source Status Indicator

x2, BluOS/Connected Input Live

Output Status Indicator

x2, Output pair 1, Output Pair 2

Finish

Black

Max Power Consumption

240w

Storage Environment

-10°C to 50°C, 20% to 80% relative humidity

Operating Environment

0°C to 40°C

SKU/Version

SA2-120

Generation

1

Product Dimensions

146.5 x 44 x 384 mm (5.77 x 1.73 x 15.11 inches)

Product Weight

2.52 kg (5.56 lbs)

Dimensions (Shipping, Single Unit)

520 x 228 x 140 mm (20.5 x 9 x 5.5 inches)

Weight (Shipping, Single Unit)

3.65 kg (8.05 lbs)

Dimensions (Shipping, Masterpack)

532 x 470 x 444 mm

Weight (Shipping, Masterpack)

23.3 kg

Units per Carton

6

Power Cords

120V AC Power Cord; 230V AC Power Cord

Rack Ears / Wall Mount Brackets

2 x Short rack ears (also used as wall mount brackets)

Long Rack Ears / Blanking Plates

2 x Long rack ears/blanking plates

ChassisLink Hardware

2 x Shoulder Bolts + 2 x Rubber Washers (already attached for ChassisLink)

Speaker Connectors

2 x 4-PIN Snap On PHX 5.08mm Speaker Connectors

12V Trigger + IR Connector

1 x 4-PIN PHX Connector for 12V trigger + IR In

Rubber Feet

4 x optional stick-on rubber feet

Wi Fi Antenna

1 x Wi-Fi Antenna

Bluetooth Antenna

1 x BT Antenna
