NAD

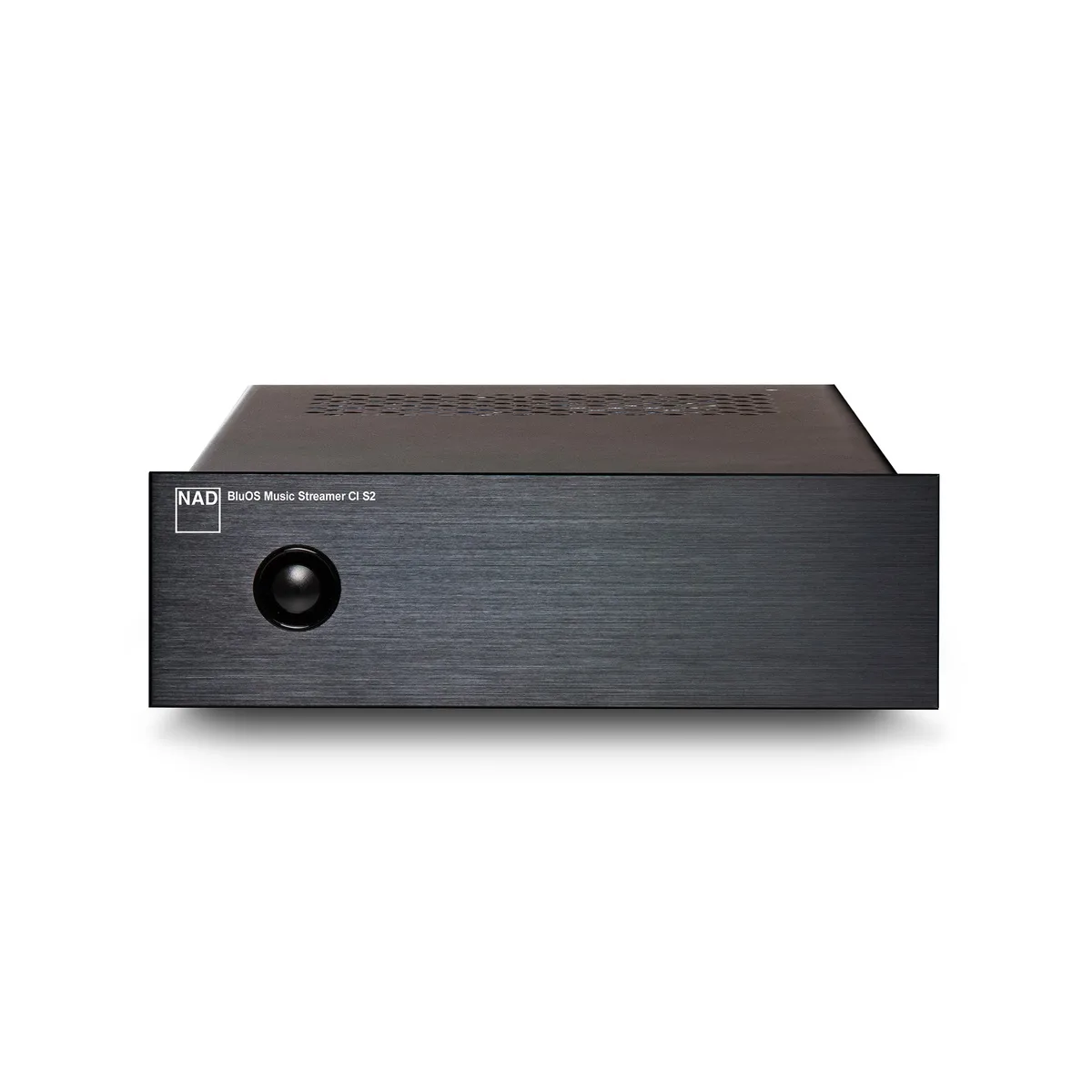

NAD CI S2 網路串流機
NAD CI S2 網路串流機 · CI S2 · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
詢價型號
NAD CI S2 https://maxaudio1689.com/shop/audio/nad-ci-s2-2-zone-bluos-network-music-player-e3cc6ea3e52d
產品規格
- Supported Audio File Formats
- MP3, AAC, WMA, WMA-L, OGG, OPUS
- Supported High Quality Audio File Formats
- FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
- Supported Multi Channel Audio Formats
- Dolby Digital® Downmixing to stereo PCM
- Native Sampling Rates
- up to 192 KHz
- Bit Depth
- 16-24
- 數位類比轉換器
- ESS Sabre 9039Q2M
- Audio Controls & EQ
- BluOS Control App
- Signal to Noise Ratio
- -120dBA
- Distortion
- THD+N, 0.0008%
- Operating System
- BluOS
- App Controller Operating System
- iOS, Android, Windows, macOS
- Processor
- ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Supported Network File Sharing
- Server Messsage Block (SMB) up to 200,000 files
- Album Art Supported
- JPG, PNG
- Music Services & Internet Radio
- 23+
- 3rd Party Integrations
- AirPlay 2, Spotify Connect, Tidal Connect
- Room Correction Software
- No
- Control System Integrations
- Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
- Voice Control Integrations
- Amazon Alexa Skills
- Power Supply
- 12v, 1.25a DC Universal Power Supply
- PoE
- Yes (PoE can be used instead of supplied DC PSU)
- Ethernet/LAN
- Ethernet RJ45, Gigabit 1000Mbps
- Wi Fi Built In
- No
- 藍牙
- No
- IR Optical Built In
- No
- IR Input
- 2-pin PHX connector (IR extender kit required)

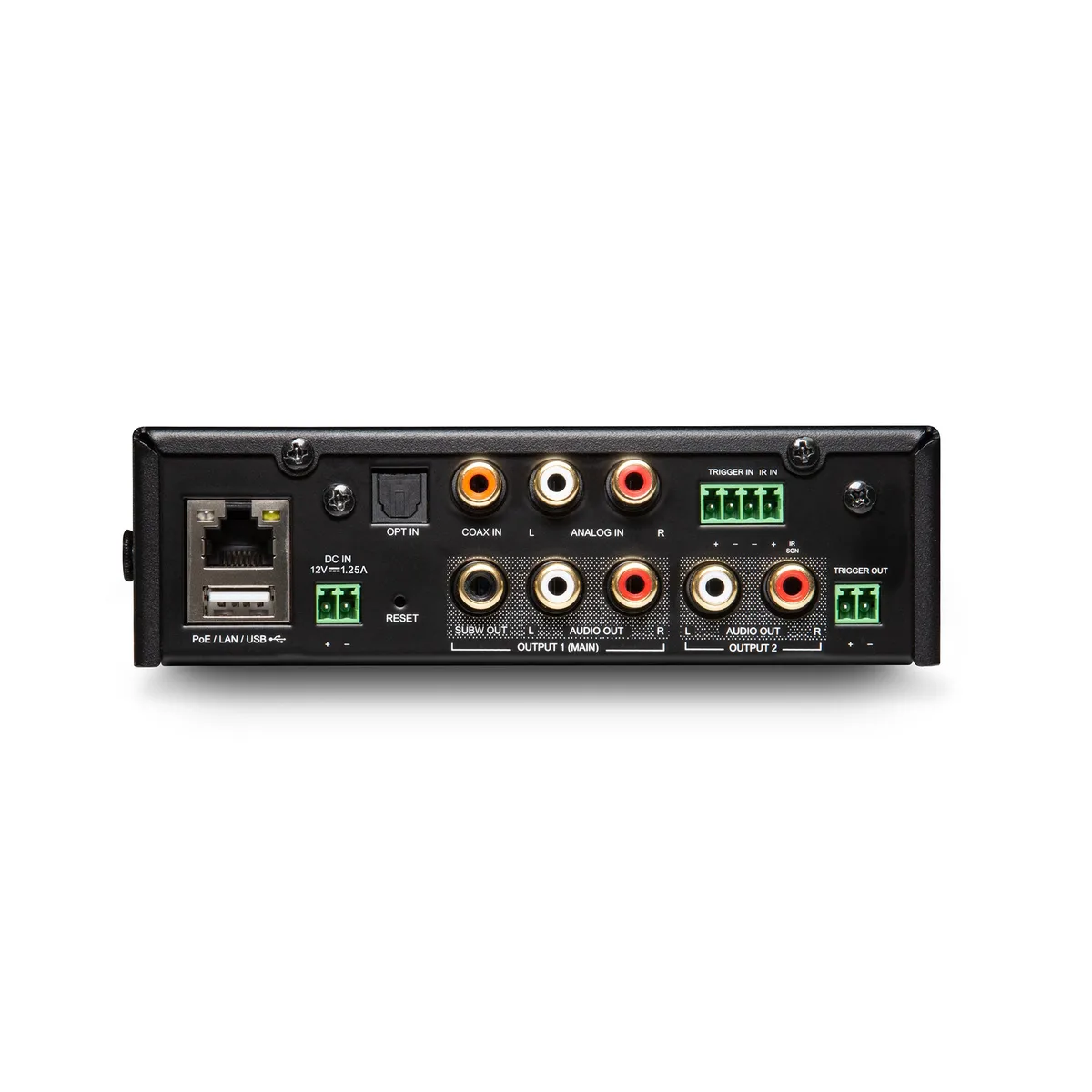

- Inputs
- Toslink Optical, Digital Coax, Stereo RCA (Zone 1 Only)
- HDMI Input
- No
- USB In
- Type A (Fat32, NTFS Formatted) - External Storage Only Local Server Mode
- Dual RCA Outputs
- Yes
- Main Zone/Sub Zone Capability
- Yes (independent volume control over Speaker Output 2 when activated)
- Subwoofer Output
- RCA x 1 (Zone 1 Only)
- Headphone Output
- None
- 12v Trigger Input
- x1 Configurable Smart Trigger Input
- 12v Trigger Output
- Yes (PHX connector)
- Status Indicator
- BluOS Status LED
- Source Status Indicator
- No
- Output Status Indicator
- No
- Finish
- Black
- Max Power Consumption
- 15w
- Storage Environment
- -10°C to 50°C, 20% to 80% relative humidity
- Operating Environment
- 0°C to 40°C
- SKU/Version
- S1
- Generation
- 1
- Product Dimensions
- 146.5 x 44 x 238 mm (5.77 x 1.73 x 9.4 inches)
- Product Weight
- 1.21 kg (2.66 lbs)
- Dimensions (Shipping, Single Unit)
- 366 x 228 x 140 mm (14.4 x 8.97 x 5.51 inches)
- Weight (Shipping, Single Unit)
- 2.2 kg (4.85 lbs)
- Dimensions (Shipping, Masterpack)
- 470 x 386 x 444 mm (18.5 x 15.2 x 17.5 inches)
- Weight (Shipping, Masterpack)
- 23.3 kg
- Units per Carton
- 6
- Power Adaptor
- Universal 12V DC Power Adaptor
- Rack Ears / Wall Mount Brackets
- 2 x Short rack ears (also used as wall mount brackets)
- Long Rack Ears / Blanking Plates
- 2 x Long rack ears/blanking plates
- ChassisLink Hardware
- 2 x Shoulder Bolts + 2 x Rubber Washers (already attached for ChassisLink)
- 12V Trigger In + IR Connector
- 1 x 4-PIN PHX Connector for 12V Trigger In + IR
- 12V Trigger Out and DC Power Connectors
- 2 x 2-Pin PHX Connectors for 12V Trigger Out and DC Power In
- Rubber Feet
- 4 x optional stick-on rubber feet
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
