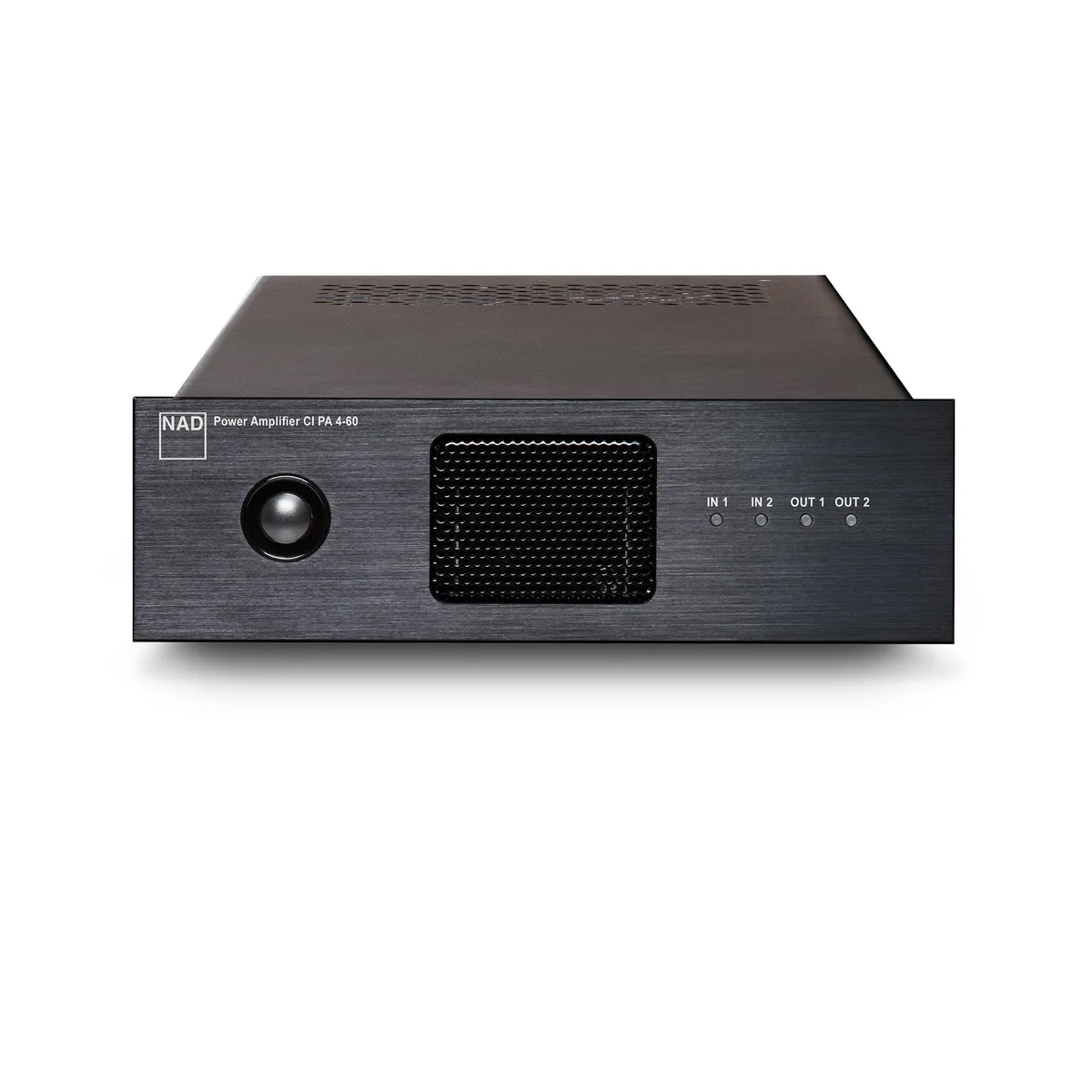

NAD CI PA4-60 後級擴大機

產品規格

Signal to Noise Ratio

-102dBA

Distortion

THD+N, 0.005%

Amplification

DirectDigital™

Rated Power Output

Dynamic Power Management - 120W x 2 or 60W x 4 (8 Ohms)

IHF Dynamic Power

300W (4ohm)/200w (8ohm)

Power Supply

Universal 2-pin AC cord input (100-240AC)

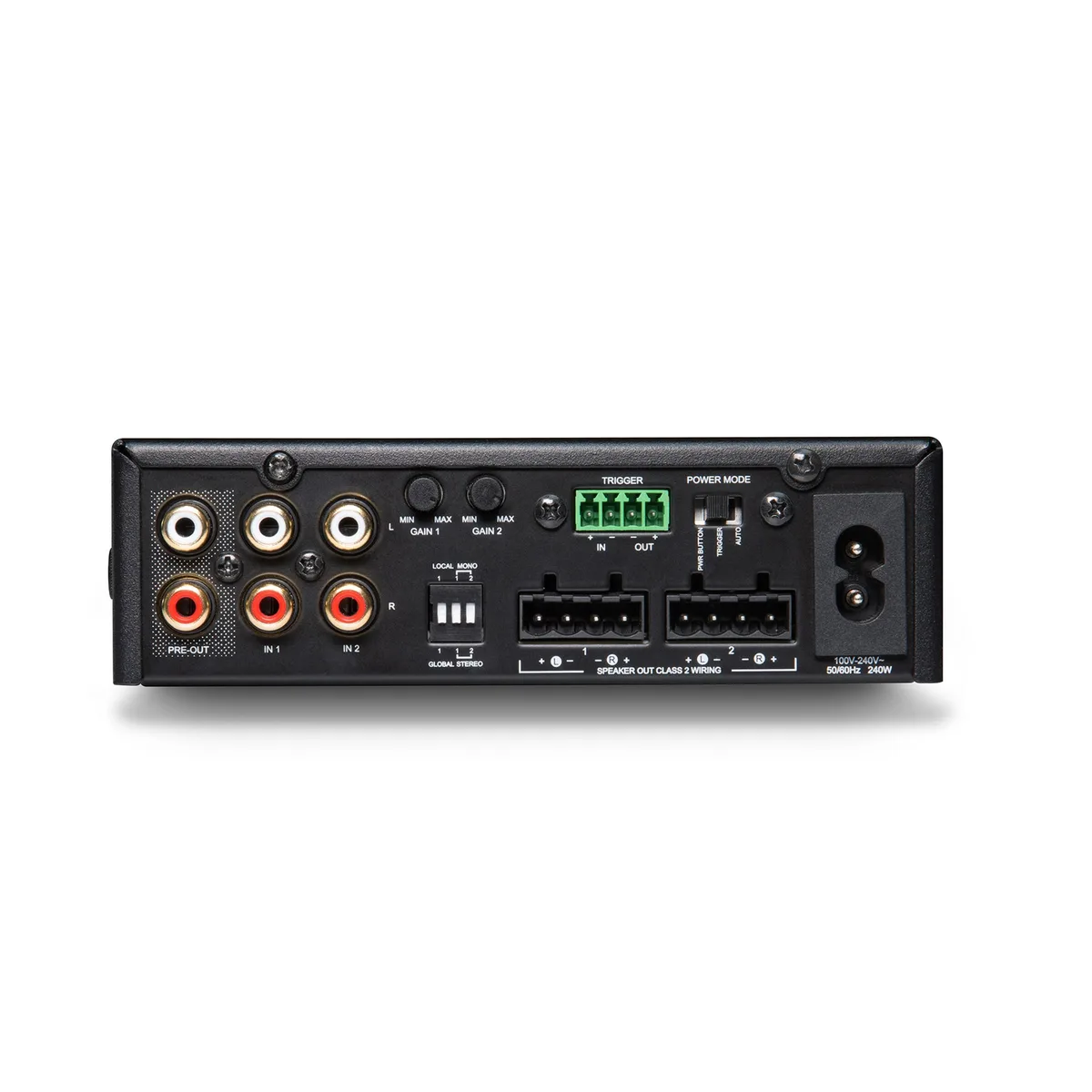

Inputs

2 x Stereo RCA

Outputs

1 x Stereo RCA Pre-Out, 2 x Speaker outputs

Speaker Terminals

2x 4-PIN Snap On PHX 5.08mm Connector (Supports up to 12 AWG)

12v Trigger Input

x1 (Unit Power On)

12v Trigger Output

x1

Input Gain Control

x2 Input Gain Potentiometers (-6 to +6 dB range)

Power Mode Control

3-way switch (Power Button, 12v Trigger, Signal Sense options)

Input Control

Input 1 Local/Global, x2 Input Stereo/Mono selection

Status Indicator

Power Status LED

Source Status Indicator

x2, Connected Input Active

Output Status Indicator

x2, Output pair 1, Output Pair 2 (Output active, Temperature/Protection warning)

Finish

Black

Included Accessories

120V AC Power Cord

Max Power Consumption

TBD

Storage Environment

-10°C to 50°C, 20% to 80% relative humidity

Operating Environment

0°C to 40°C

Dimensions (Product)

(WxHxD metric) 146.5 x 44 x 384 mm

Weight (excluding rack ears & connectors)

2.35 kg/5.18 lbs

Dimensions (Shipping, Single Unit)

(LxWxH metric) 520 x 228 x 140 mm

Weight

3.35 kg/7.4 lbs

Dimensions (Shipping, Masterpack)

Units per carton: 6

GS1/UPC/EAN Codes

Black

SKU/Version

PA4-60

Generation

1
