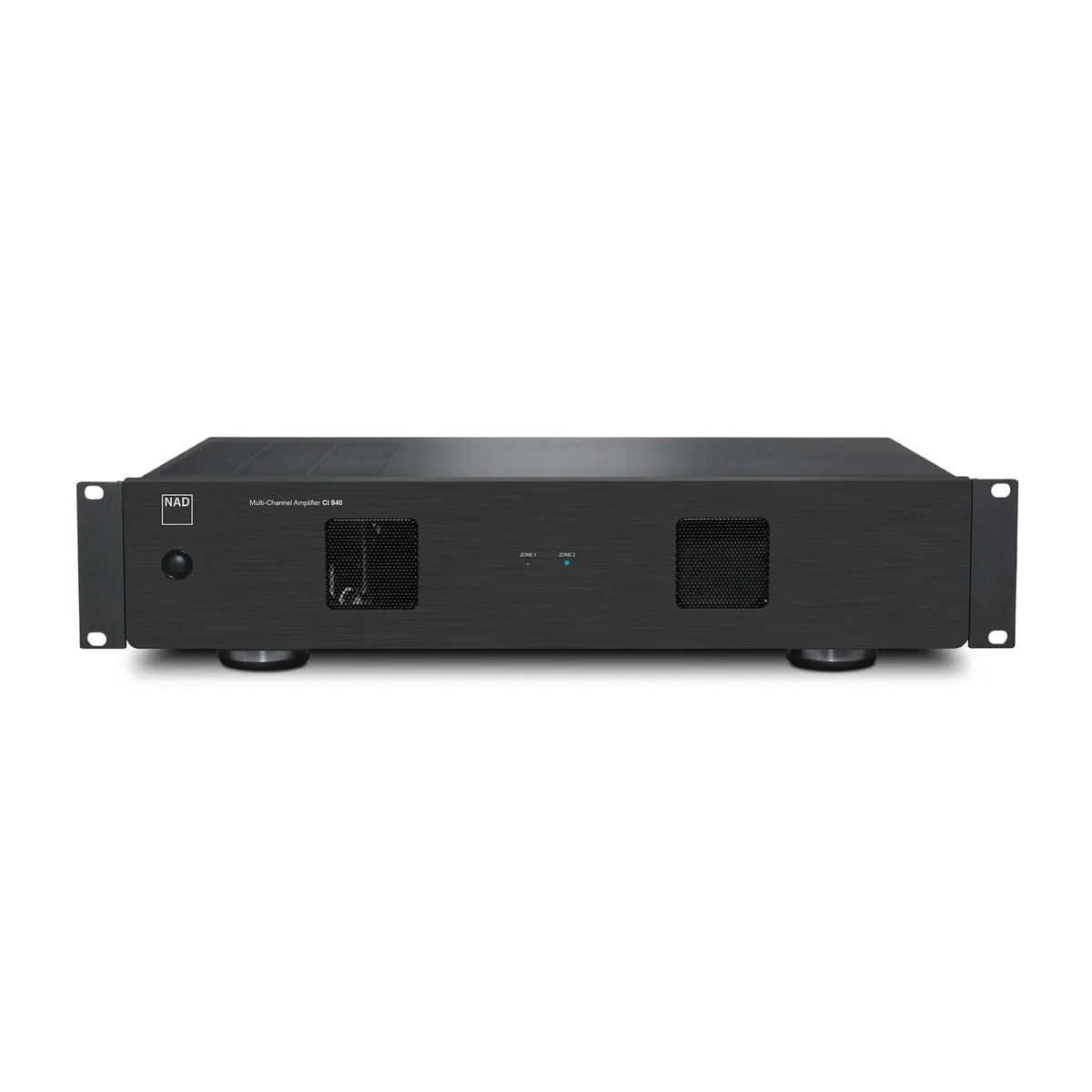

NAD CI 940

產品規格

Compact 2U rack height with rack ears

Phoenix speaker connection blocks

Detachable power cable for easy service and upgrades

Indicator lamps for each zone that show protection status and amplifier clipping

8 Ohms/4 Ohms

4 x 35W (ref. rated THD, 20Hz-20Hz, all channels driven)

8 Ohms Bridge Mode

2 x 70W (ref. 20Hz-20kHz)

8 Ohms

55W

4 Ohms

85W

2 Ohms

95W

Damping Factor

>180 (ref. 8 Ohms, 50Hz and 1kHz)

Input Sensitivity

270mV (ref. rated power)

Voltage Gain

35dB

Frequency Response

ref. 20Hz-20kHz ±0.2dB -3dB at 3Hz and 100kHz

Signal/Noise Ratio, A Weighted

>95dB (ref. 1W) >110dB (ref. 35W)

Minimum Input Signal to Trigger (auto sense mode)

>20mV

Rated Power

270W (120V 60Hz, 230V 50Hz)

Gross Dimensions* (W x H x D)

483 x 105 x 323mm (19 1/16 x 4 3/16 x 12 3/4”)**

Net Weight

6.96kg (15.35lb)

Shipping Weight

8.4kg (18.5lb)
