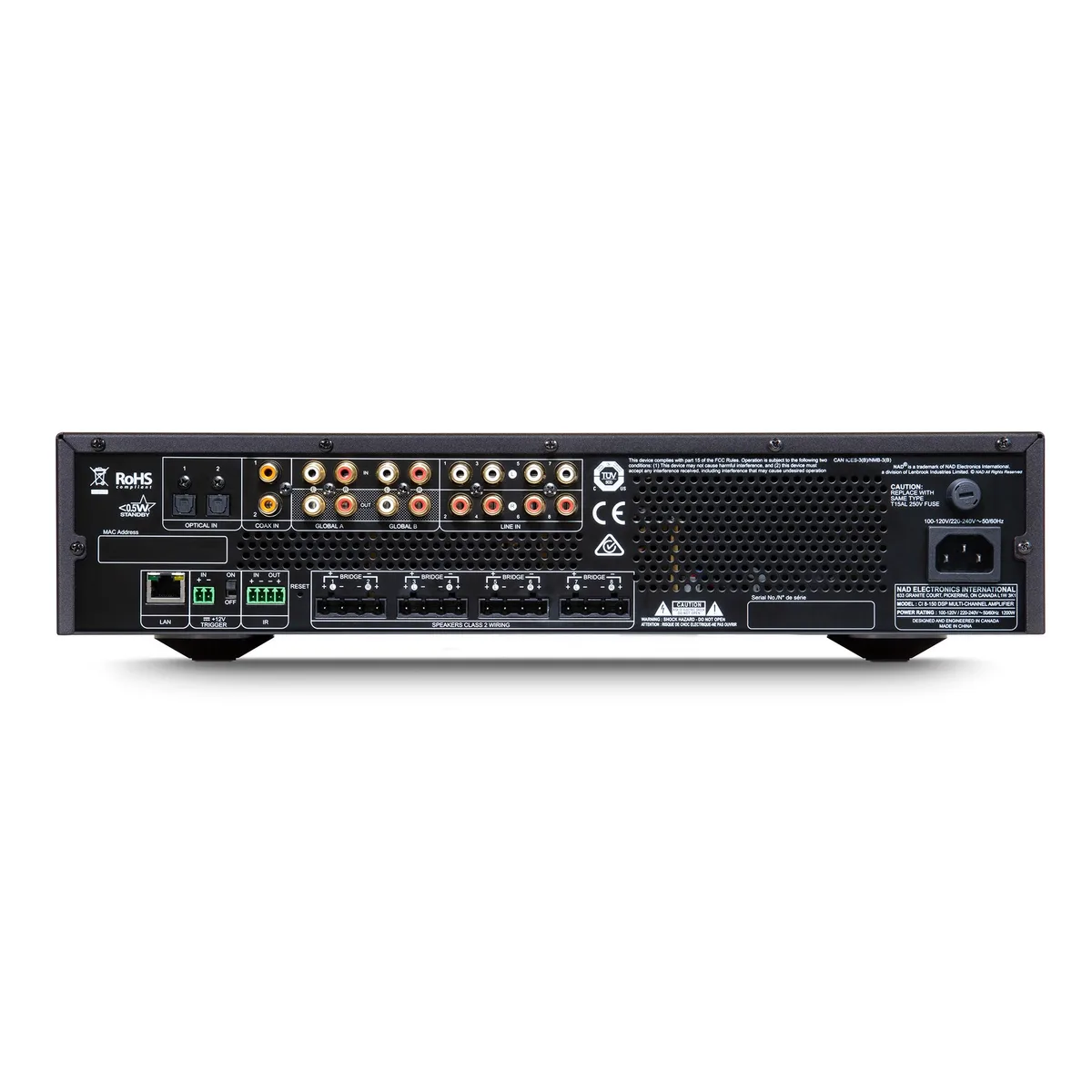

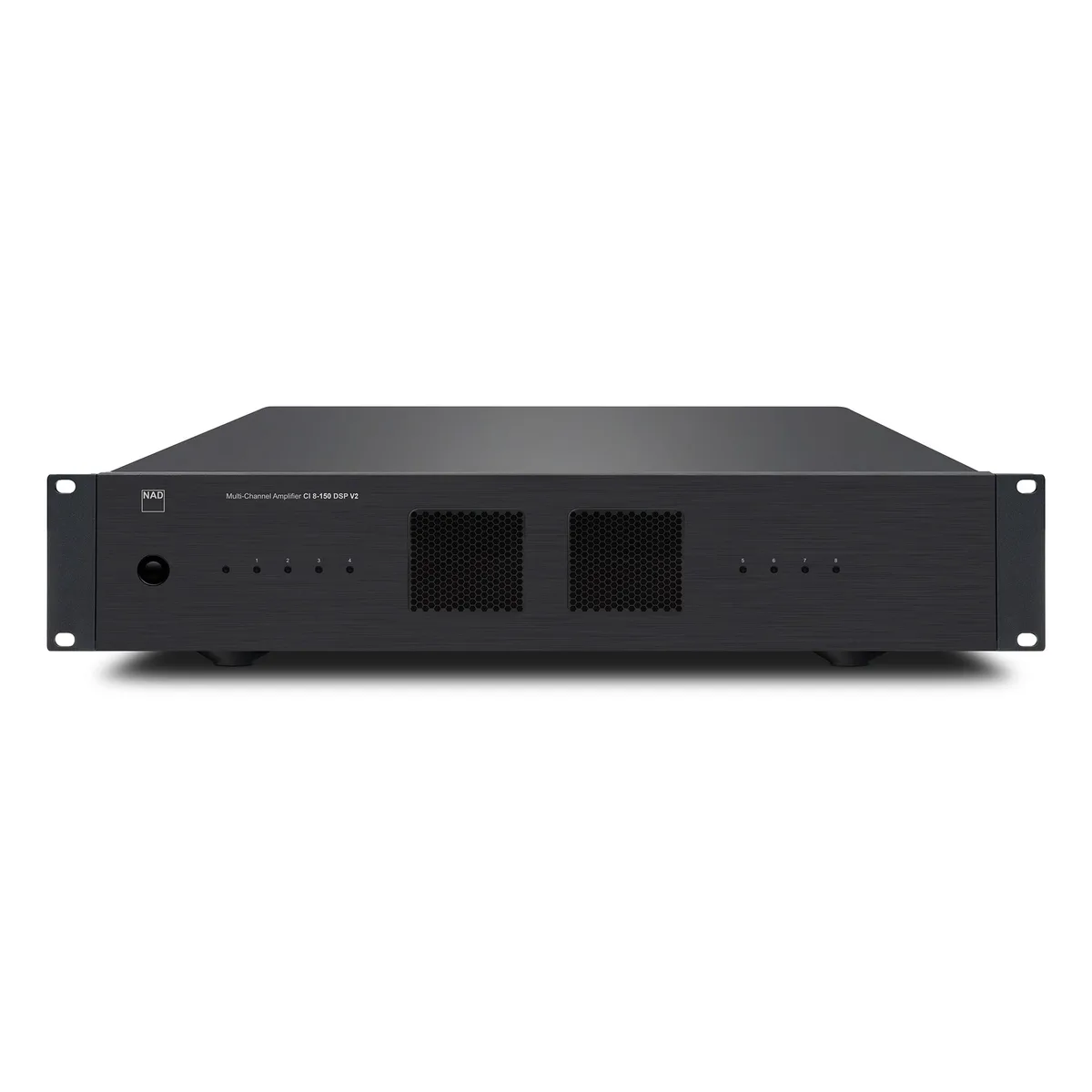

NAD CI 8-150 DSP v2 後級擴大機

產品規格

Continuous output power into 8 ohms

150 W (ref. 20 Hz-20 kHz at rated THD - all channels driven)

Continuous output power into 4 ohms

180 W (ref. 20 Hz-20 kHz at rated THD - all channels driven)

Continuous output power into 8 ohms at Bridged mode

280 W (ref. 20 Hz-20 kHz 0.02% THD - all channels driven)

THD (20 Hz - 20 kHz)

0.02% (1 W to 120 W, 8 ohms and 4 ohms)

Signal to Noise Ratio

90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

Clipping power (All channels driven)

160W(1kHz8ohms 0.1%THD)

Clipping power into 8 ohms at Bridged mode

300 W (1 kHz 0.1 % THD - all channels driven)

IHF Dynamic Power (all channels driven) 8 Ohms

180W

IHF Dynamic Power (all channels driven) 4 Ohms

280W

IHF Dynamic Power (two channels driven) 8 Ohms

200W

IHF Dynamic Power (two channels driven) 4 Ohms

360W

Peak output current

26A(1ohm,1ms)

Damping Factor

150 (ref. 8 ohms, 20 Hz to 6.5 kHz)

Frequency Response

±0.5dB(20Hz-20kHz)

Channel Seperation

75 dB (1 kHz)

Maximum undistorted input level

3300 mV

Input sensitivity (for 150 W in 8 ohms, maximum volume)

1450 mV

Analog Input audio sense threshold (one channel with signal)

3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)

Trigger IN level

3-30Vdc

Standby power

0.5 W

Gross dimensions (W x H x D)*

483x90x435mm

Shipping Weight

17.6 kg (38.8 lbs)
