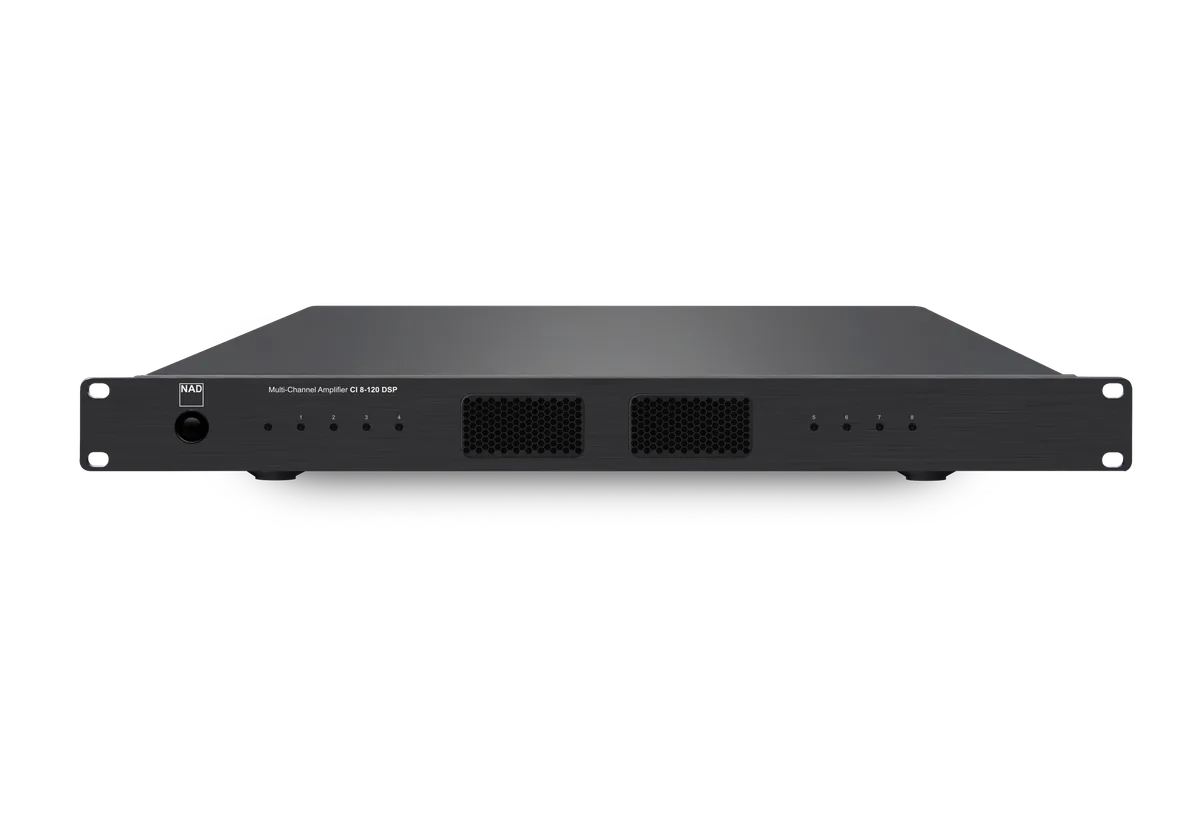

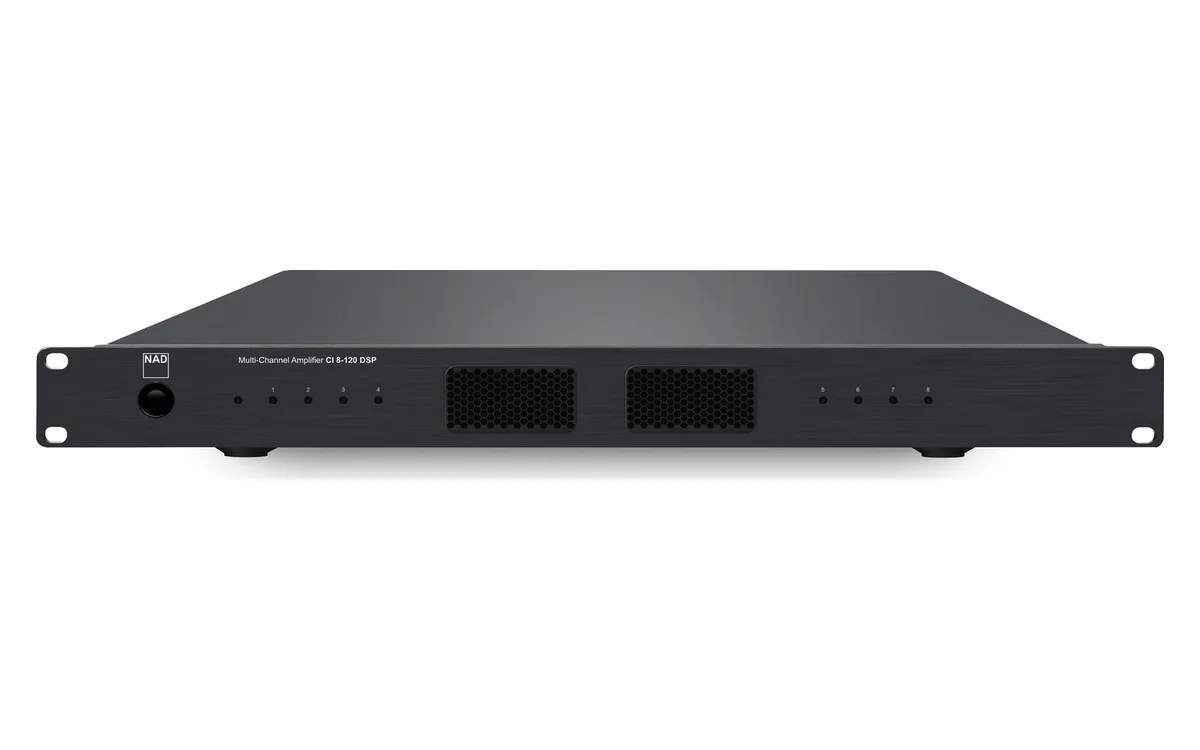

NAD CI 8-120 DSP

產品規格

Continuous Output Power into 8 Ohms

>120 W (all channels driven)

Continuous output power into 4 ohms

>135 W (all channels driven)

Continuous output power into 8 ohms at Bridged mode

>200 W (all channels driven)

Signal to Noise Ratio

>88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

Clipping power (all channels driven)

>130 W (1 kHz 8 ohms  0.1 % THD)

Clipping power into 8 ohms at Bridged mode

>300 W (1 kHz 0.1 % THD - all channels driven)

IHF dynamic power (all channels driven)

8 ohms:  125 W

IHF dynamic power (two channels driven)

8 ohms:  145 W

IHF dynamic power (Bridged mode, all channels driven)

8 ohms:  440 W

IHF dynamic power (Bridged mode, two channels driven)

8 ohms:  480 W

Peak output current

>20 A (1 ohm, 1 ms)

Damping Factor

>110 (ref. 8 ohms, 20 Hz to 6.5 kHz)

Frequency Response

±0.5 dB (20 Hz - 20 kHz)

Channel separation

>70 dB (1 kHz)

Maximum undistorted input level

2900 mV

Input sensitivity (for 120 W in 8 ohms, maximum volume)

1150 mV

Trigger IN level

3 - 30 Vdc

Standby power

0.5W

Dimensions (W x H x D)*

483 x 45 x 435 mm (19 1/16 x 1 13/16 x 17 3/16”)

Shipping Weight

10 kg (22 lbs)
