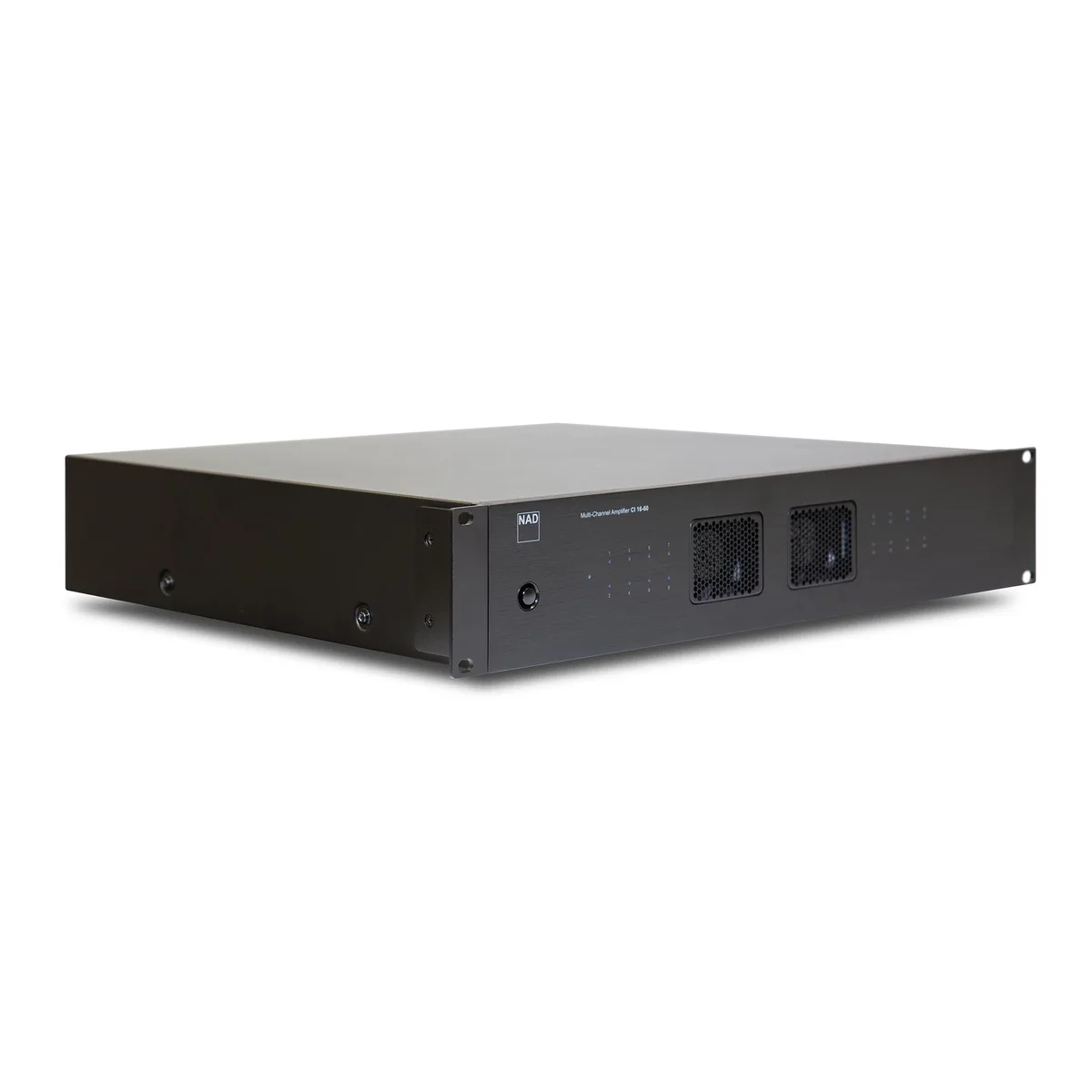

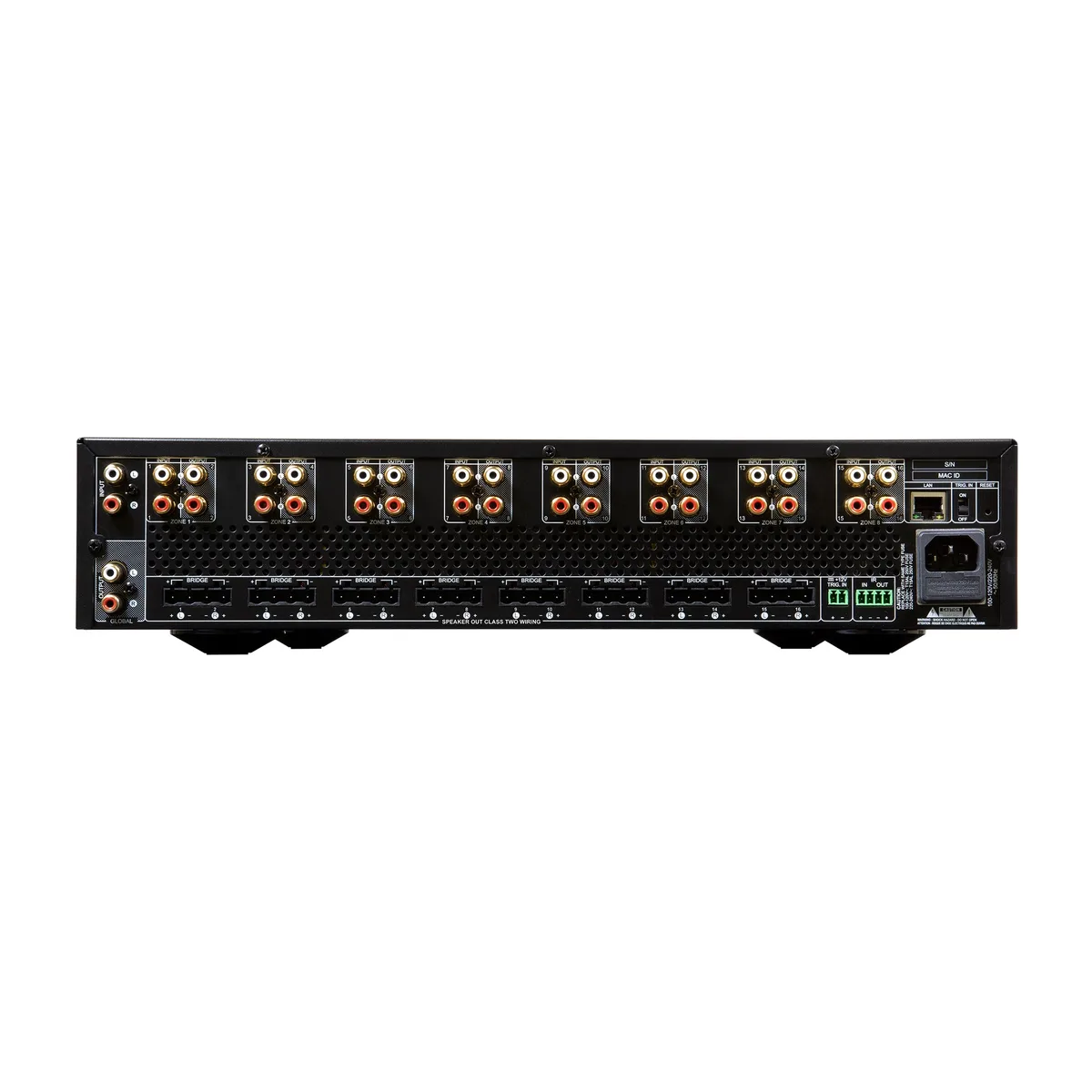

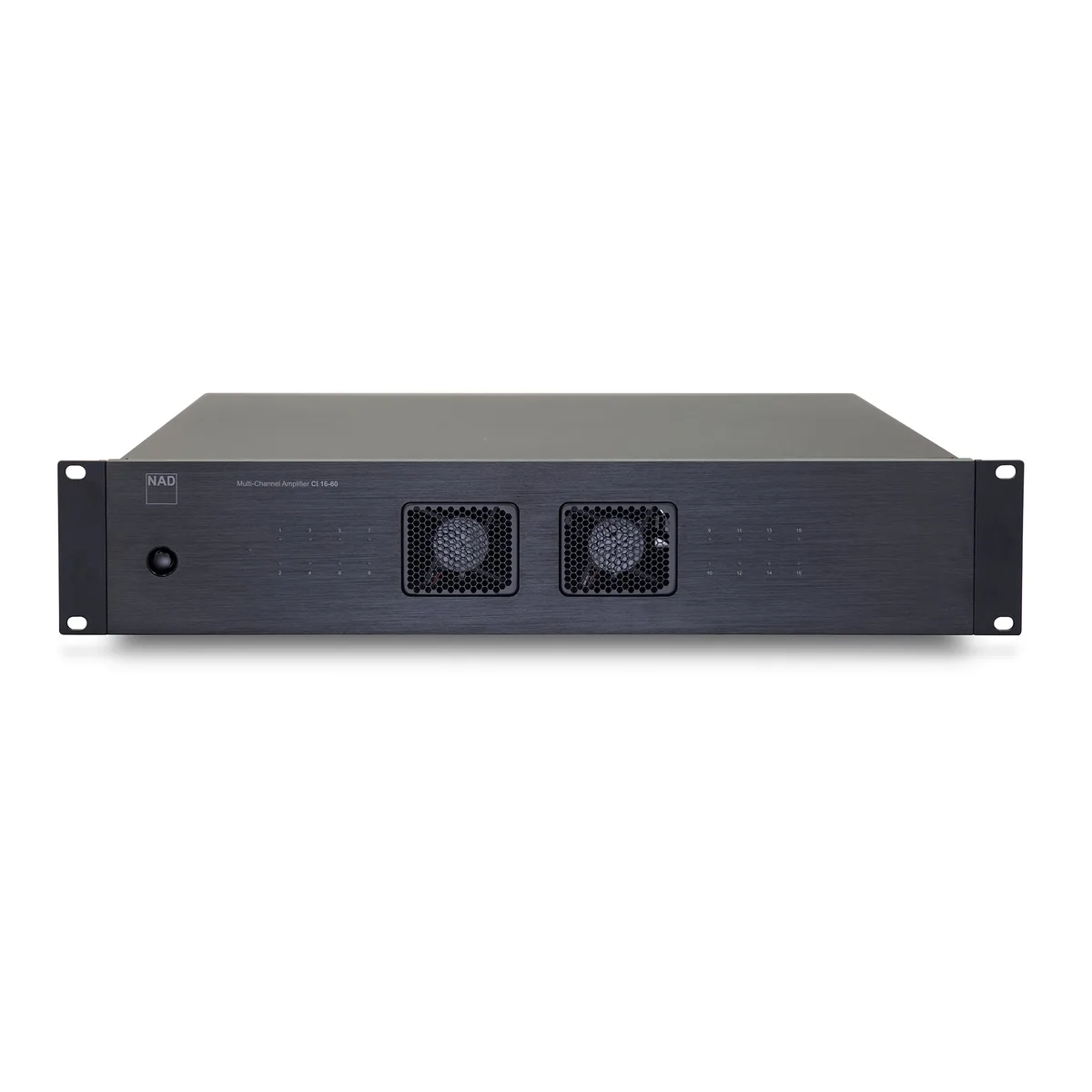

NAD CI 16-60 DSP

產品規格

Continuous output power into 8 ohms

60 W (all channels driven, 1kHz 0.05% THD

into 4 ohms

65 W (all channels driven, 1kHz 0.05% THD

Continuous output power into 8 ohms at Bridged mode

140 W (all channels driven, 1kHz 0.05% THD

THD (1 W to 50 W, 8 ohms and 4 ohms)

0.05 % (20 Hz - 3 kHz)

Signal to Noise Ratio

80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

Clipping power (all channels driven)

60 W (1 kHz 8 ohms 1 % THD)

Clipping power into 8 ohms at Bridged mode

150 W (1 kHz 1 % THD - all channels driven)

IHF Dynamic Power (all channels driven)

8 ohms: 65 W

IHF Dynamic Power (two channels driven)

8 ohms: 70 W

IHF dynamic power (Bridged mode, all channels driven)

8 ohms: 270 W

Peak output current

15 A (1 ohm, 1 ms)

Damping factor

110 (20 Hz to 1 kHz 8 ohms)

Frequency response

±1dB (20 Hz - 20 kHz)

Channel separation

60 dB (1 kHz)

Maximum undistorted input level

2900 mV

Input sensitivity (for 50 W in 8 ohms, maximum volume)

760 mV

Input impedance

20 kohms//220pF

Analog input audio sense threshold (one channel with signal)

3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)

Trigger IN level

3 - 30 Vdc

Standby power

0.5W

Gross dimensions (W x H x D)*

483x100x435mm

Net Weight

10.3 kg (22.7 lbs)

Shipping Weight

12.8 kg (28.2 lbs)
