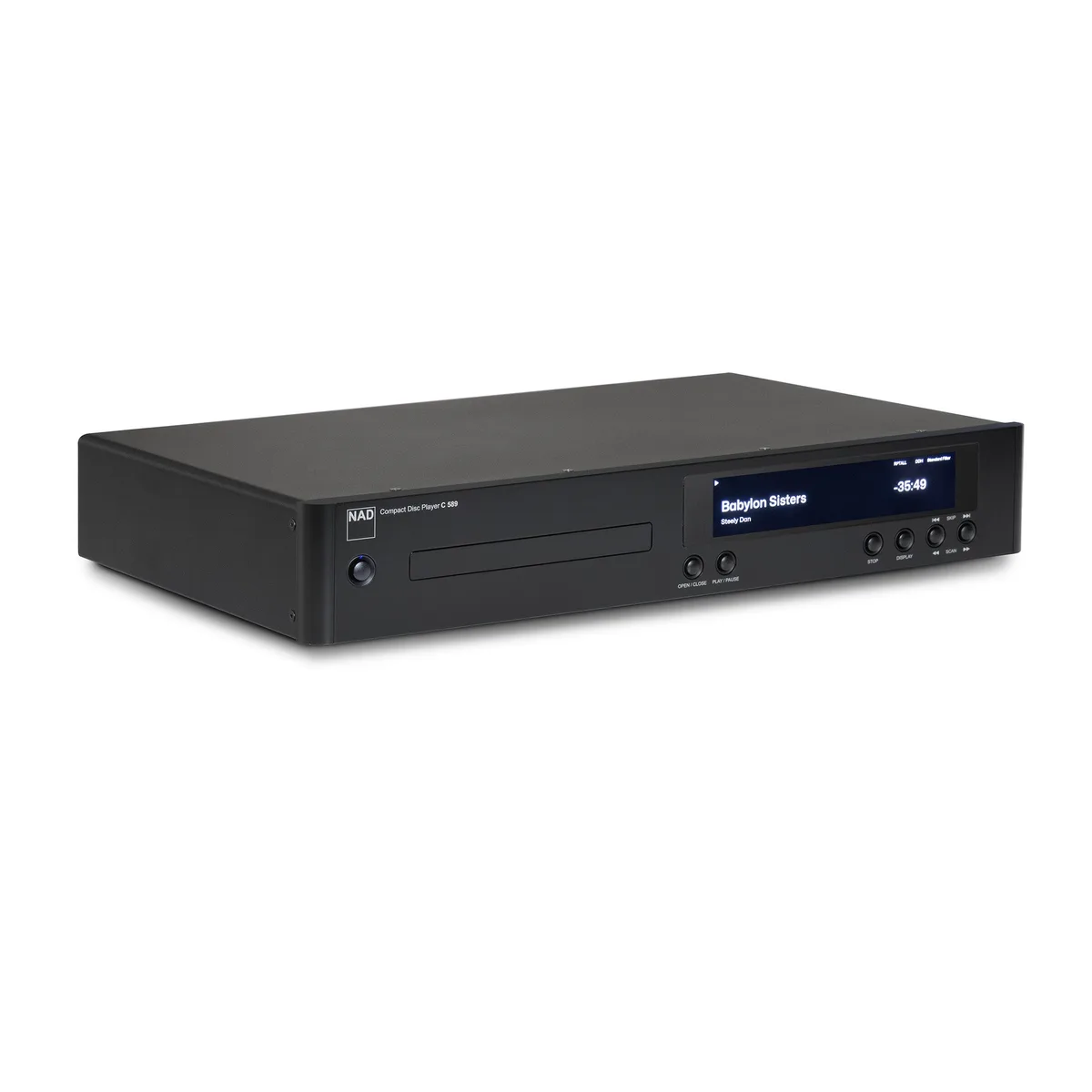

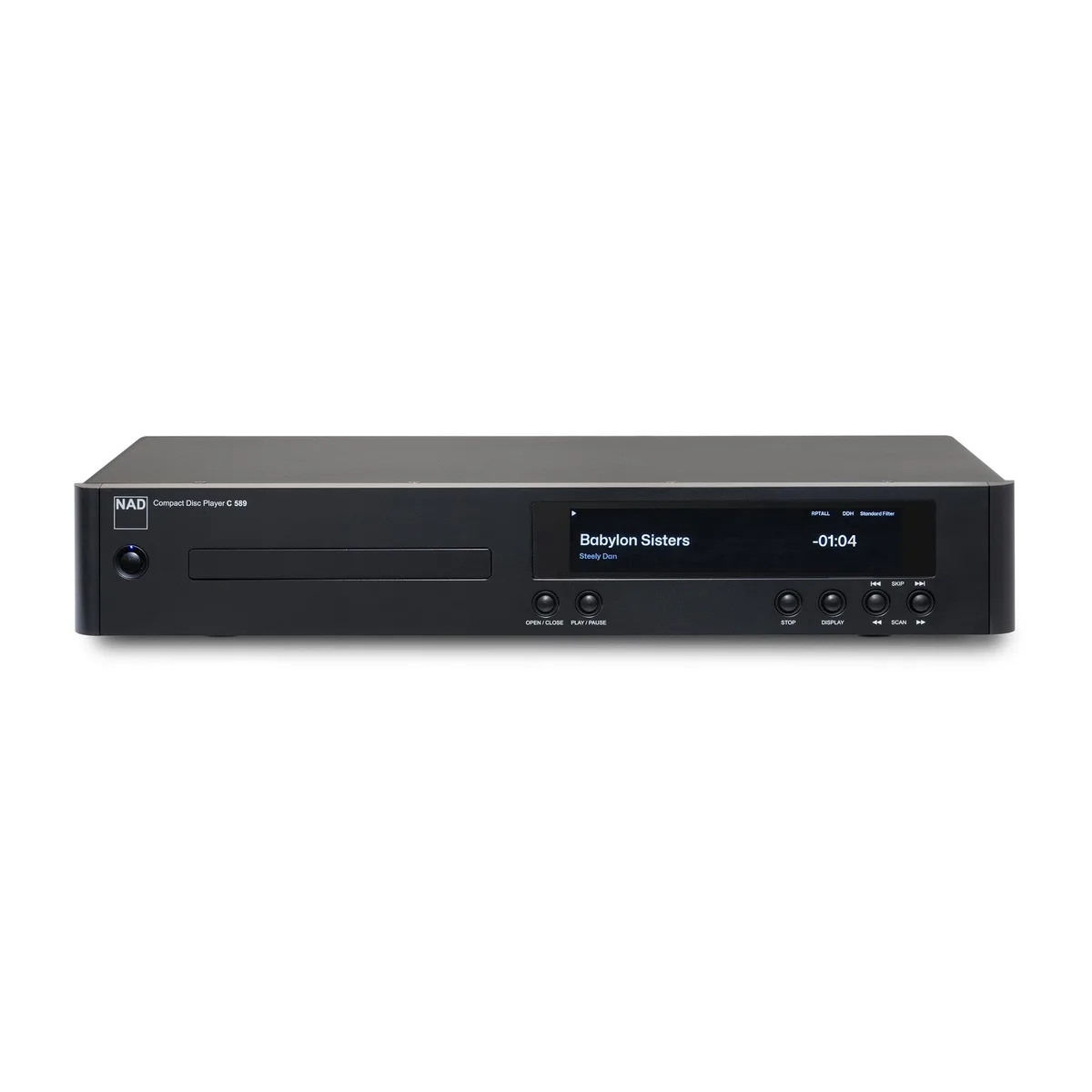

NAD C 589 播放機

產品規格

Output level

Line Out: 2.2 ±0.1V Balanced: 4.4 ±0.2V Digital Audio Out - Balanced: 2 - 3 Vp-p 110 ohms Digital Audio Out - Coaxial: 0.5 - 0.8 Vp-p 75 ohms

Frequency response

20 Hz - 20 kHz (±0.3 dB)

Total harmonic distortion

≤ 0.005% (1kHz, LPF 20kHz)

Signal/Noise ratio

≥ 115 dB (1 kHz, A-weighted LPF 20 kHz Play)

Channel balance

0.3 dB (0 dB 1 kHz)

Channel separation

≥ 110 dB

De emphasis

-3.73 to -5.33 dB (0 dB 1kHz, 5 kHz) -8.04 to -10.04 dB (0 dB 1 kHz, 16 kHz)

Linearity

-3 ±0.1 dB (0 dB 1 kHz at -3 dB) -6 ±0.2 dB (0 dB 1 kHz at -6 dB) -10 ±0.25 dB (0 dB 1 kHz at -10 dB) -20 ±0.25 dB (0dB 1 kHz at -20 dB) -60 ±0.5 dB (0dB 1 kHz at -60 dB)

Idle power

≤ 20 W

Gross Unit Dimensions* (W x H x D)

435 x 83 x 294 mm 17 1/4 x 3 3/8 x 11 5/8 inches

Net weight

5.1 kg (11.2 lbs)

Shipping weight

6.6 kg (14.6 lbs)
