NAD

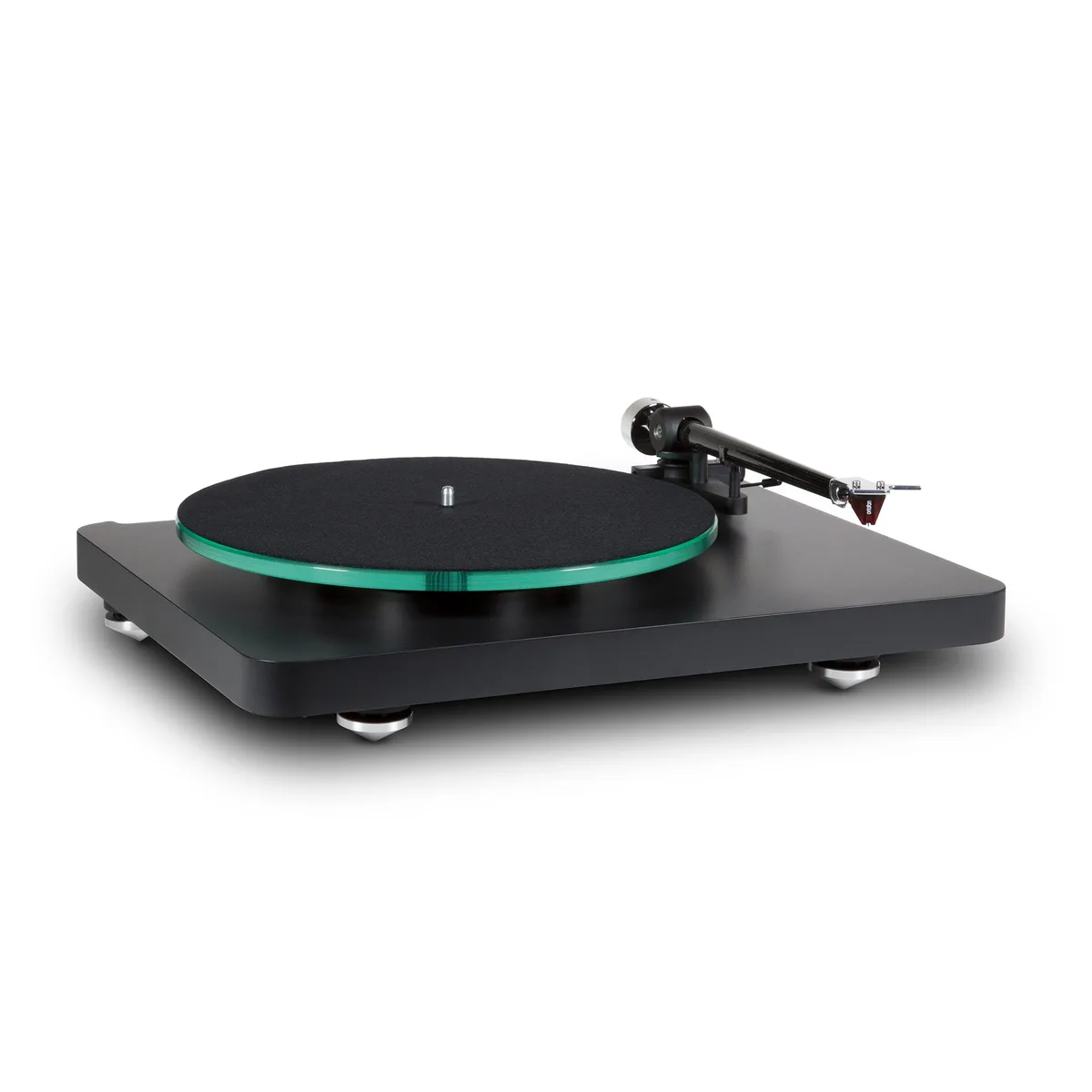

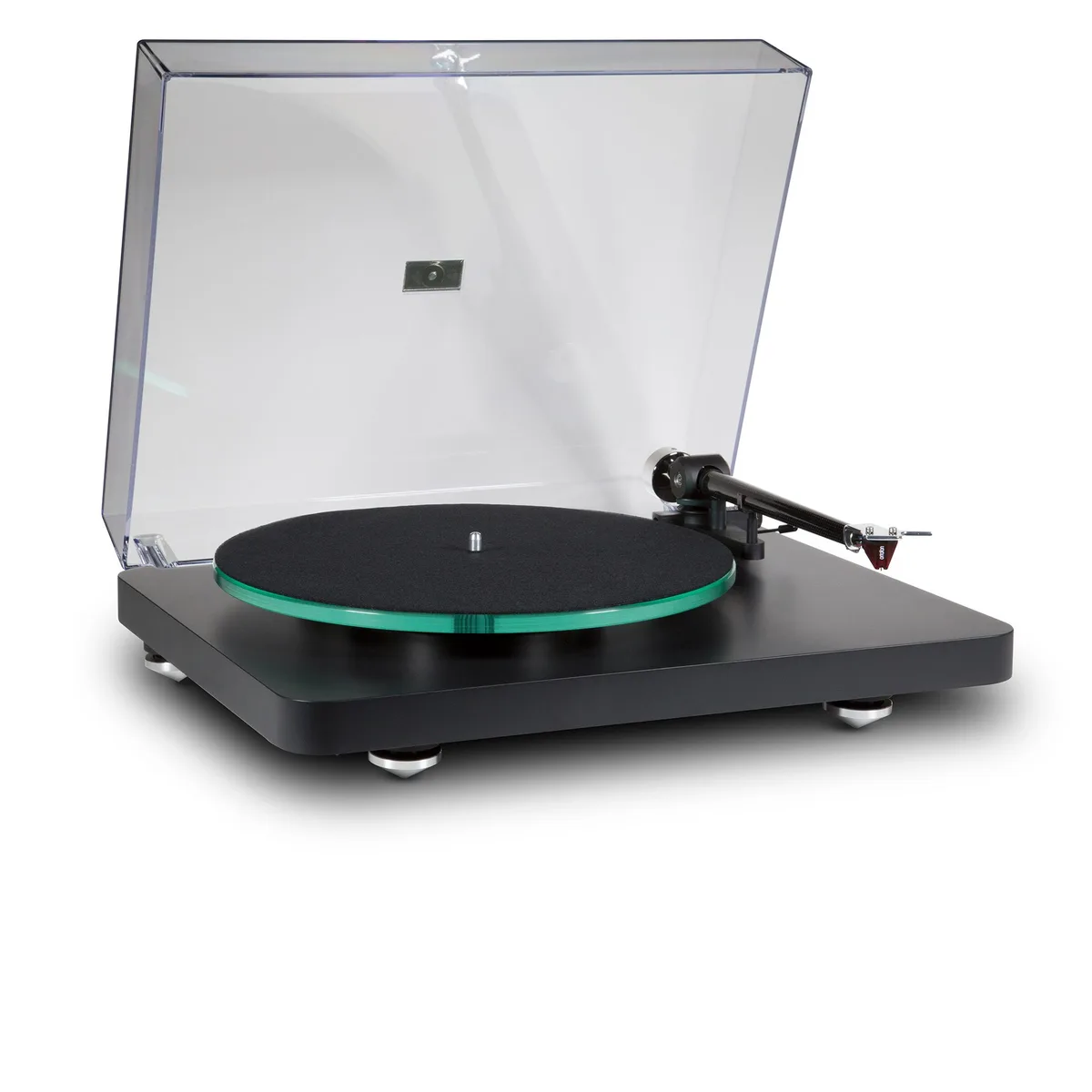

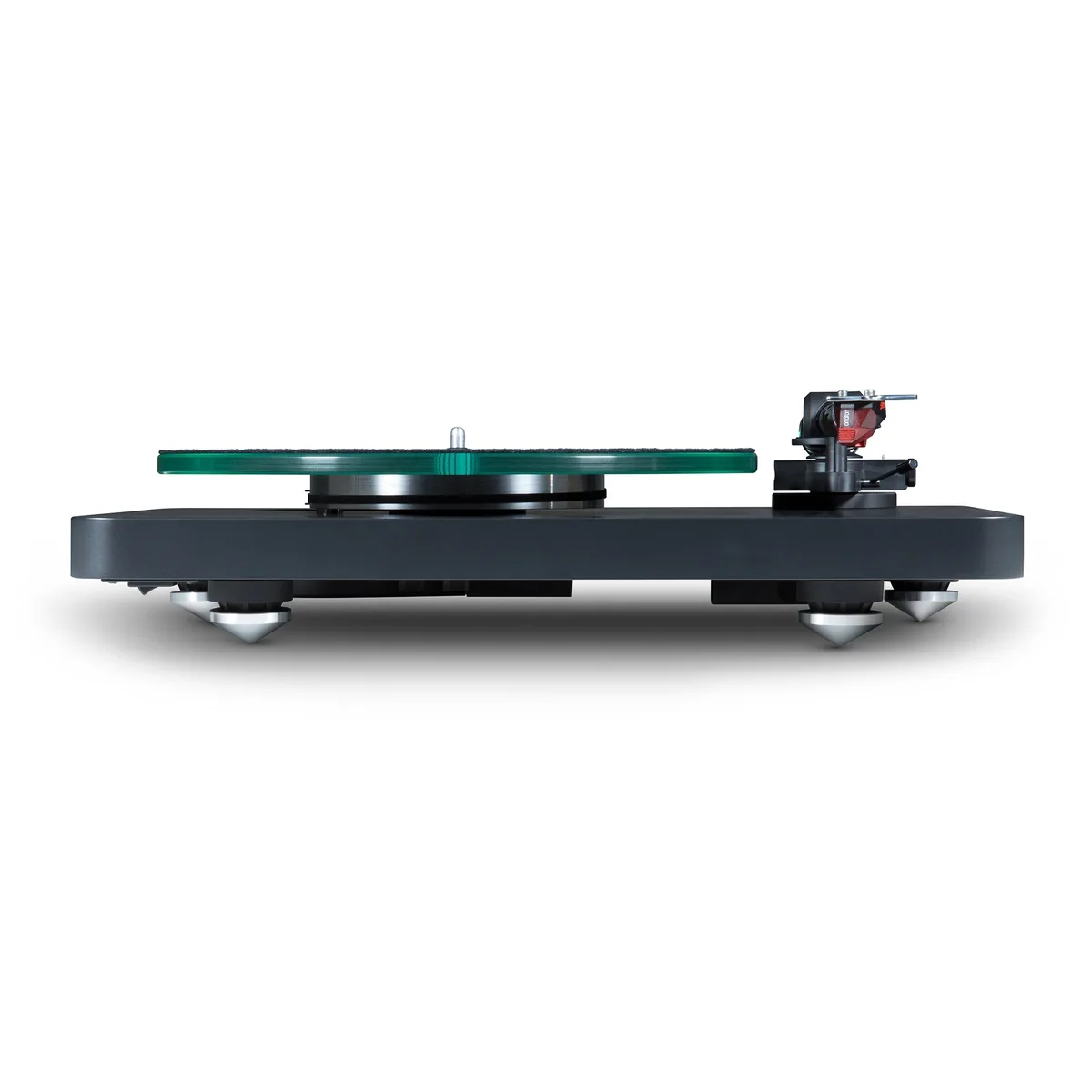

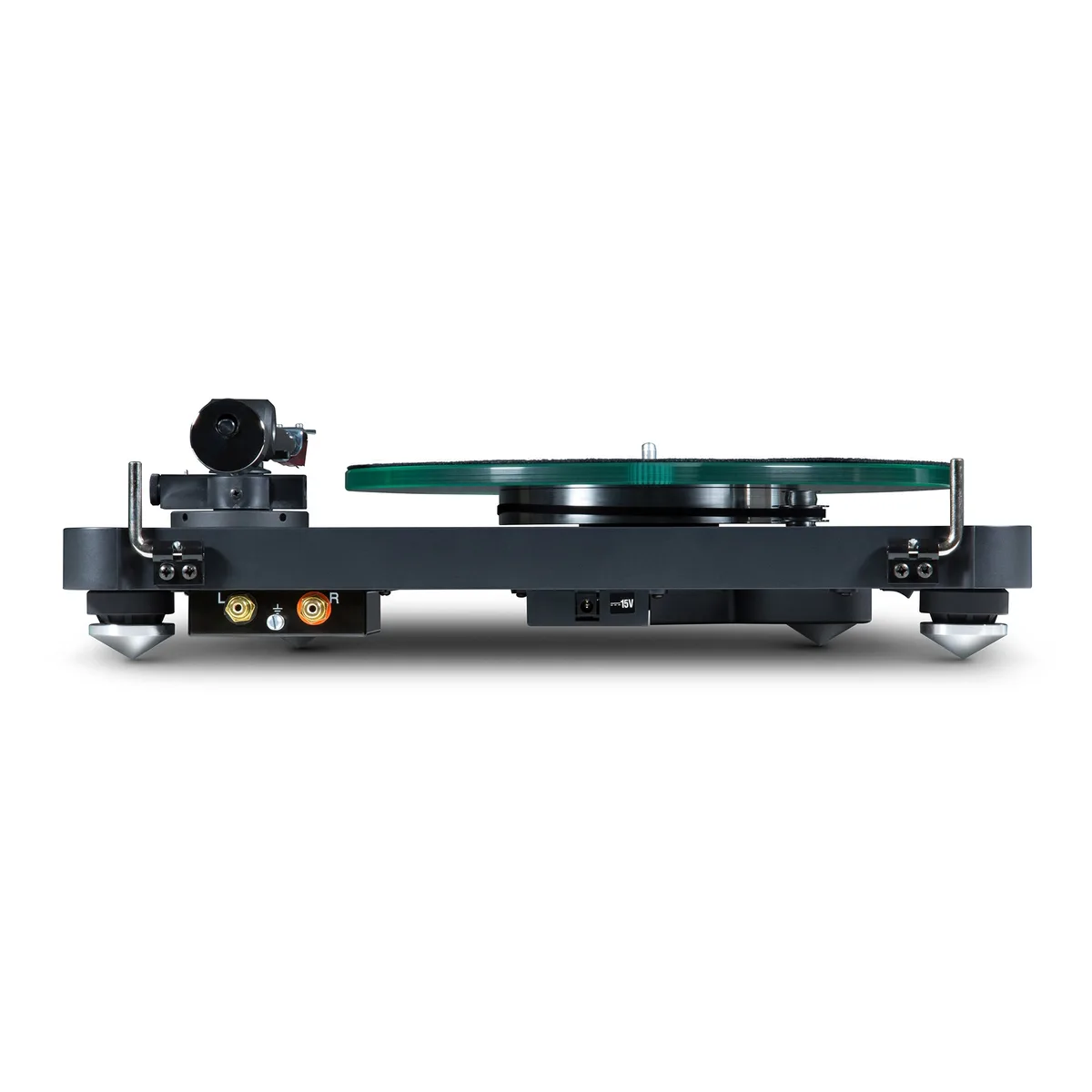

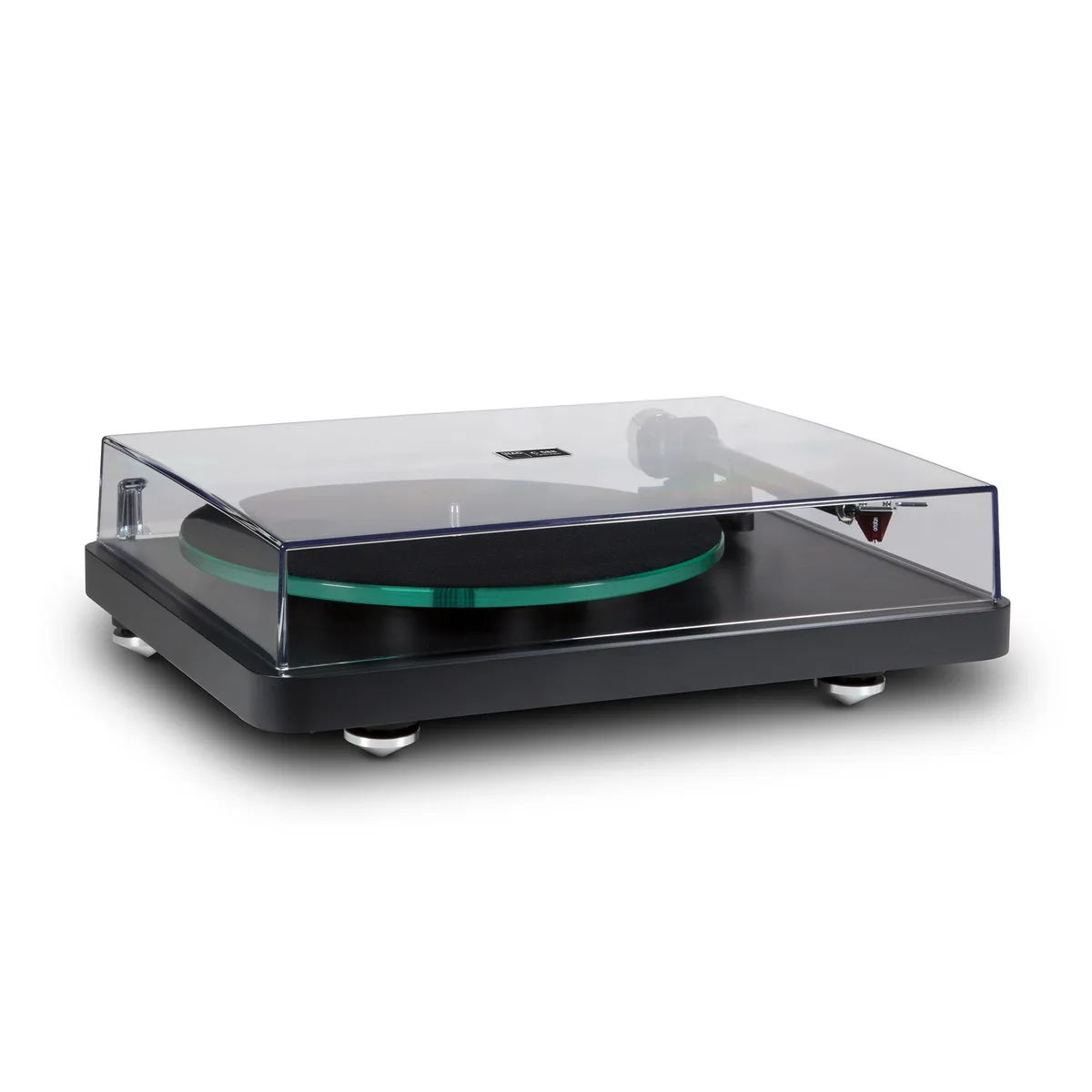

NAD C 588 黑膠唱盤
NAD C 588 黑膠唱盤 · C 588 · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
產品規格
- Nominal speed
- 33/45 rpm, manual speed change (78 rpm possible with special pulley
- Speed variance
- 33 rpm:
- Signal/Noise ratio
- - 70 dB
- Downforce range
- 0 - 30 mN 0 - 3.0 grams
- Supplied counterweight system
- 95dB
- Voltage
- Universal switch mode power supply 15 V DC/0,8 A, 100-240 V AC, 47 - 63Hz
- Power consumption
- 5 W max/ 0.3W standby
- Effective tonearm mass
- 9.5 g
- Effective tonearm length
- 230 mm
- Overhang
- 18 mm
- Frequency range
- 20-22.000Hz
- Channel separation
- 22dB/1kHz
- Output voltage
- 5.5 mV
- Recommended load impedance
- 47 kohms/Amplifier connection: MM-input
- Compliance/stylus type
- 20μm/mN - elliptical
- Recommended tracking force
- 18 mN
- Weight
- 7.2g
- Gross Dimensions (W x H X D)
- 17 1/8 x 13 7/16 x 4 15/16” (435 x 340 x 125mm)
- Shipping Weight
- 9.2 kg(20.3 lbs)
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
