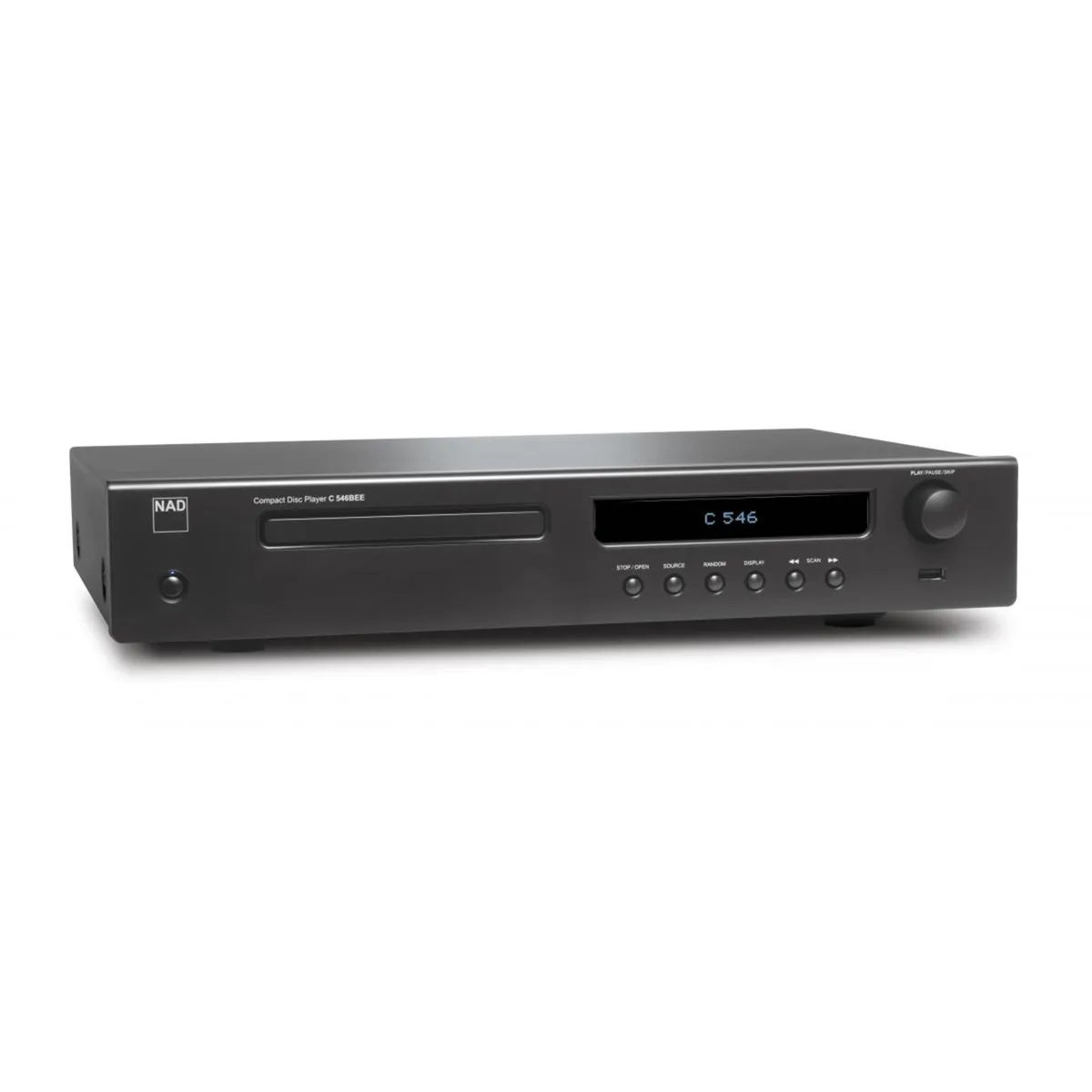

NAD C 546BEE 播放機

產品規格

CD, CD R and CD RW Compatible

USB Input supports external memory and audio rates up to 384kbps

MP3 and WMA decoding

NAD CD-9 Remote Control

Wolfson 24 bit Digital to Analogue Converter

Coaxial/Optical Digital Output

Low Output Impedance

Toroid Power supply with Separate Power Regulators for Analogue and Digital Sections

VFL Display with CD text

Selectable Track, Time and Repeat

Repeat Mode for Single Track or Entire CD

Program Play up to 20 Tracks

Random Play

External IR Input

Analogue

2.2 ±0.2V

Optical

-22.5 ±3.5dBm

Coaxial

650 ±150mV

Frequency Response

±0.3dB (ref. 0dB 20Hz-1kHz ±0.5dB (ref. 0dB 5Hz-20kHz

Total Harmonic Distortion

0.01% (ref. 1kHz, Audio LPF)

Signal/Noise Ratio

118dB (ref. 1kHz, A-weighted LPF Stop, Pause)

Channel Balance

±0.5dB (ref. 0dB 1kHz)

Dynamic Range

95dB

Channel Separation

>90dB

De emphasis

-3.73 to -5.336dB (ref.0dB 1kHz, 5kHz) -8.04 to -10.04dB (ref. 0dB 1kHz, 16kHz)

Linearity

±0.01dB (ref. 0dB 1kHz at -3dB) ±0.02dB (ref. 0dB 1kHz at -6dB) ±0.02dB (ref. 0dB 1kHz at -10dB) ±0.05dB (ref. 0dB 1kHz at -20dB) ±0.15dB (ref. 0dB 1kHz at -60dB)

Output level

2.2 ±0.2V

Idle Power

9W

Gross Unit Dimensions* (WxHxD)

435 x 89 x 306mm

Net Weight

4.9kg (10.8lb)

Shipping Weight

6.3kg (13.9lb)
