NAD

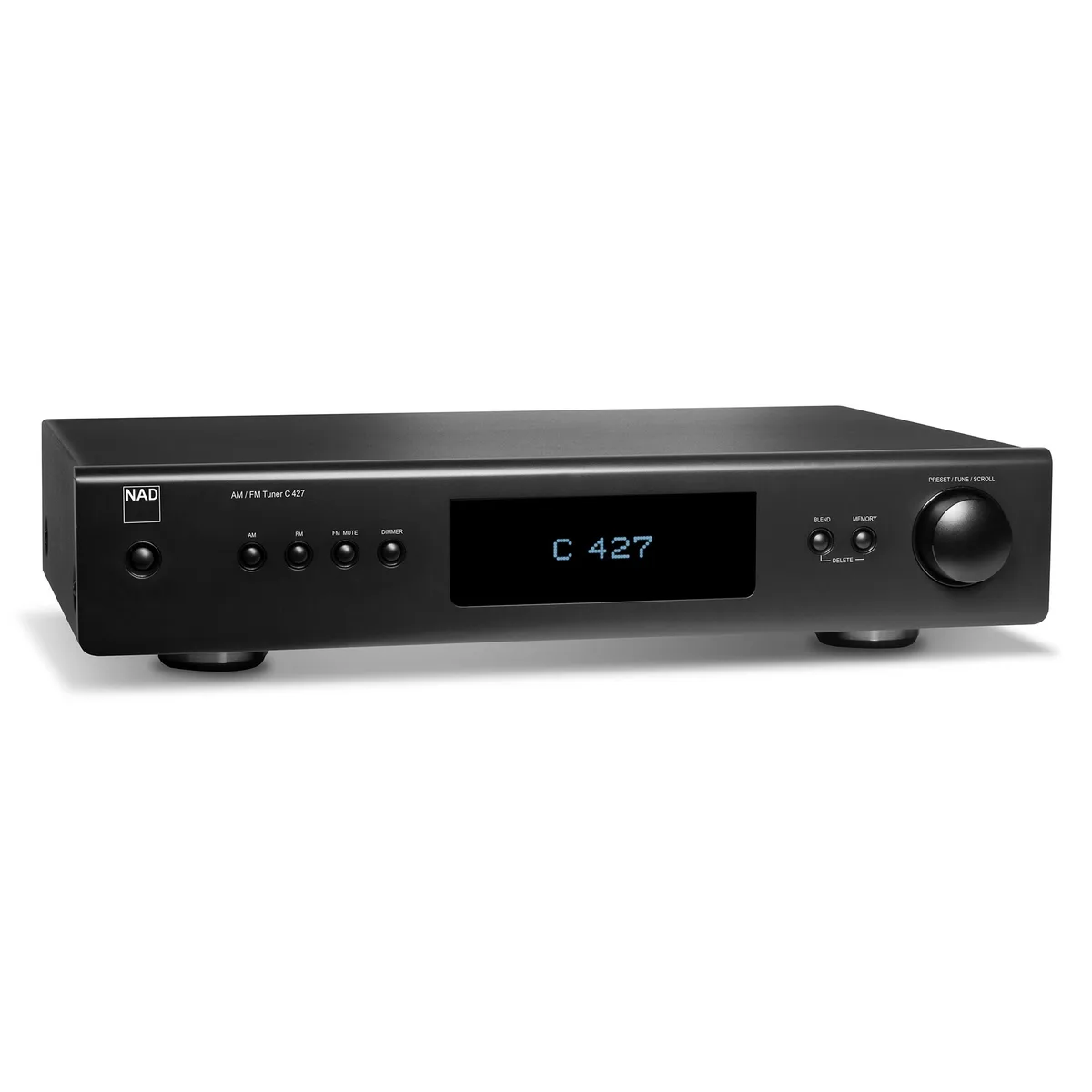

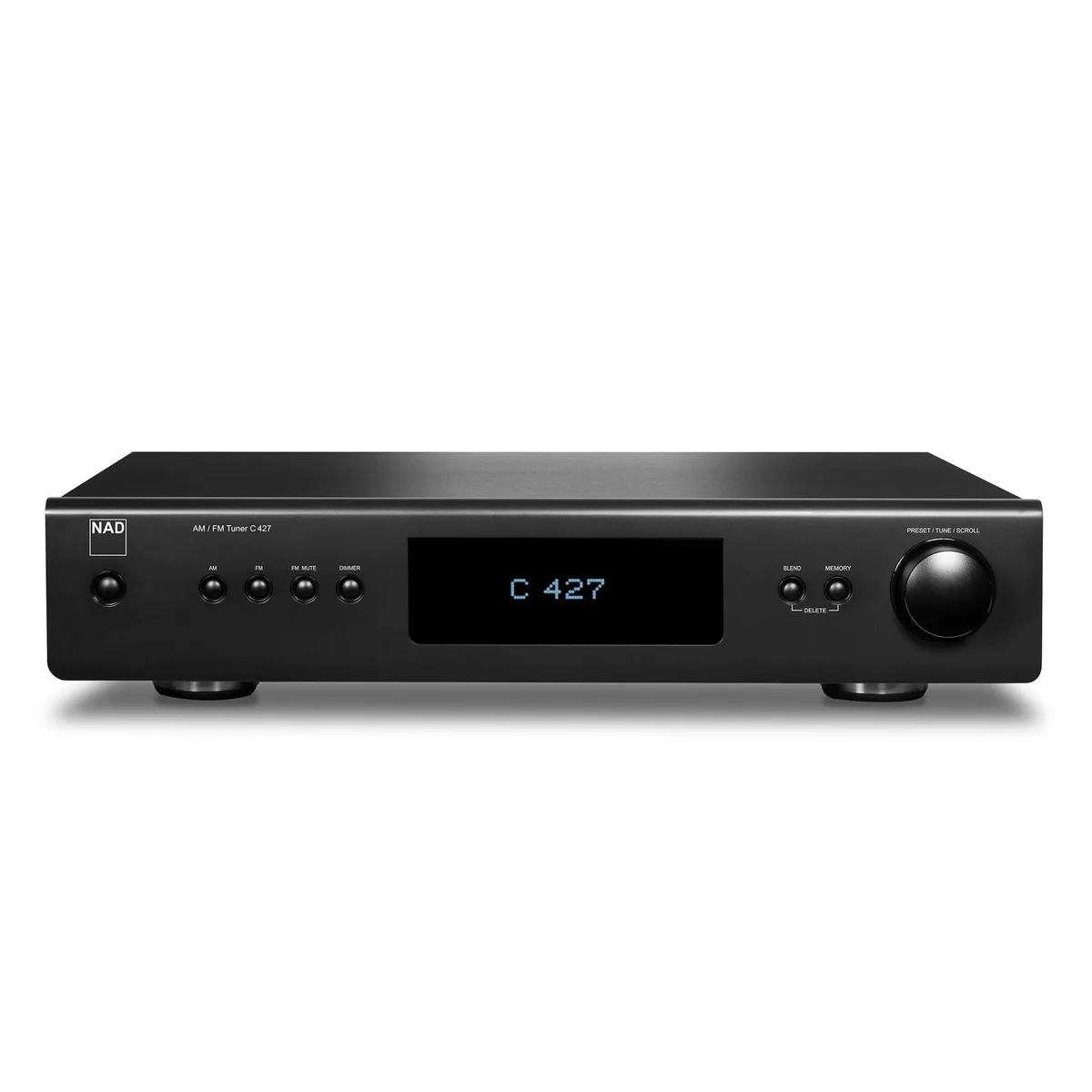

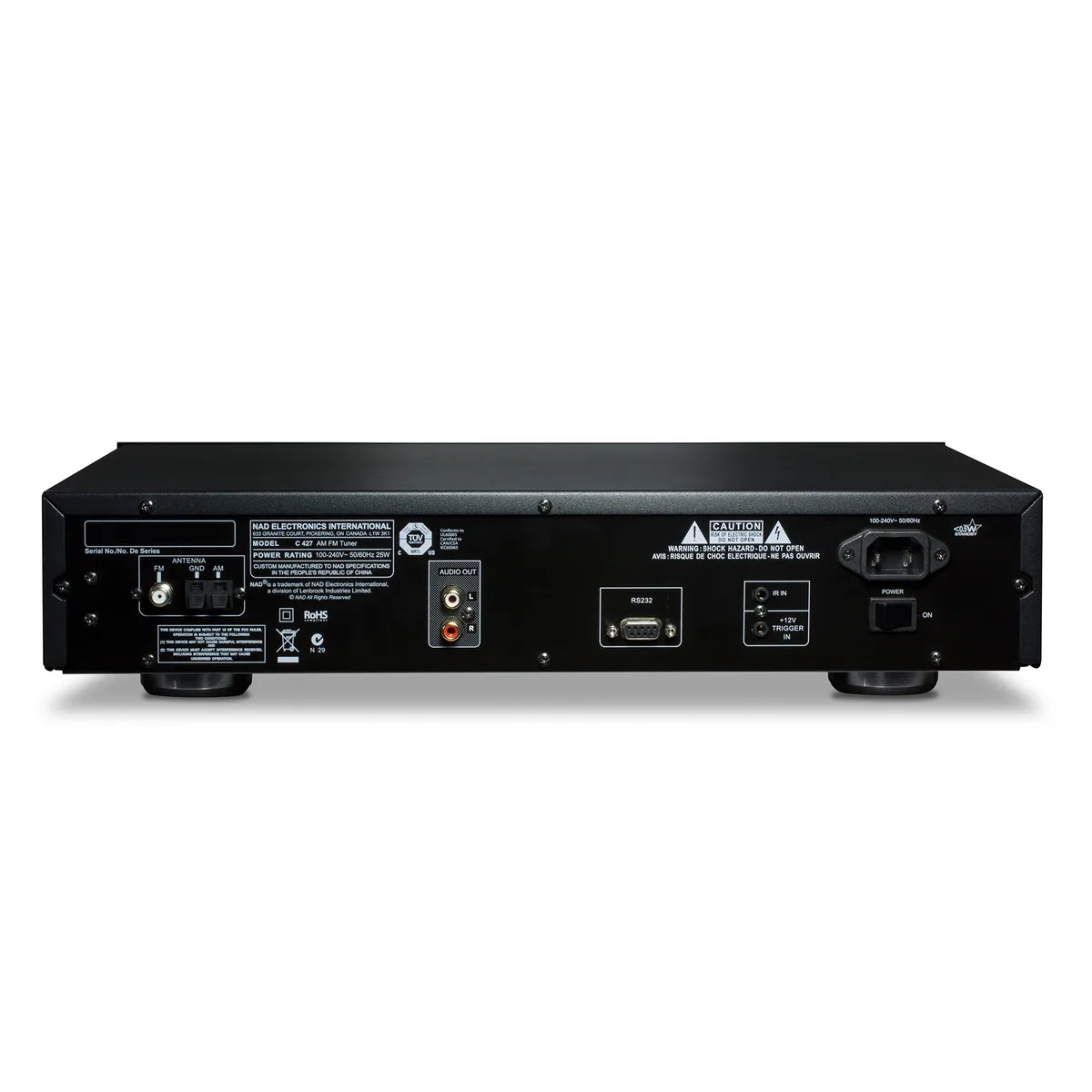

NAD C 427
NAD C 427 · C 427 · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
詢價型號
NAD C 427 https://maxaudio1689.com/shop/audio/nad-c-427-stereo-am-fm-tuner-f8d18108690f
產品規格
- RDS PS (Station name) and RT (Radio text)
- 40 Station random presets (AM or FM)
- VFL graphic display
- MOS-FET RF Front End
- RS 232 Interface
- IR Input
- Usable Sensitivity (98MHz)
- 10dBμV
- Signal/Noise Ratio
- 65dB (60dBμV IHF-WTD Mono) 60dB (60dBμV IHF-WTD Stereo)
- Frequency Response
- ±1.5dB (20Hz - 15kHz, 60dBμV)
- 30Hz
- 33dB
- 1kHz
- 40dB
- 10kHz
- 32dB
- Capture Ratio (40dBµV)
- 3dB
- AM Suppression
- 50dB (60dBμV, 100% Mod. FM, 30% Mod. AM)
- Image Rejection (119.4MHz)
- 70dB
- I.F. Rejection (10.7MHz)
- 70dB
- Pilot Suppression (60dBμV)
- 60dB
- Mono
- 0.4%
- Stereo
- 0.8%
- Auto Search Sensitivity
- 24dBμV
- RDS Decode Sensitivity
- 26dBμV
- Usable Sensitivity (999/1000kHz)
- 55dBµV
- Signal/Noise Ratio (5mV in)
- 42dB
- Total Harmonic Distortion (5mV in)
- 1.5%
- IF Rejection (450kHz)
- 40dB
- Image Rejection (F+2xIF)
- 28dB
- Selectivity
- 20dB
- 999/1000Hz
- 66dB
- 603/300Hz
- 66dB
- 1404/1400Hz
- 66dB
- Gross Unit Dimension* (WxHxD)
- 435 x 99 x 315mm 17 1/8 x 3 15/16 x 12 7/16”**
- Net weight
- 4.6kg (10.1lb)
- Shipping weight
- 5.4kg (11.9lb)
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
