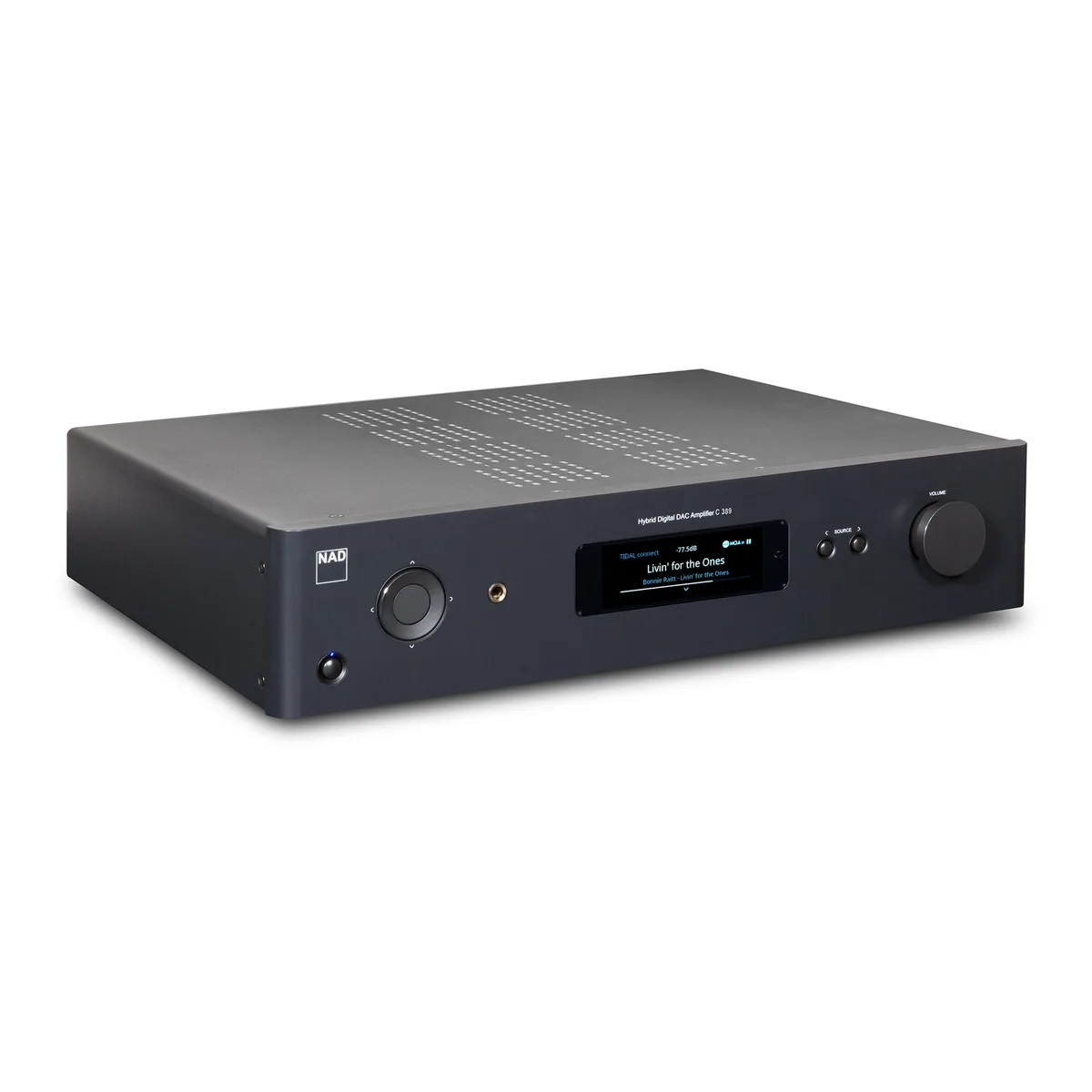

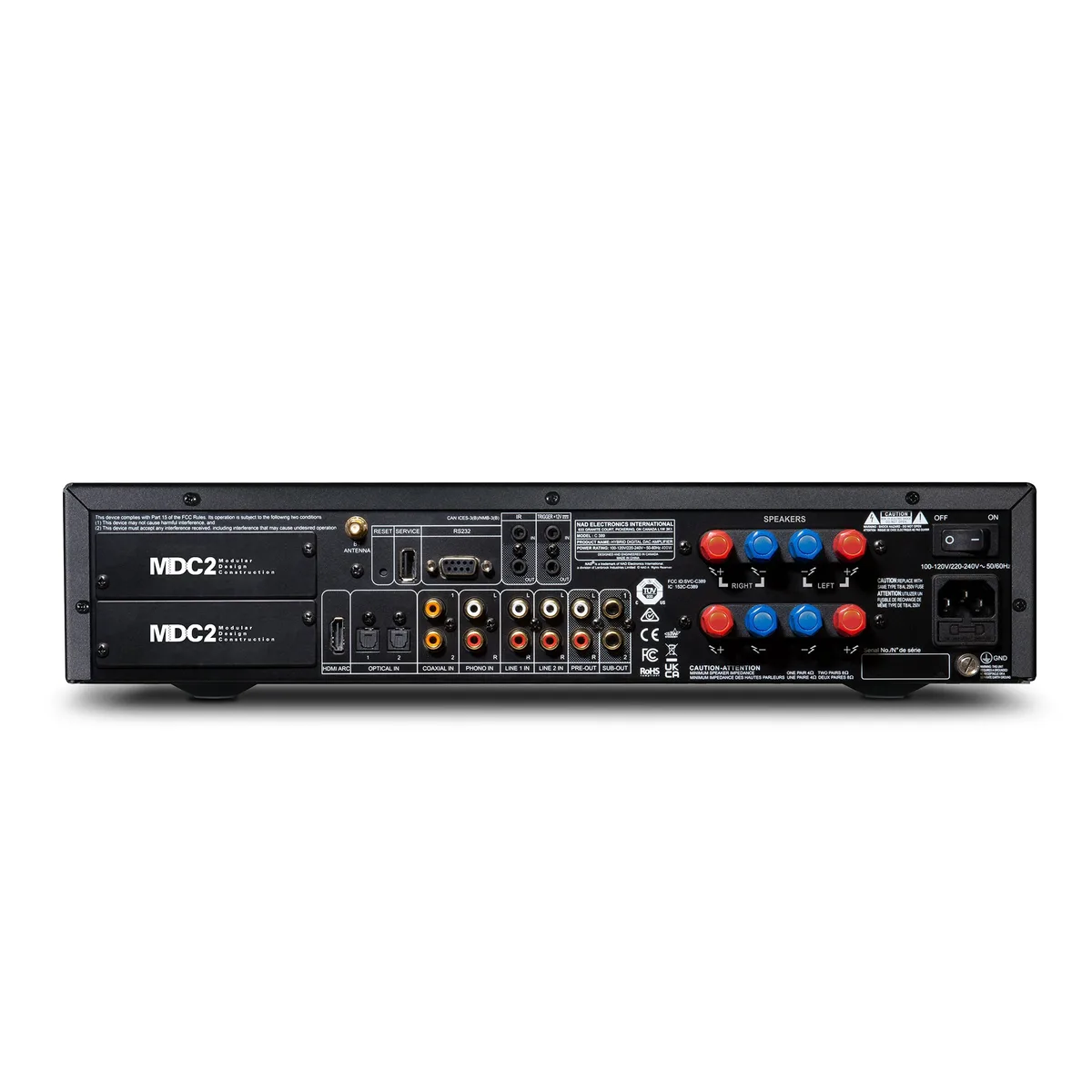

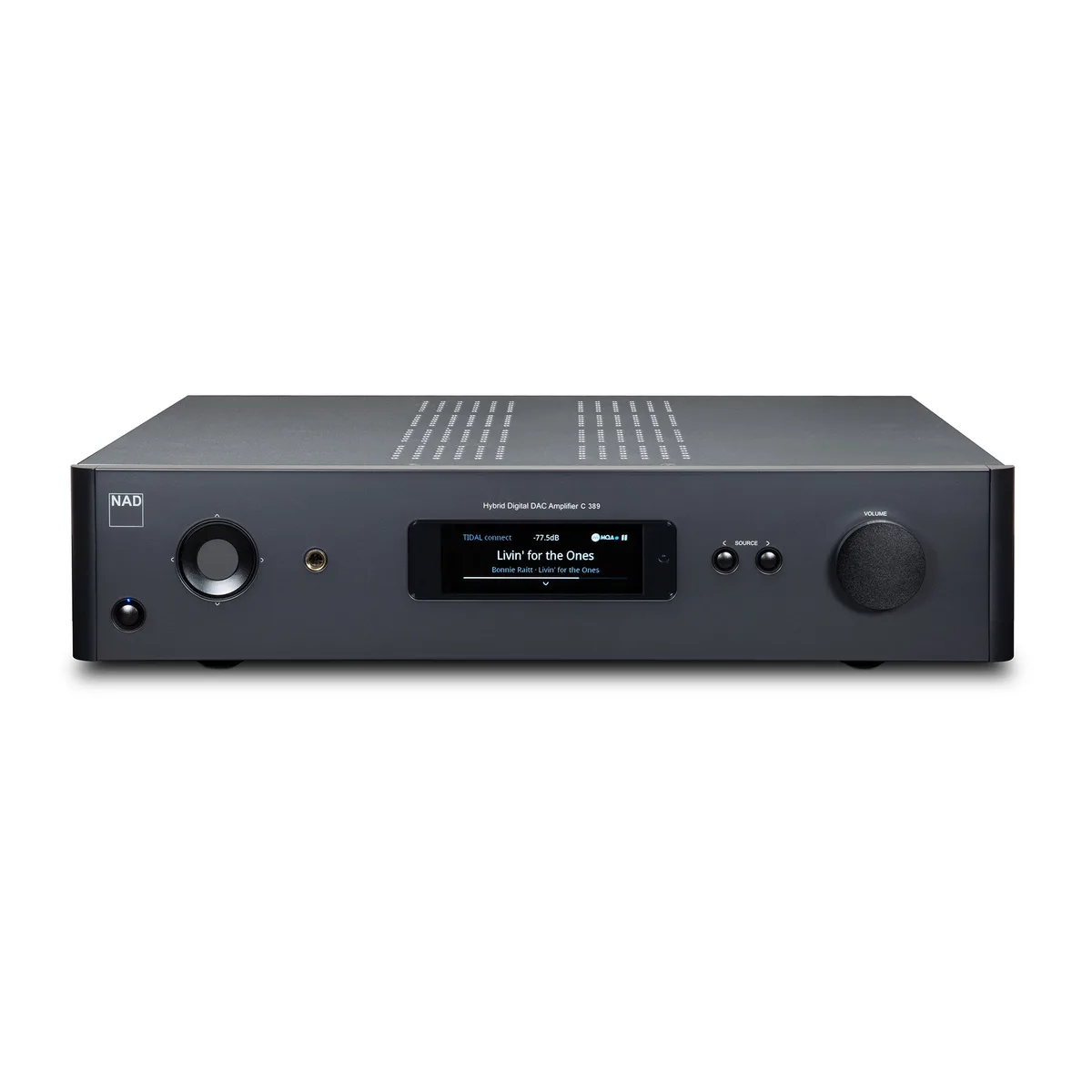

NAD C 389 DAC

產品規格

Signal to Noise Ratio

>106dB (IHF; A-weighted, ref. 500 mV out, unity gain)

Channel separation

>100dB (1 kHz); >90 dB (10 kHz)

Input Impedance (R and C)

56 kohms + 100 pF

Maximum input signal

>4.6 Vrms (ref. 0.1 % THD)

Output impedance

Source Z + 320 ohms

Input sensitivity

65mV (ref. 500 mV out, Volume maximum)

Frequency response

±0.3 dB (20 Hz - 20 kHz)

Maximum voltage output IHF load

>>5 V (ref. 0.1 % THD)

Maximum input signal at 1kHz

>80 mVrms (ref. 0.1 % THD)

Continuous output power into 8 ohms and 4 ohms

2 x 130W

Clipping power

150W

IHF dynamic power

210W into 8 ohms

Peak output current

>26A (in 1 ohm, 1ms)

Damping factor

>150 (ref. 8 ohms, 20Hz to 6.5kHz)

Input sensitivity (for 130 W in 8 ohms)

Line In: 201 mV, Digital In: 10.25% FS

Supports bit rate/sample rate

up to 32 bit/384 kHz

Frequency band

2.402GHz- 2.480GHz

Maximum transmit power (dBm)

7 dBm ± 2 dBm

Gross dimensions (W x H x D)

435 x 100 x 390mm (17.1 x 3.9 x 15.4“)

Net Weight

8.7kg (19.1lb)

Shipping weight

~11kg (24.2lb)
