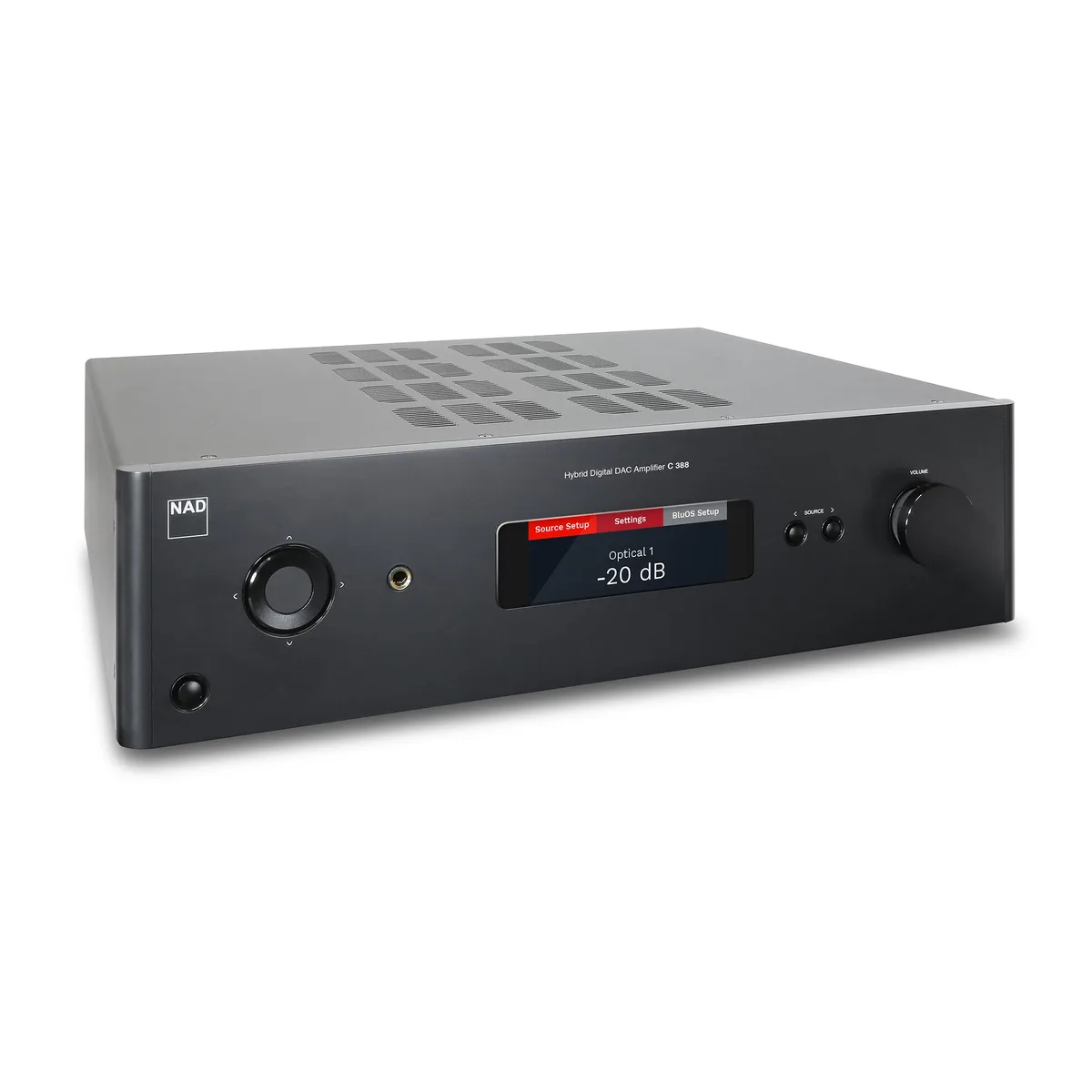

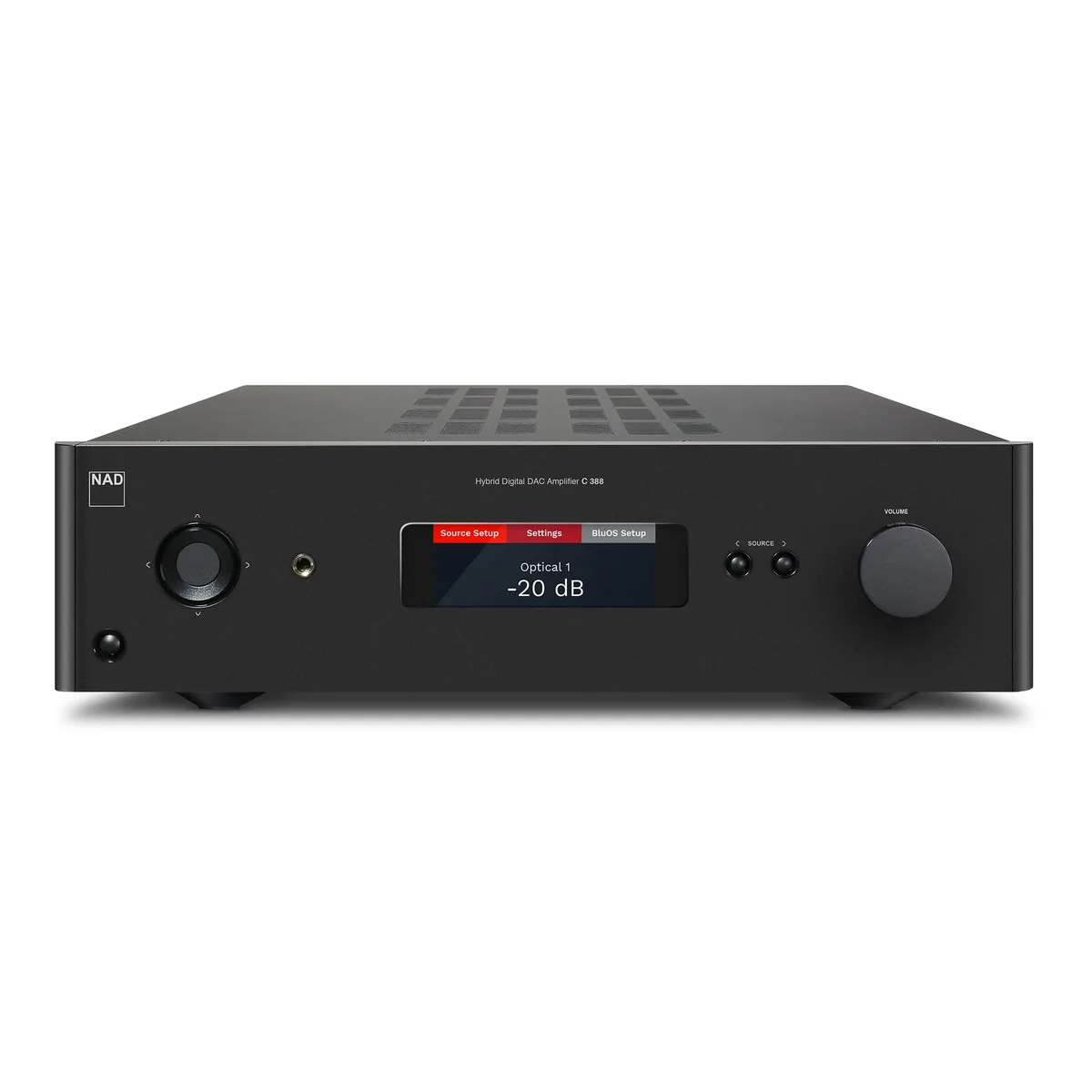

NAD C 388 DAC

產品規格

150W x 2 Continuous power into 8 or 4 Ohms

Bluetooth A2DP with aptX supported

MM Phono input

Analogue line inputs

USB port for service purposes

SPDIF coax and optical inputs

Speaker A, Speaker B

Preamp/Subwoofer out

Headphone amplifier

MDC Slots for future upgrades

IR remote

Smartphone Control App

12V Trigger in/out

IR in/out

RS 232 Serial port for control

Control4, Crestron, RTI, URC, AMX, Savant, Elan certified

Signal/Noise Ratio

>106dB (IHF; A-weighted, ref. 500mV out, unity gain)

Channel Separation

>80dB (1kHz); >70dB (10kHz)

Input Impedance (R and C)

22 kilohm + 100pF

Maximum Input Signal

>4.5Vrms (ref. 0.1% THD)

Output Impedance

Source Z + 240 Ohm

Input Sensitivity

93mV (ref. 500mV out, Volume maximum)

Frequency Response

±0.03dB (20Hz-20kHz)

Maximum voltage output IHF load

>4.5V (ref. 0.1% THD)

Tone Controls

Treble: ±7.0dB at 20kHz Bass: ±7.0dB at 60Hz Balance: -10dB

Signal to Noise Ratio

>84dB (200 Ohm source; A-weighted, ref. 500mV out) >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)

Maximum Input Signal at 1kHz

>80mVrms (ref. 0.1% THD)

Continuous output Power into 4 Ohms and 8 Ohms (Stereo)

>150W (at rated THD, 20-20kHz, both channels driven)

IHF Dynamic Power

8 Ohm 250W 4 Ohm 350W 2 Ohm 400W

Clipping Power

>160W (at 1kHz 0.1% THD)

Peak Output Current

>20A (in 1 Ohm, 1ms)

Damping Factor

>150 (ref. 8 Ohm, 20Hz and 6.5kHz)

Input Sensitivity (for 80W in 8 Ohm)

Line In: 490mV; Phono In: 7.5mV; Digital In: 24% FS

Sample Rate

up to 24 bit/192kHz

Frequency Band

2.402G - 2.480G

Maximum Transmit Power (dBm)

7dBm ±2dBm

at Auto Standby ON and Network Standby OFF

0.5 Watts*

at Auto Standby ON and Network Standby ON

1.2 Watts**

OFF mode (Power switched OFF)

0.1 Watts

Gross Dimensions (W x H x D)*

435 x 120 x 390mm (17 1/8 x 4 3/4 x 15 3/8)”

Net Weight

11.2kg (24.7lb)

Shipping Weight

13.6kg (30lb)
