NAD

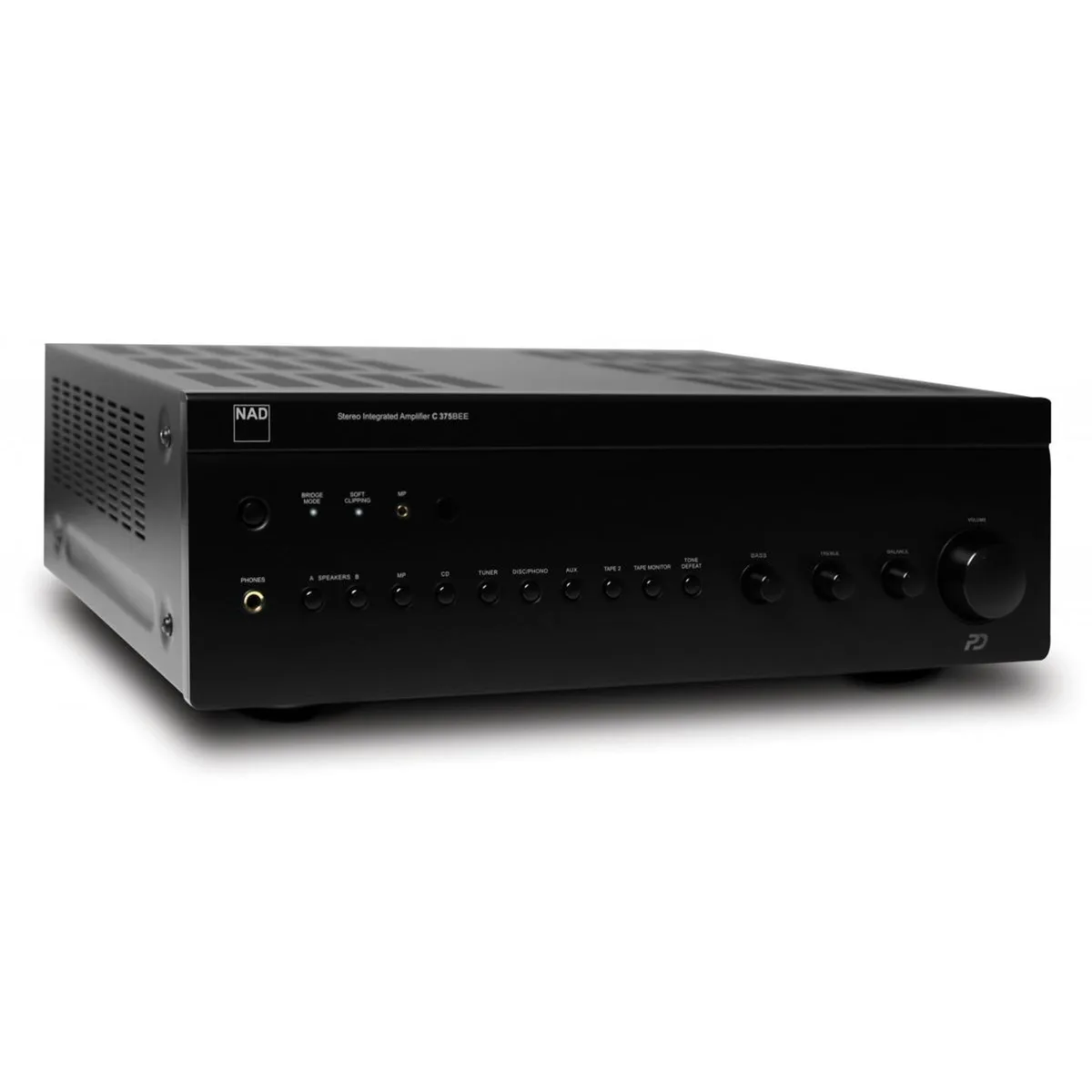

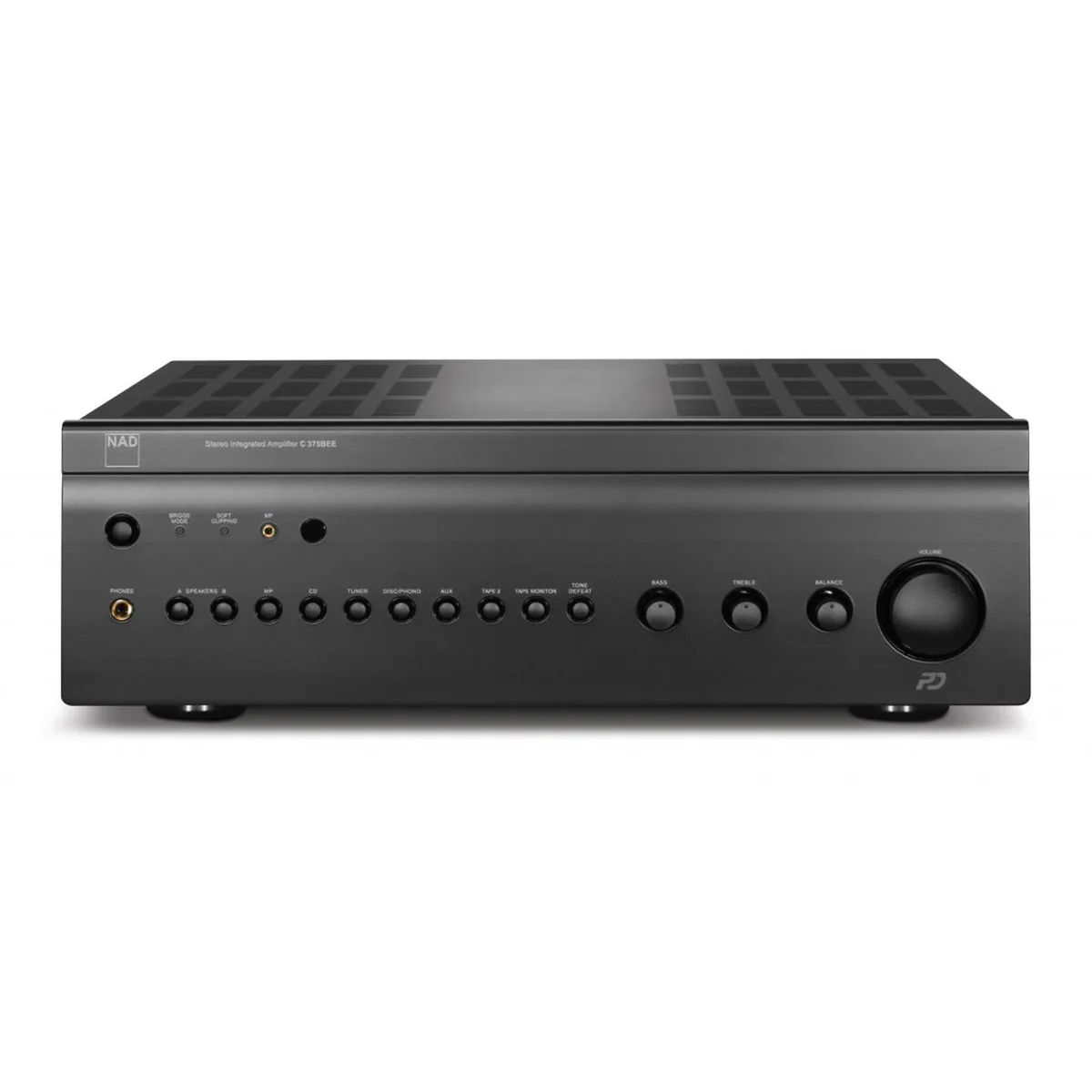

NAD C 375BEE 綜合擴大機
NAD C 375BEE 綜合擴大機 · C 375BEE · 請洽 LINE 詢價
請洽 LINE 詢價
供貨狀況請洽詢
詢價型號
NAD C 375BEE https://maxaudio1689.com/shop/audio/nad-c-375bee-stereo-integrated-amplifier-92cf5e054b3f
產品規格
- 150W x 2 Continuous Power into 4 Ohms and 8 Ohms
- 250W, 410W, 600W IHF Dynamic power into 8, 4 and 2 Ohms, respectively
- PowerDriveTM circuit
- NAD SR-8 Full System Remote Control
- Headphone socket
- Front panel Media Player (MP) input for attaching portable MP3 Player
- Relay Input Switching
- Holmgren Toroidal Power transformer
- 7 Line inputs, including two tape in/outs
- All discrete circuitry
- Class A Voltage Stages (Preamp and Power Amp)
- Distortion Canceling Circuit
- BEE Anti saturation Clamp
- Short signal path from input to output
- All sockets Gold plated
- Tone controls defeat switch
- Main amp input & 2 pre amp outputs
- Speaker A + B outputs and switching
- Soft ClippingTM
- IR Input/Output
- 12V trigger out
- RS-232 serial port
- Detachable IEC Power Cable
- Optional PP375 MC/MM Phono Module
- Signal/Noise ratio IHF
- >102dB (IHF; A-weighted, ref. 500mV)
- 1kHz
- >80dB
- 10kHz
- >70dB
- Input impedance (R and C)
- 100 kilohm+ 320pF
- Maximum input signal
- >8Vrms (ref. 0.1% THD)
- Pre out
- 75 Ohm
- Tape out
- Source Z + 1 kilohm
- Input sensitivity
- 158mV (ref. 500mV out)
- Frequency response
- ±0.1dB (ref. 20Hz - 20kHz, Tone defeat ON)
- IHF load
- >10V (ref. 0.03% THD)
- 600 Ohm load
- >10V (ref. 0.03% THD)
- Treble
- ±5dB at 10kHz
- Bass
- ±8dB at 100Hz
- Continuous output power into 8 Ohm and 4 Ohm (Stereo)
- >150W (ref. rated THD, 20Hz-20kHz, both channels driven)
- Continuous output power into 8 Ohm (Mono, Bridge mode)
- >330W
- Clipping power
- >170W (ref. 1kHz 0.1% THD)
- 8 Ohm
- 250W
- 4 Ohm
- 410W
- 2 Ohm
- 600W
- Peak output current
- >50A (ref. 1 Ohm, 1ms)
- Signal/noise ratio
- >102dB (A-weighted, ref. 1W)
- Damping factor
- >200 (ref. 8 Ohms, 50Hz and 1kHz)
- Input impedance
- 10 kilohm + 200pF
- Voltage gain
- 29dB
- Headphone output impedance
- 68 Ohms
- Output resistance
- 120 Ohms
- Output current
- 50mA
- Output voltage
- +12V ±10%
- Continuous Output Power into 8 Ohms and 4 Ohms (Stereo)
- >150W (at rated THD, 20Hz-20kHz, both channels driven)
- Signal/Noise Ratio
- >94dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)
- Rated power
- 640W (at 230V AC 50Hz; 120V AC 60Hz)
- Net
- 435 x 133 x 352mm
- Gross*
- 435 x 150 x 396mm
- Net weight
- 15.3kg (33.7lb)
- Shipping weight
- 18.0kg (39.7lb)
資料來源
商品資料依下列來源與本機驗證資料整理；價格與供應狀況仍以門市洽詢結果為準。
