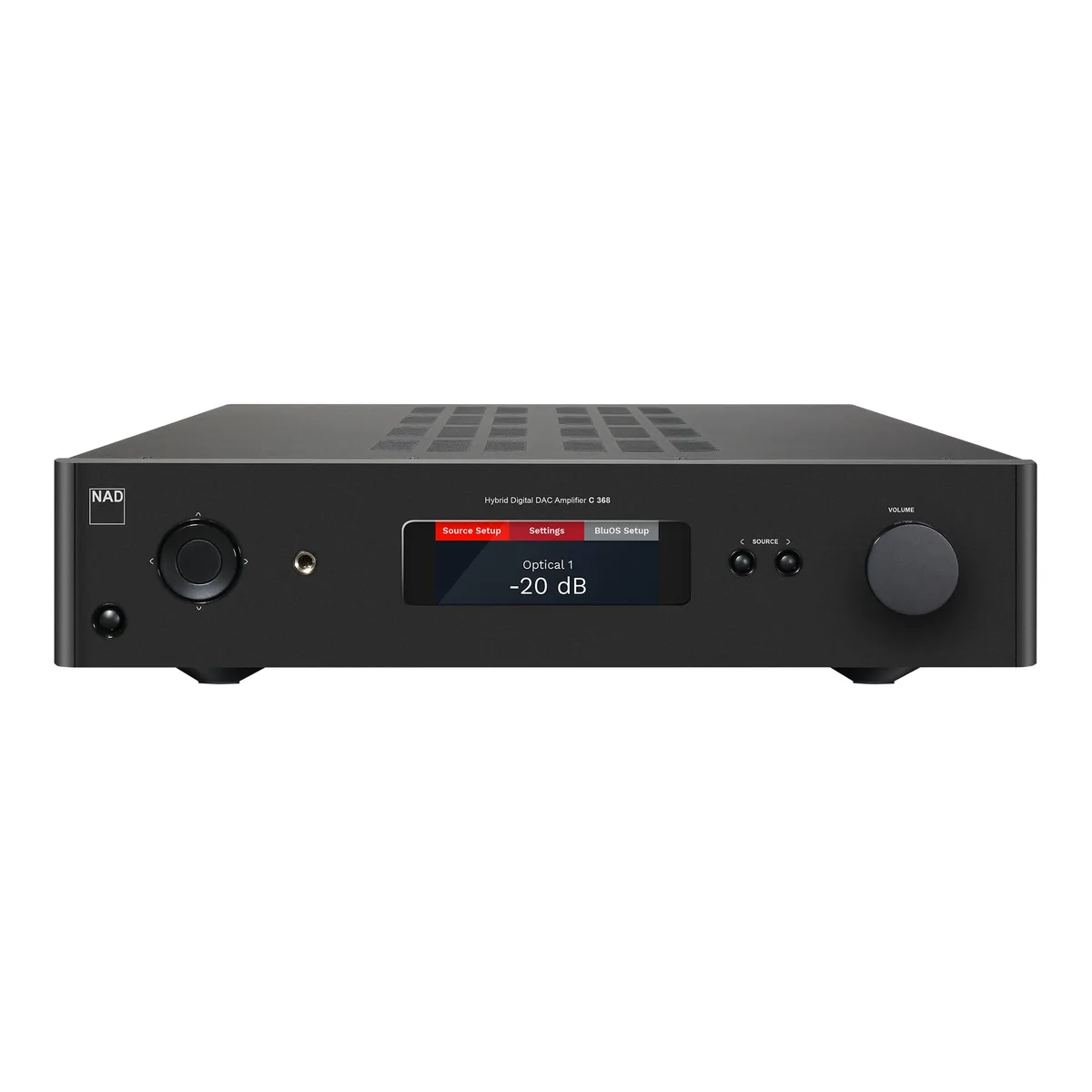

NAD C 368 DAC

產品規格

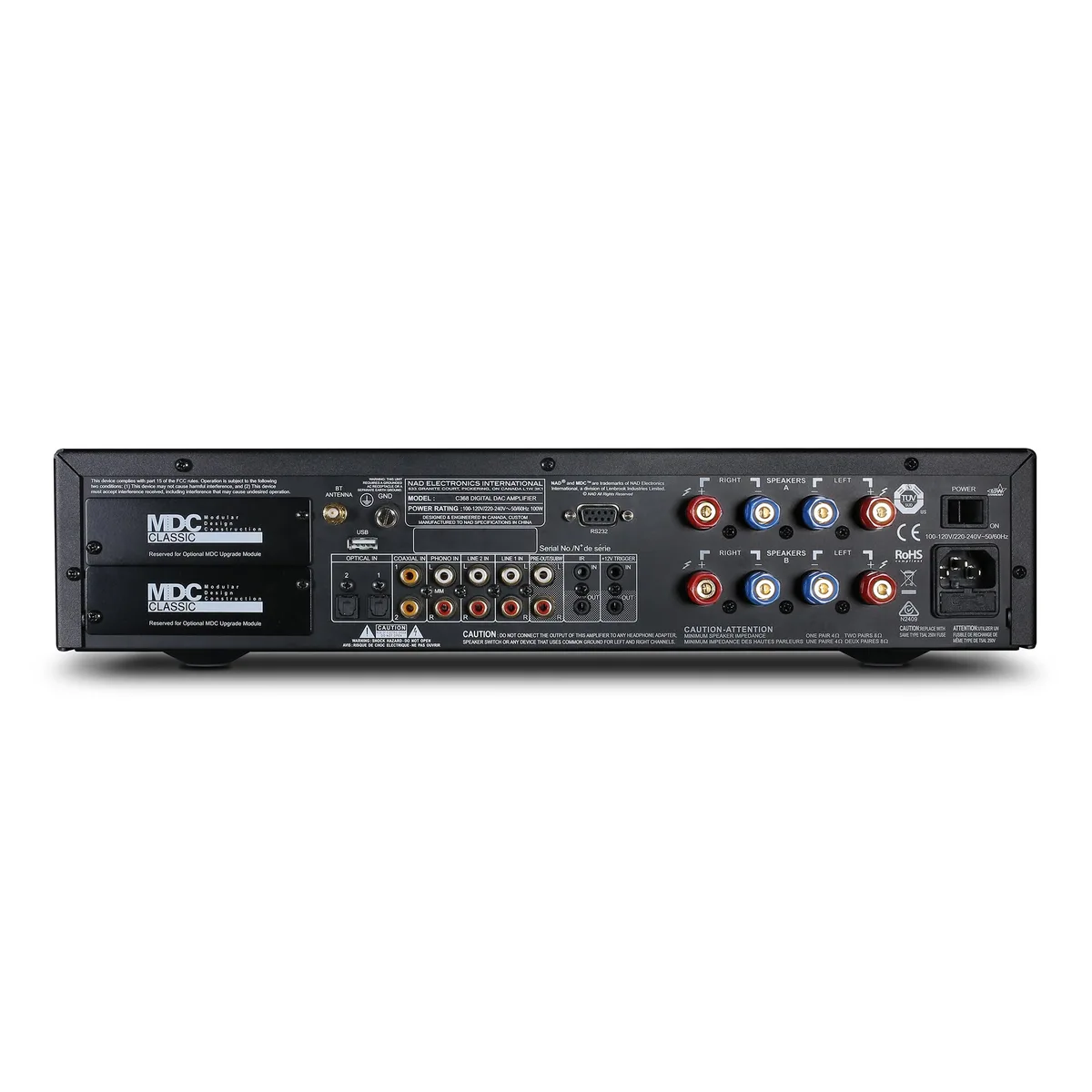

80W x 2 Continuous power into 8 or 4 Ohms

Bluetooth A2DP with aptX supported

MM Phono input

Analogue line inputs

SPDIF coax and optical inputs

Speaker A, Speaker B

Stereo or Bridge mode configuration

Preamp/Subwoofer out

Headphone amplifier

MDC Slots for future upgrades

IR Remote

Smartphone Control App

12V Trigger in/out

IR in/out

RS 232 Serial port for control

Control4, Crestron, RTI, URC, AMX, Savant, Elan certified

Signal/Noise Ratio

>106dB (IHF; A-weighted, ref. 500mV out, unity gain)

Channel Separation

>80dB (1kHz); >70dB (10kHz)

Input Impedance (R and C)

22 kilohm + 100pF

Maximum Input Signal

>4.5Vrms (ref. 0.1% THD)

Output Impedance

Source Z + 240 Ohm

Input Sensitivity

93mV (ref. 500mV out, Volume maximum)

Frequency Response

±0.03dB (20Hz-20kHz)

Maximum voltage output IHF load

>4.5V (ref. 0.1% THD)

Tone Controls

Treble: ±7.0dB at 20kHz Bass: ±7.0dB at 60Hz Balance: -10dB

Signal to Noise Ratio

>84dB (200 Ohm source; A-weighted, ref. 500mV out) >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)

Maximum Input Signal at 1kHz

>80mVrms (ref. 0.1% THD)

Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)

>80W (ref. 20-20kHz at rated THD, both channels driven)

Continuous Output Power into 8 Ohms (Bridge Mode)

300W (at 20-20kHz at THD 0.03%)

Clipping Power

>95W (at 1kHz 0.1% THD)

Clipping Power (Bridge Mode)

>315W (at 1kHz 0.1% THD)

IHF Dynamic Power

8 Ohms 120W 4 Ohms 200W 2 Ohms 250W

IHF Dynamic Power (Bridge Mode)

8 Ohms 500W 4 Ohms 560W

Peak Output Current

>20A (in 1 Ohm, 1ms)

Damping Factor

>300 (ref. 8 Ohms, 20Hz and 6.5kHz)

Input Sensitivity (for 80W in 8 Ohms)

Line In: 470mV; Digital In: 21% FS

Sample Rate

up to 24 bit/192kHz

Frequency Band

2.402G-2.480G

Maximum Transmit Power (dBm)

7dBm ±2dBm

at Auto Standby ON and Network Standby OFF

0.5 Watts*

at Auto Standby ON and Network Standby ON

1.2 Watts**

OFF mode (Power switched OFF)

0.1 Watts

Gross Dimensions (W x H x D)*

435 x 100 x 390mm (17 1/8 x 3 15/16 x 15 3/8)”

Net Weight

7.8kg (17.2lb)

Shipping Weight

10.1kg (22.3lb)
