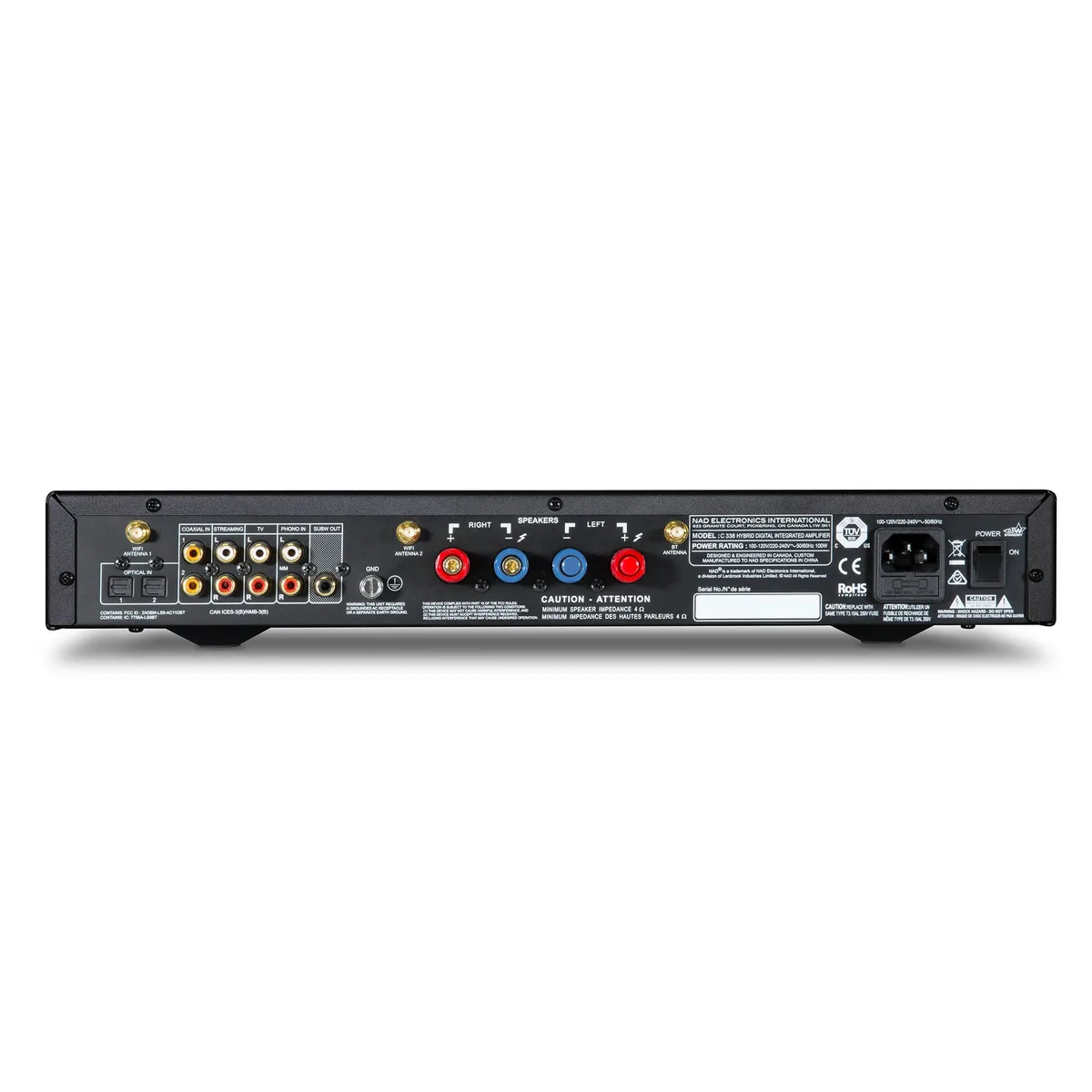

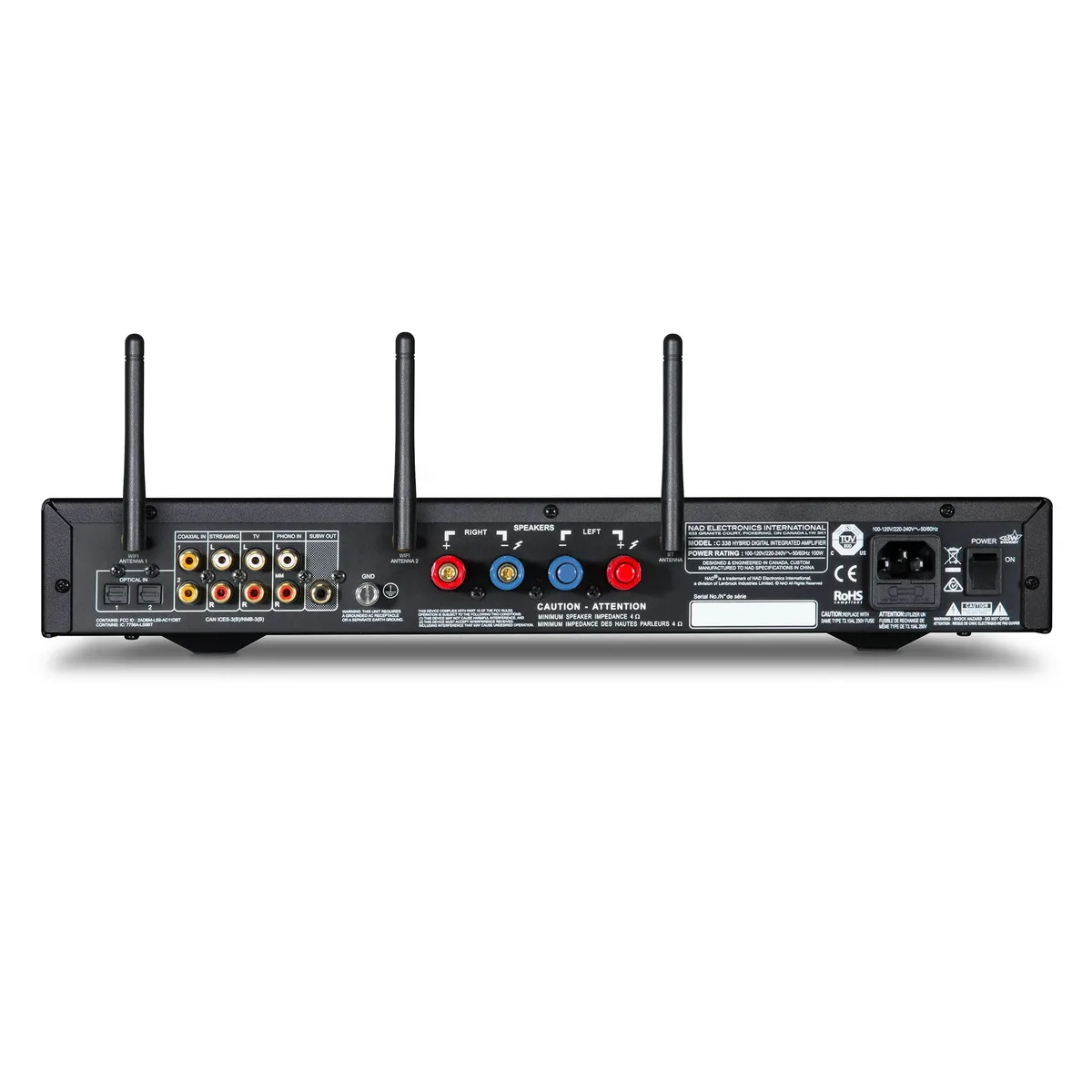

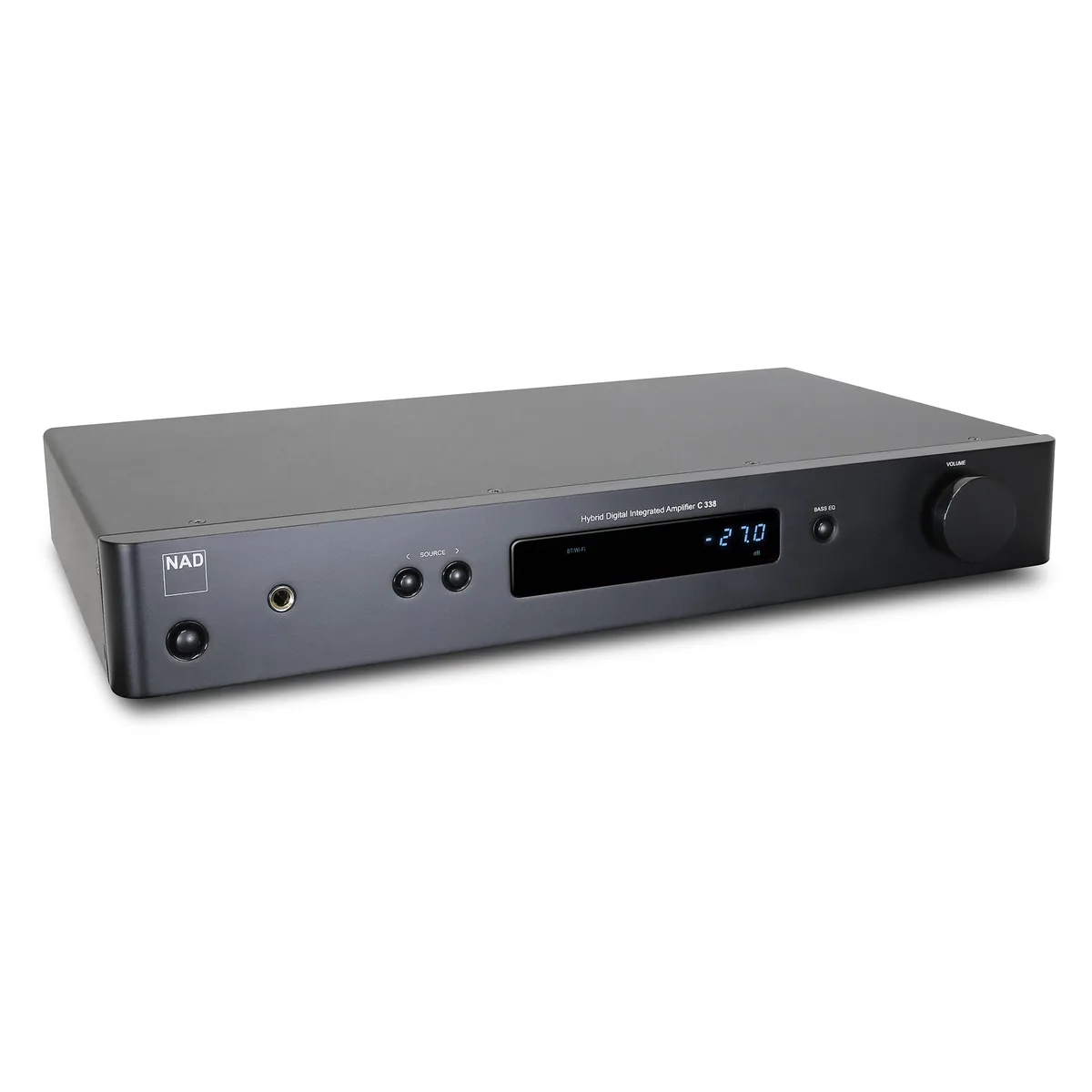

NAD C 338 DAC

產品規格

50W x 2 Continuous Power into 8 or 4 Ohms

90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms

First hi fi amplifier to feature Chromecast built in

Integrated Bluetooth® for added music streaming flexibility

Built in Phono Preamp for Turntables

Stereo Line, Optical Digital and Coax Digital inputs

NAD Remote App support for tablet and smartphone

Dedicated Headphone Amplifier

Signal/Noise Ratio

>106dB (IHF; A-weighted, 500mV out, unity gain)

Input Impedance (R and C)

56 kilohm + 100pF

Maximum Input Signal

>4.5Vrms (ref. 0.1% THD)

Output Impedance

Source Z + 200 Ohm

Input Sensitivity

50mV (100Hz ref. 500mV out, Volume maximum

Maximum voltage output IHF load

>4.5V (ref. 0.1% THD)

Frequency Response

±0.3dB (20Hz-20kHz)

Channel Separation

>56dB at 1kHz

Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)

>50W (at rated THD, 20-20kHz, both channels driven)

IHF Dynamic Power

8 Ohm 80W 4 Ohm 150W 2 Ohm 210W

Clipping power

>60W (at 1kHz 0.1% THD)

Peak output current

>18A (in 1 Ohm, 1 ms)

Damping Factor

>300 (ref. 8 Ohm, 20Hz to 6.5kHz)

Input Sensitivity (For 50W in 8 Ohm)

Line In: 380mV, Digital In: 18% FS

Sample Rate

Up to 24 bit/192kHz

Input Impedance

47 kilohm + 100pF

at ECO Standby mode

0.4 Watts*

at Control Standby mode

1.8 Watts**

OFF mode (Power switched OFF)

0 Watts

Gross Dimensions (W x H x D)*

435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”

Net Weight

4.85kg (10.7lb)

Shipping Weight

5.85kg (12.9lb)
