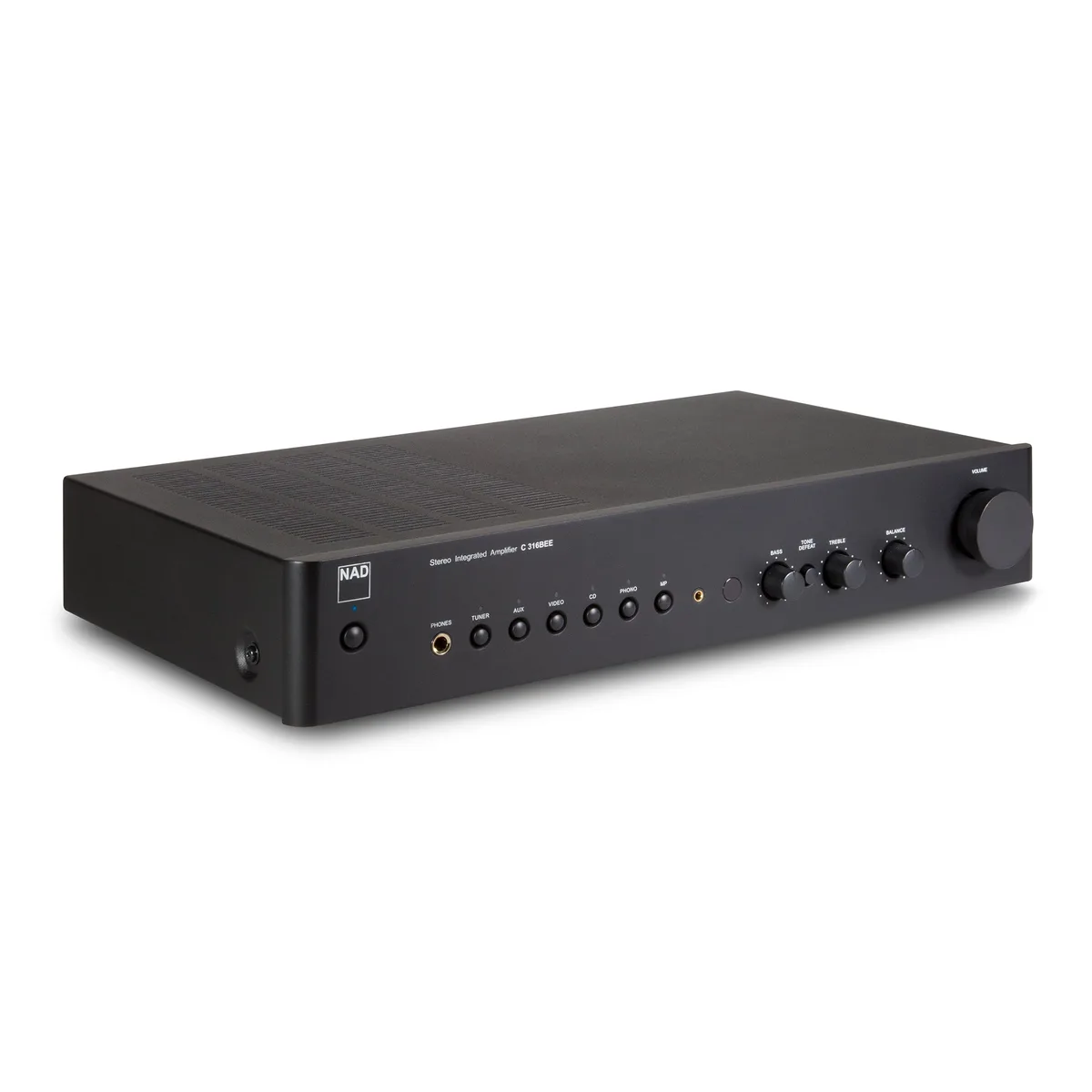

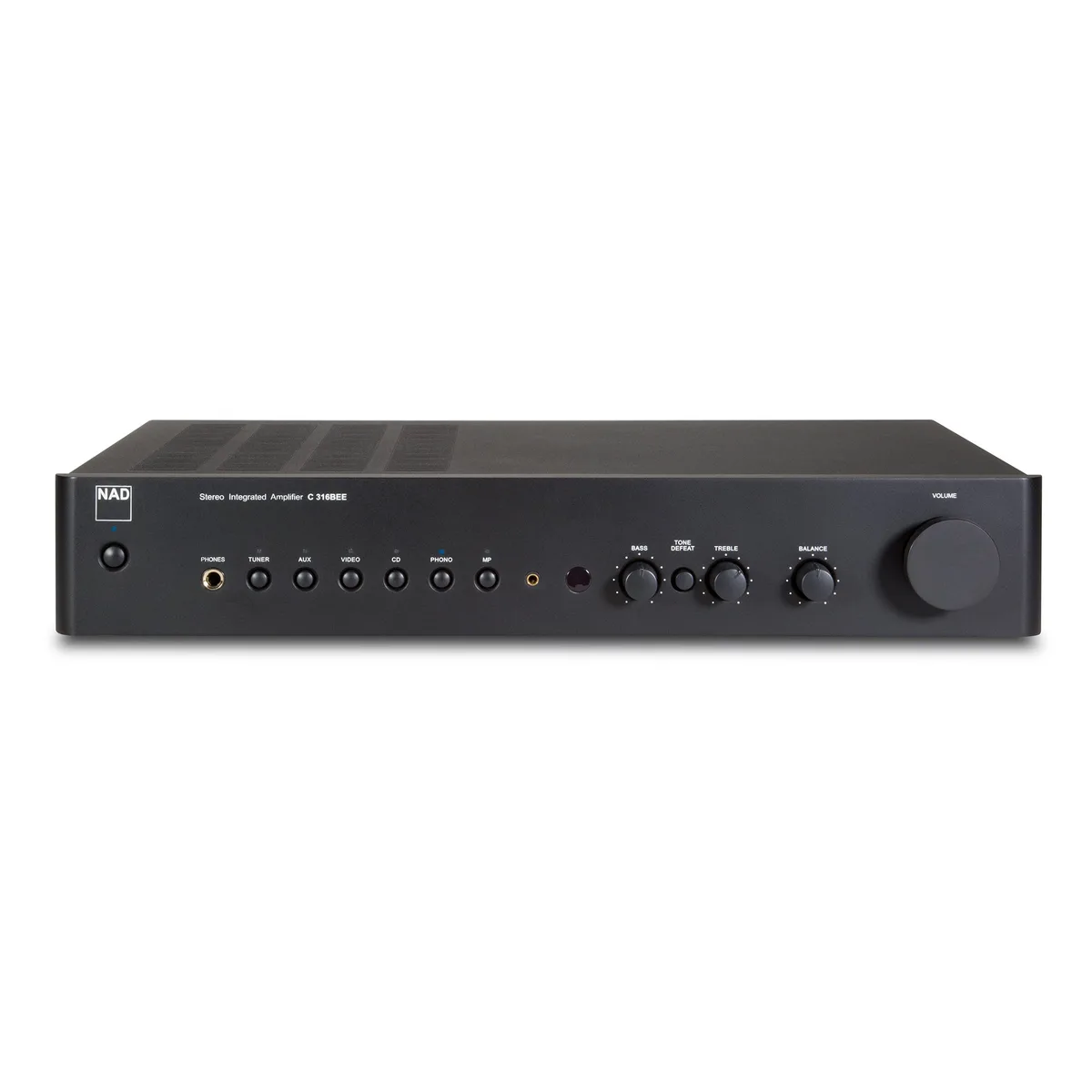

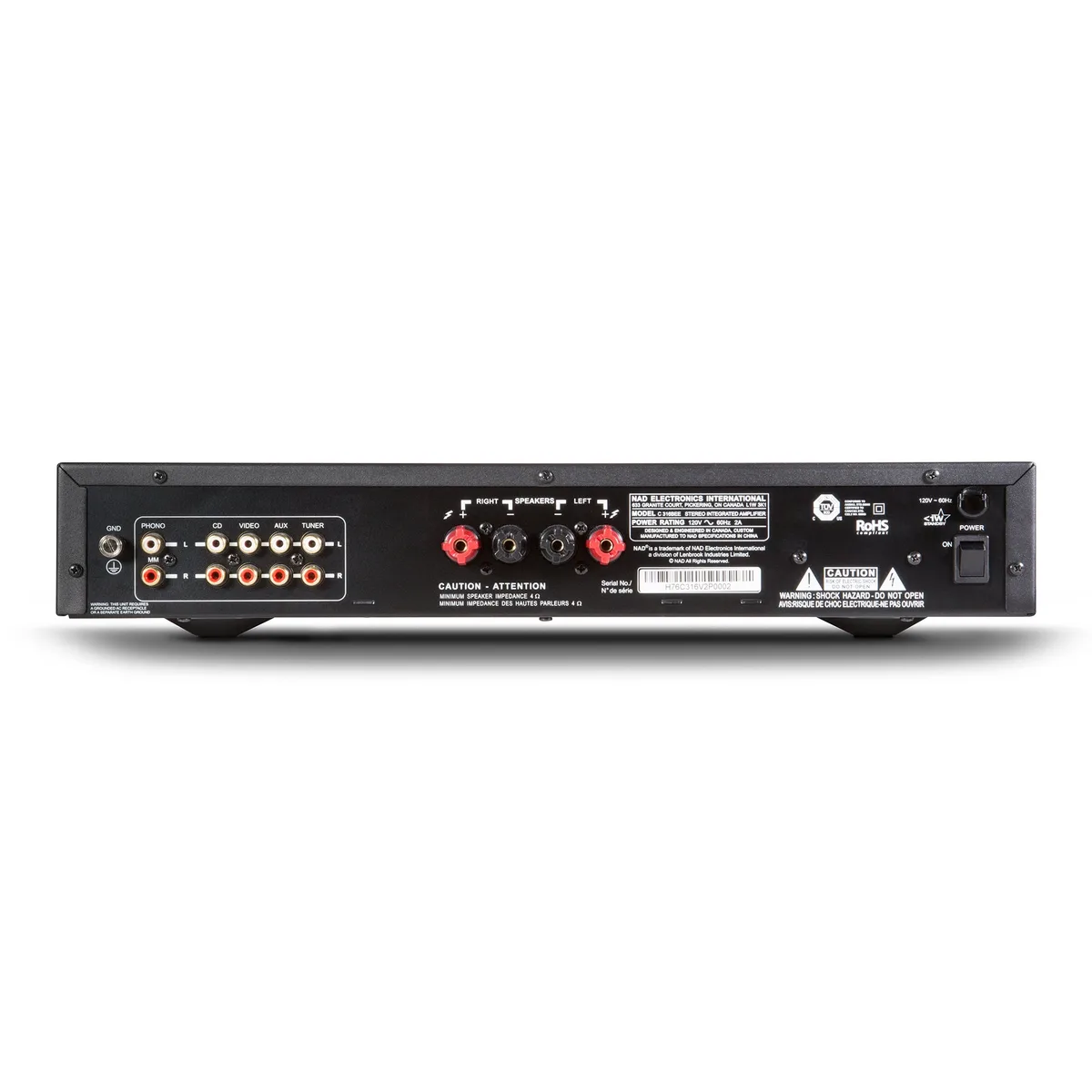

NAD C 316BEE V2 綜合擴大機

產品規格

Signal to Noise Ratio

>100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)

Frequency response

±0.3 dB (20 Hz - 20 kHz)

Output impedance

8 ohms

Continuous output power into 8 ohms and 4 ohms

THD (20 Hz - 20 kHz)

Clipping power (at 1 kHz 0.1 % THD)

>45 W in 8 ohms >60 W in 4 ohms

IHF dynamic power

8 ohms: 90 W 4 ohms: 120 W 2 ohms: 170 W

Damping factor

>200 (ref. 8 ohms, 1 kHz)

Channel separation

>70 dB (1 kHz)

Maximum input level

4.3V (1 kHz THD 0.1%)

Input sensitivity (for 40 W in 8 ohms)

200 mV

Frequency response (RIAA deviation)

+0.3 dB (20 Hz - 20 kHz, Tone Defeat ON)

Input sensitivity (for 40 W in 8 ohms

2.95 mV

Gross dimensions (W x H x D)

17 1/8 x 3 9/16 x 11 1/4 inches 435 x 90 x 285 mm

Net weight

5.5 kg (12.1 lbs)

Shipping weight

6.4 kg (14.1 lbs)
