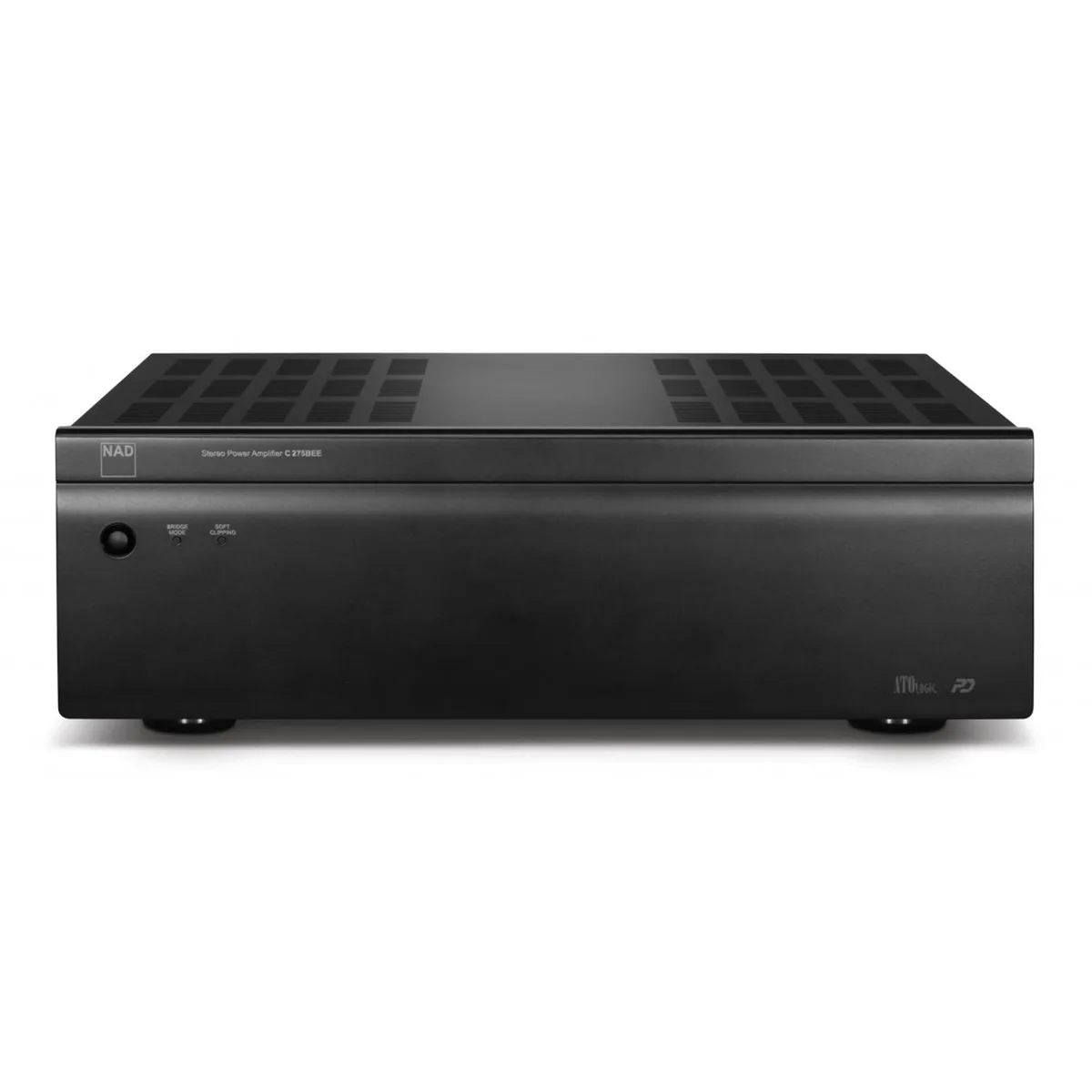

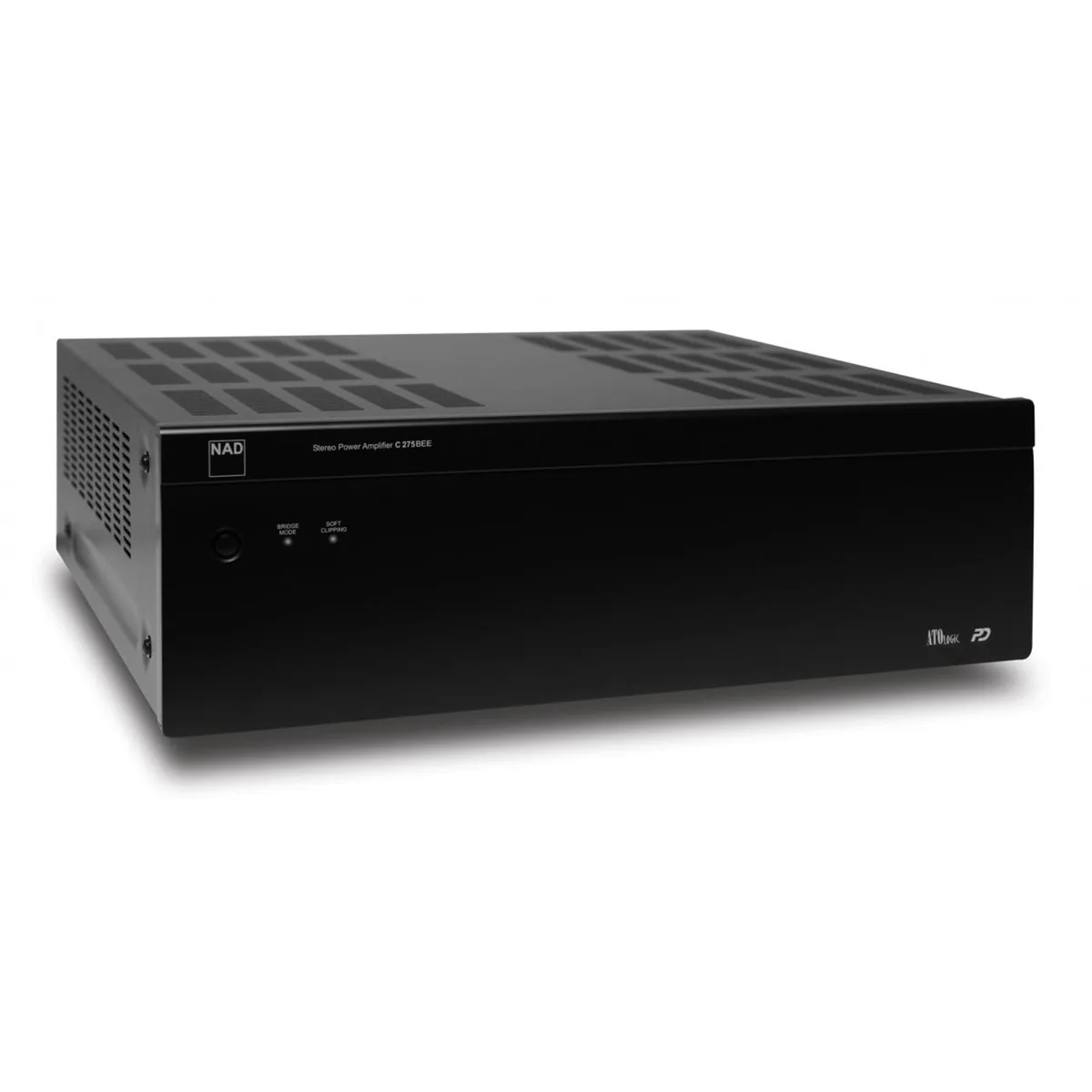

NAD C 275BEE 後級擴大機

產品規格

2 x 150W Continuous Power into 4 Ohms and 8 Ohms

250W, 410W, 600W IHF Dynamic power into 8, 4 and 2 Ohms, respectively

PowerDrive™ circuit

Holmgren Toroidal Power transformer

All discrete circuitry

Class A Voltage Stages

Distortion Canceling Circuit

BEE Anti-saturation Clamp

Short signal path from input to output

All sockets Gold-plated

Soft Clipping™

ATOLogic 12 volt trigger/ signal sensing input

Continuous output power into 8 Ohm (Mono, Bridge mode)

>330W (ref. 20Hz - 20kHz, (Mono, Bridge mode)

Clipping power (4 Ohm and 8 Ohm)

>170W (ref. 1kHz 1% THD)

8 Ohm

250W

4 Ohm

410W

2 Ohm

600W

Peak output current

>50A (ref. 1 Ohm, 1ms)

Signal/Noise ratio

>102dB (A-weighted, ref. 1W)

Damping factor

>180 (ref. 8 Ohm, 50Hz and 1kHz)

Frequency response

±0.1dB (ref. 20Hz - 20kHz)

Input impedance (Fixed IN)

10 kilohm + 200pF

Input impedance (Variable IN)

100 kilohm + 100pF

Input Sensitivity

1.2V (ref. rated power)

Voltage gain

29dB

Minimum input level for AUTO TRIGGER

10mV at 1kHz

Normal operation

312W (ref. 230V AC 50Hz; 120V AC 60Hz)

Net

435 x 133 x 352mm

Gross*

435 x 150 x 396mm

Net weight

32.2 lbs (14.6 kg)

Shipping weight

37.3 lbs (16.9 kg)
