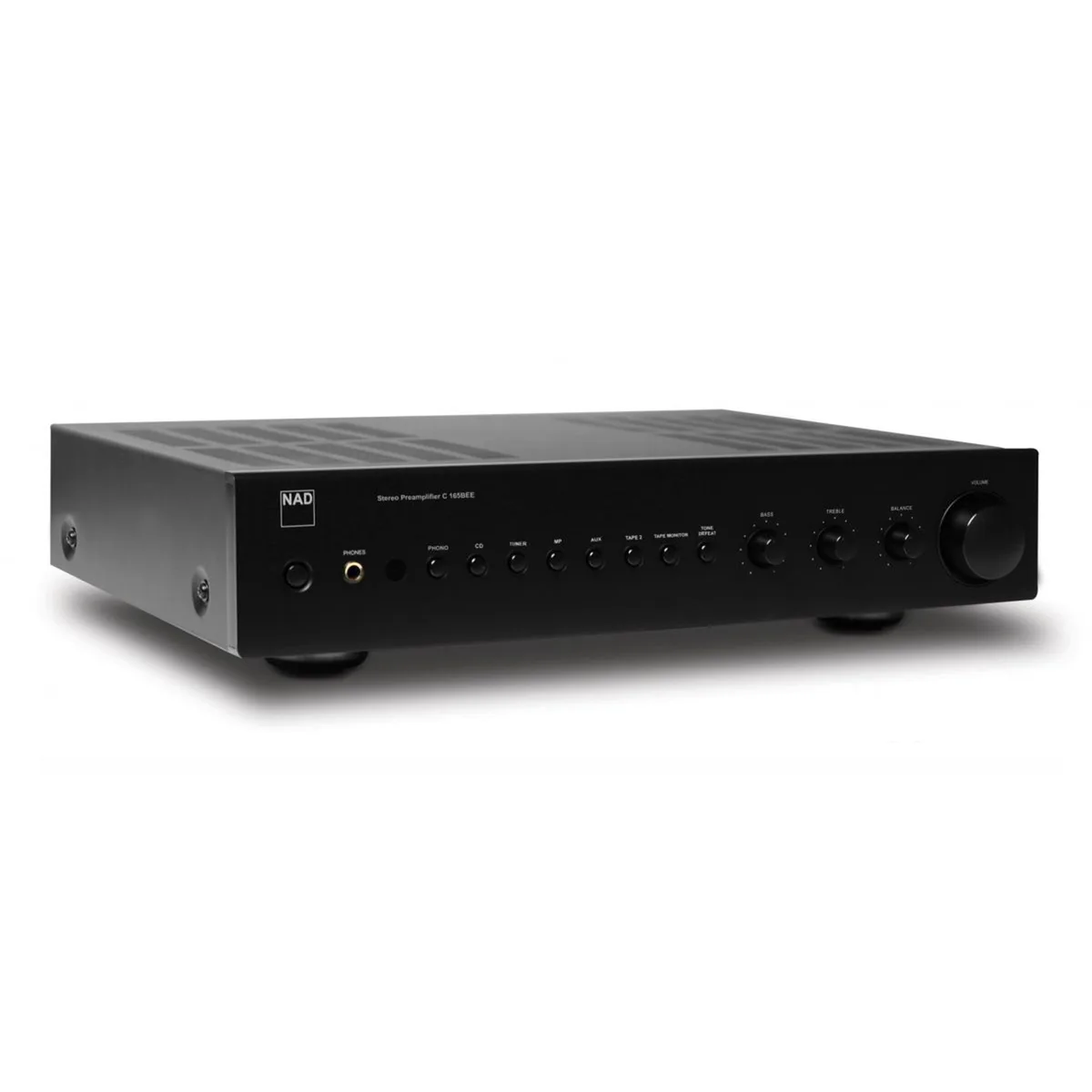

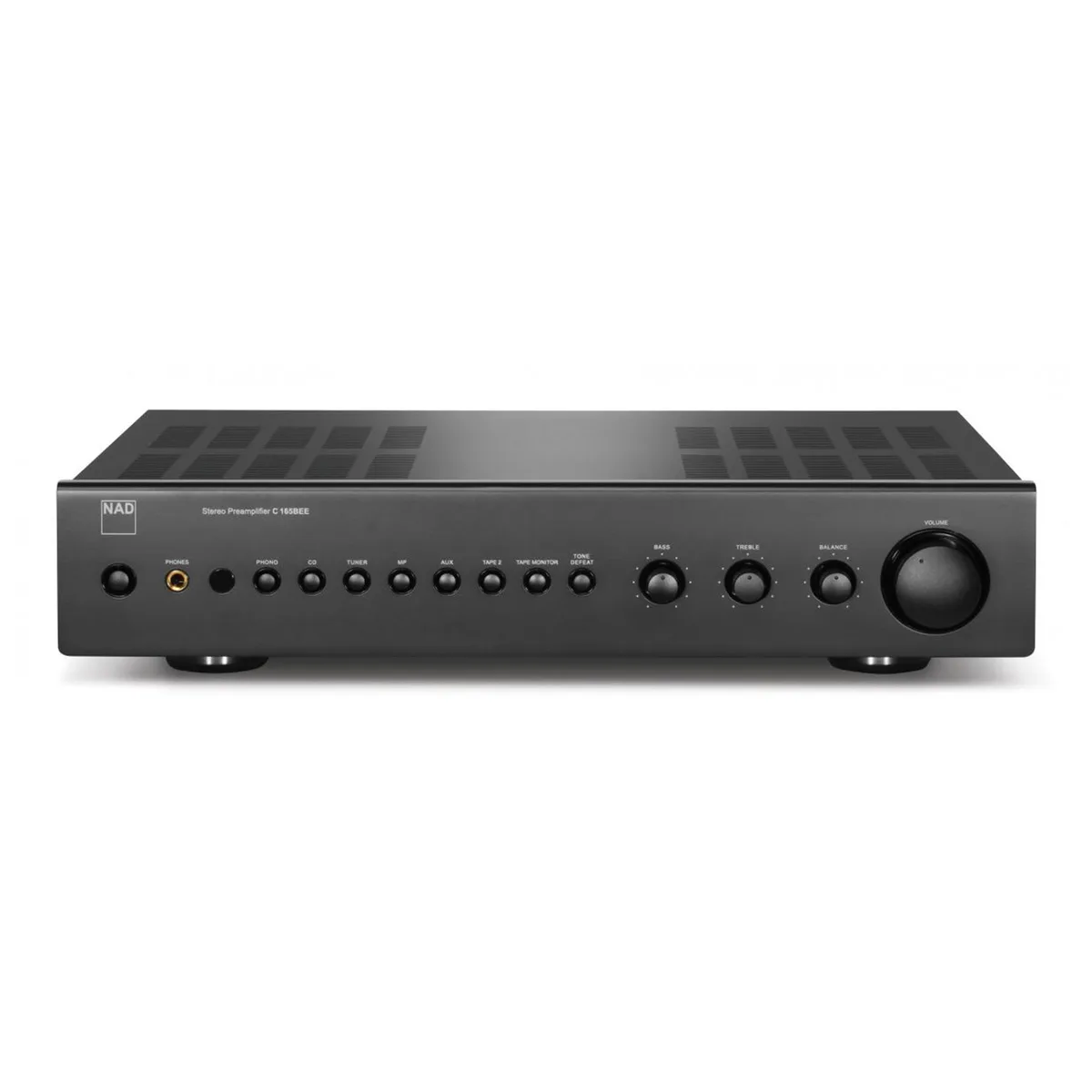

NAD C 165BEE 前級擴大機

產品規格

Input Impedance (R and C)

100 kilohm+ 320 pF

Input Sensitivity

158mV (ref. 500mV out)

Maximum input signal

9V

Signal/Noise Ratio, A weighted

108dB (ref. 500mV in 500mV out, volume set to unity gain)

Frequency response

± 0.1dB (ref. 20Hz - 20kHz, Tone defeat ON)

Frequency response (subwoofer out)

100Hz (ref. -3 dB)

Pre out

75 Ohm

Tape out

Source Z + 440 Ohm

Sub out

100 Ohm

Headphones

10 Ohm

HD (CCIF IMD, DIM 100)

>0.001% dB (ref. 20Hz - 20kHz, 2V out)

Treble

±5dB at 10kHz (ref. 2V in 500mV out)

Bass

±5dB at 100Hz (ref. 2V in 500mV out)

MC

40, 100, 600 Ohm (R) 1nF (C)

MM

47 kilohm (R) 220, 300, 400pF (C)

MC in

59.8dB1 (ref. 1kHz, 10 kilohm load)

MM in

36.5dB (ref. 1kHz, 10 kilohm load)

THD (CCIF IMD, DIM 100)

0.009% (ref. 20Hz - 20kHz, 5Vrms Tape out)

RIAA response accuracy

± 0.5dB (ref. 20Hz - 50Hz)

Infrasonic filter

10Hz (at -3dB)

Channel Separation

>60dB (ref 1kHz/10kHz)

Net

435 x 80 x 286mm

Gross*

435 x 99 x 315mm

Net weight

13.23lb (6kg)

Shipping weight

17.1lb (7.8kg)
