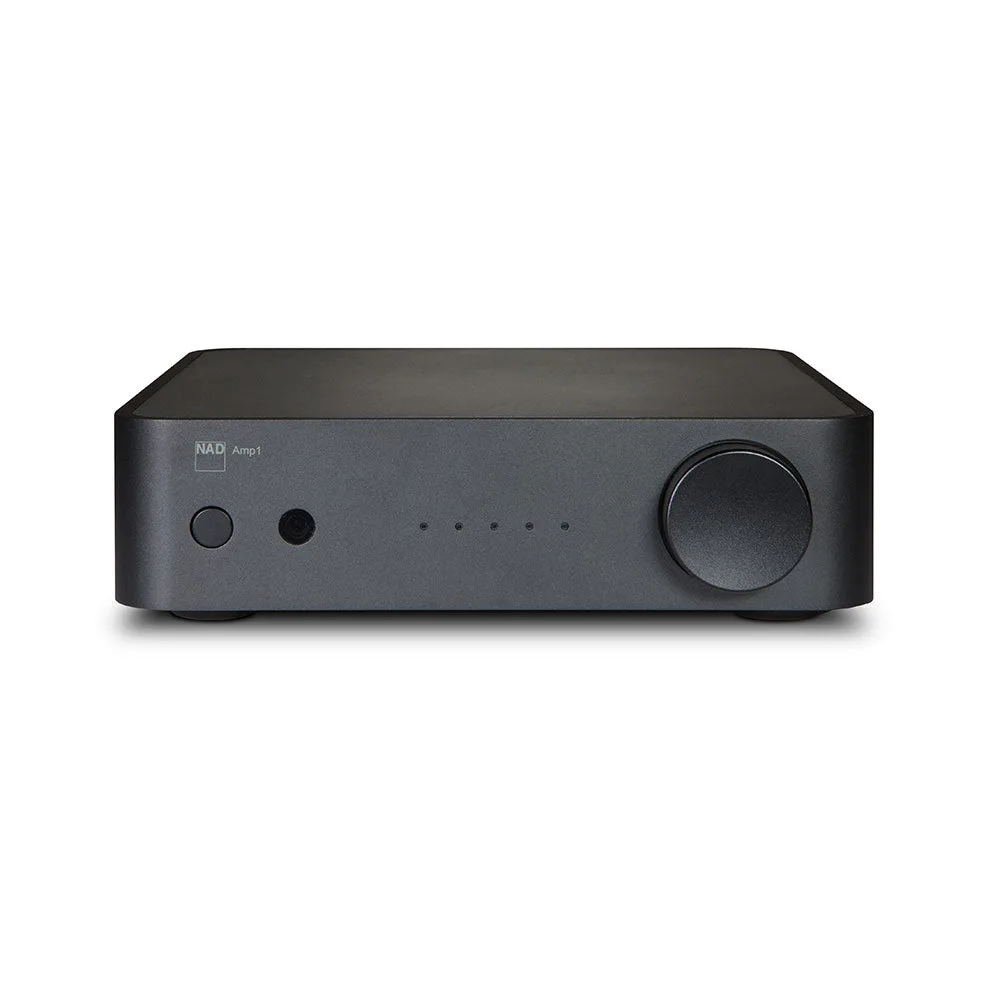

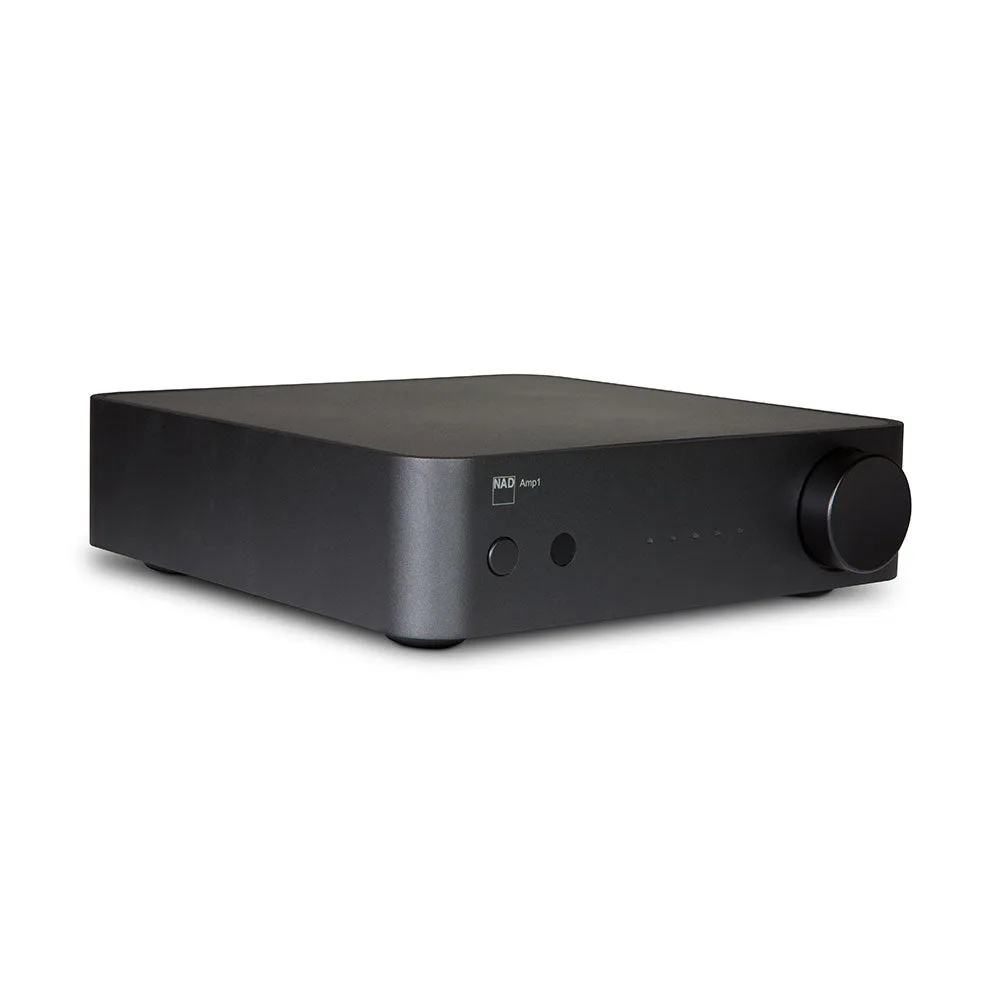

NAD AMP1 DAC

產品規格

Rated Output Power into 4 Ohms and 8 Ohms (Stereo)

>40W (at rated THD, 20-20kHz, both channels driven)

IHF Dynamic Power

4 Ohm 100W, 8 Ohm 50W

Signal/Noise Ratio

>106dB (A-weighted, Optical input, ref. 40W out in 8 Ohms)

Clipping power

>50W (at 1kHz 0.1% THD)

Frequency response

±0.3dB (20Hz-20kHz, 4-8 Ohms load)

Input sensitivity (for 40W in 8 Ohms)

Line In: 450mV Digital In: -5dB FS

Maximum input signal

>2.1Vrms (ref. 0.1% THD)

Output impedance

220 Ohms

Maximum voltage output

>2.0V (ref. 0.1% THD)

Support bit rate/sample rate

Up to 24bit/192kHz

Input sensitivity, Phono

5mV (ref 40W 1kHz 8 Ohms out, volume maximum)

Dimensions (W x H x D) *

220 x 63 x 252mm 8 5/8 x 2 1/2 x 10” **

Net Weight

4.85kg (10.7lb)
