MCINTOSH音響

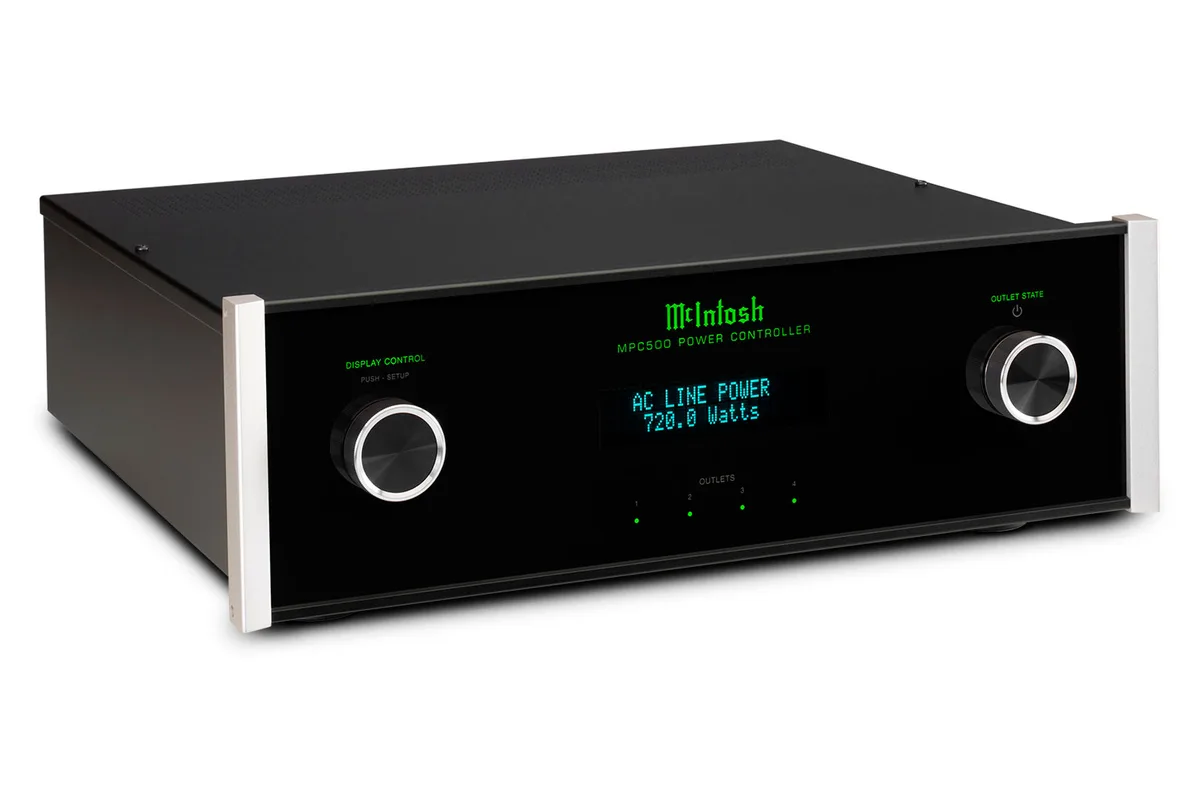

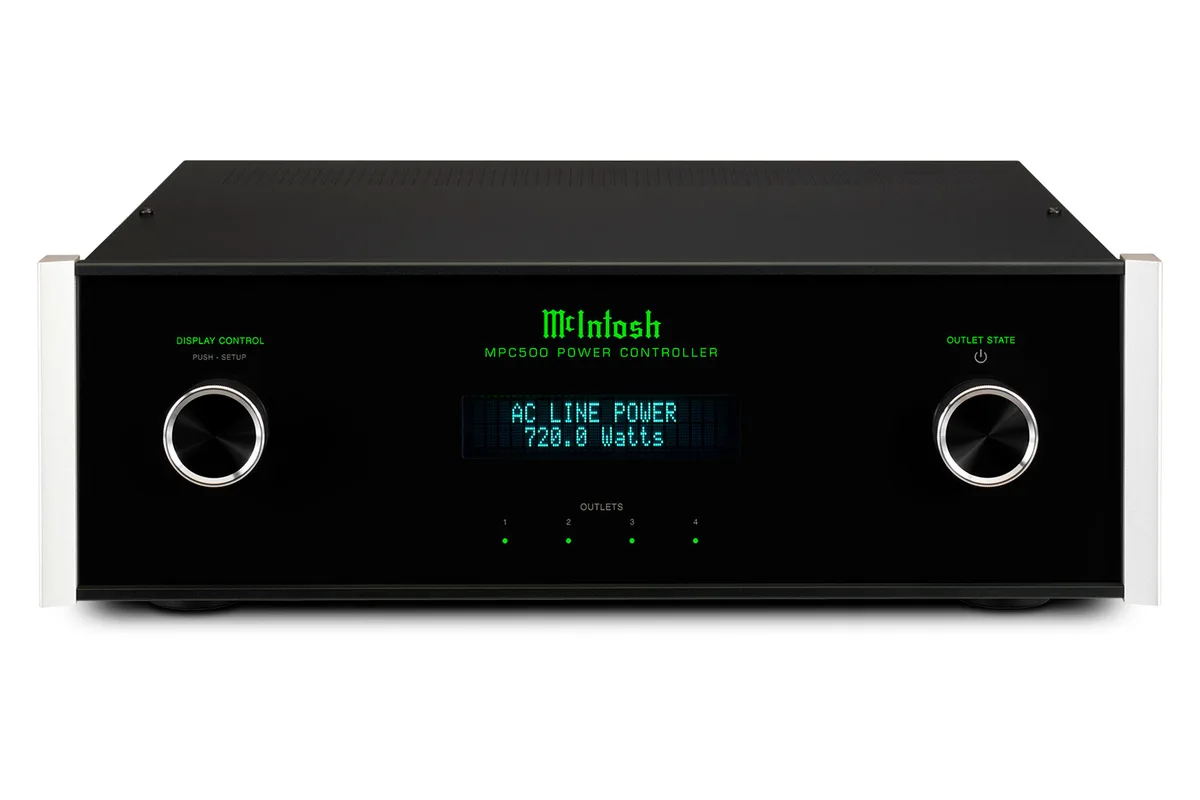

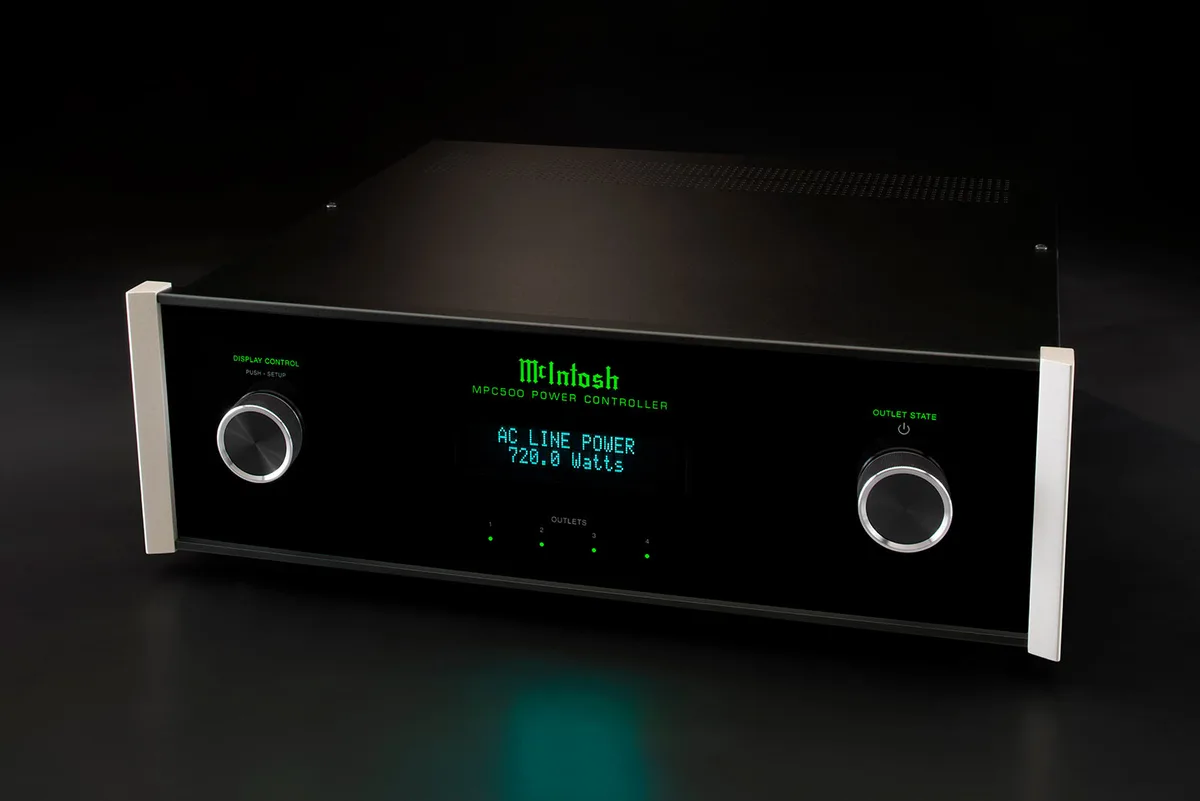

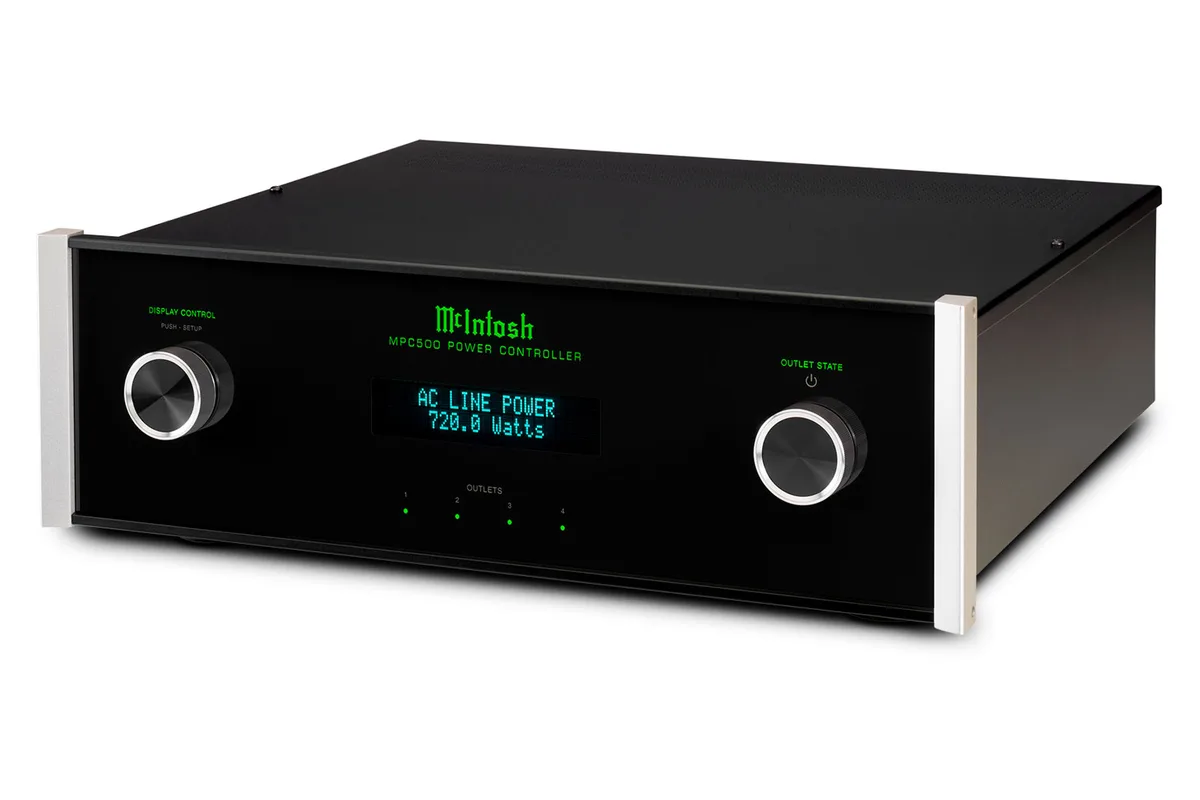

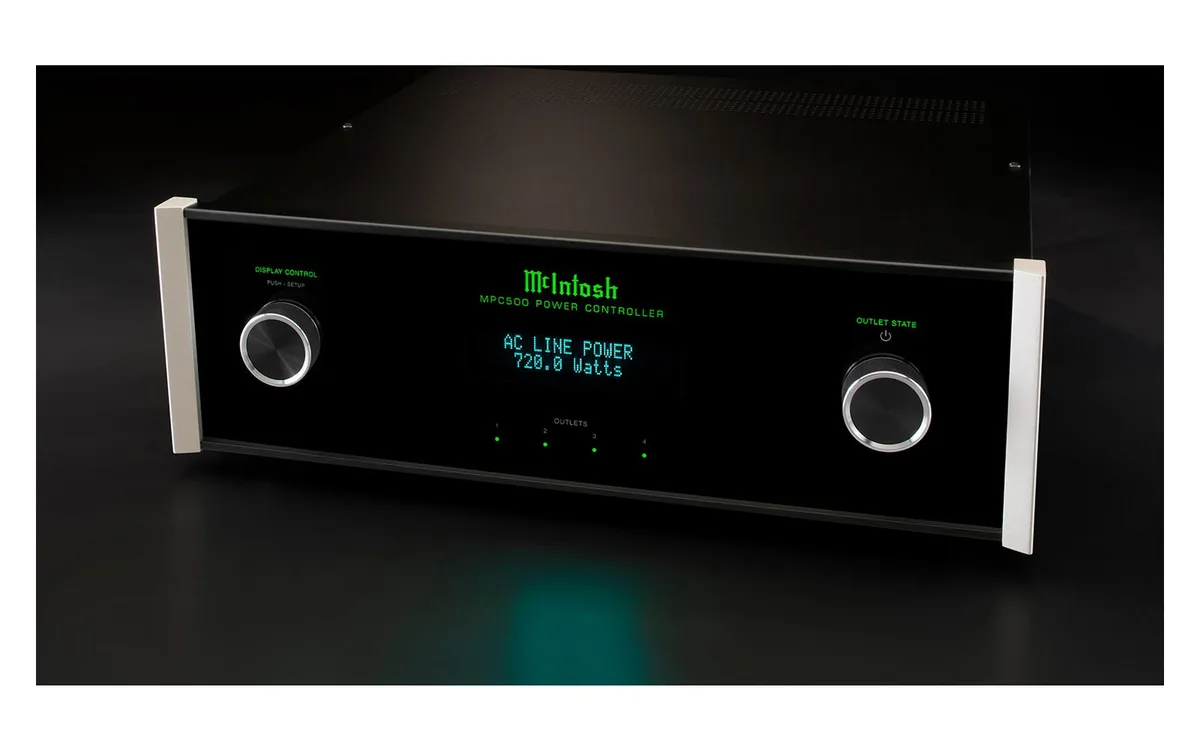

McIntosh MPC500 電源處理器
McIntosh MPC500 電源處理器 · MPC500 · 請洽 LINE 詢價
門市預約試聽
獨立聲學視聽室實機開聲
原廠公司貨保固
台灣授權代理安心售後
自營工班調校
全台音響劇院專業施工
專人一對一解說
客製化劇院系統搭配建議
門市諮詢價
請洽 LINE 詢價
供貨狀況請洽詢
一對一門市專人諮詢週一至六 10:00-21:00
詢價型號與商品識別碼
MCINTOSH MPC500 https://maxaudio1689.com/shop/audio/mcintosh-mpc500-ae1ce71e3c65
產品規格
儀器級規格與硬體參數共 12 項標示
- 輸出電壓
- With Type B (a.k.a. NEMA 5-15R) receptacles: | 120 Volts AC Nominal | | With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: | 240 Volts AC Nominal
- 電源需求
- With Type B (a.k.a. NEMA 5-15R) receptacles: | 120 Volts, 50/60Hz | 12.0 Amps (max) | 1440 Watts (max) | | With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: | 240 Volts, 50Hz | 6.0 Amps (max) | 1440 Watts (max)
- AC電源線保護
- Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection
- Surge Suppression 型式
- AC Power Line: thermally protected metal-oxide varistor (TPMOV) | Secondary Surges: GDTs, PTC thermistors, TVS components
- 功率錶頭
- 0
- 主機尺寸(寬x高x深)
- 17-1/2” (44.45cm) x 6” (15.2cm) x 19” (48.26cm)
- 主機重量
- 18.5 lbs (8.39 kg)
- 含包裝重量
- 34 lbs (15.42 kg)
- 負載調節
- N/A
- 插座數量

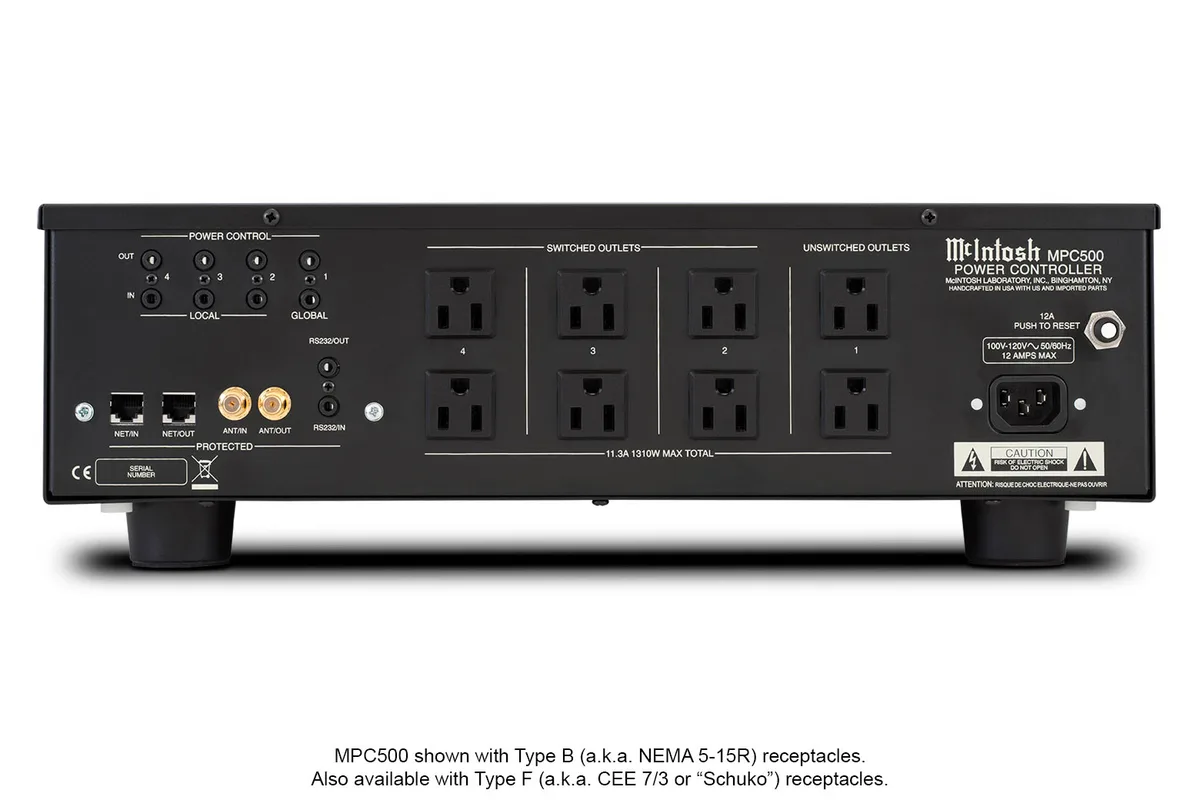

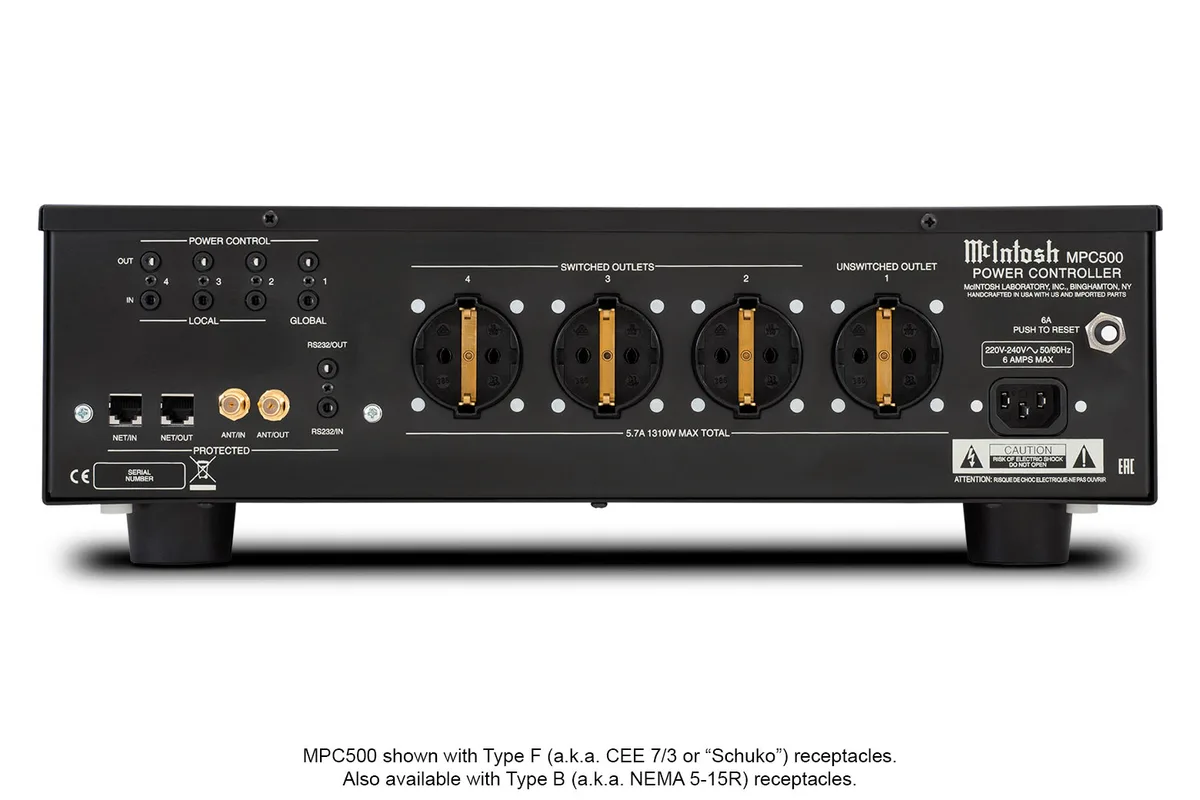

- With Type B (a.k.a. NEMA 5-15R) receptacles: | 8 | | With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: | 4
- 常時插座數量
- With Type B (a.k.a. NEMA 5-15R) receptacles: | 2 | | With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: | 1
- 可程式化插座數量
- With Type B (a.k.a. NEMA 5-15R) receptacles: | 3 pairs | | With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: | 3
