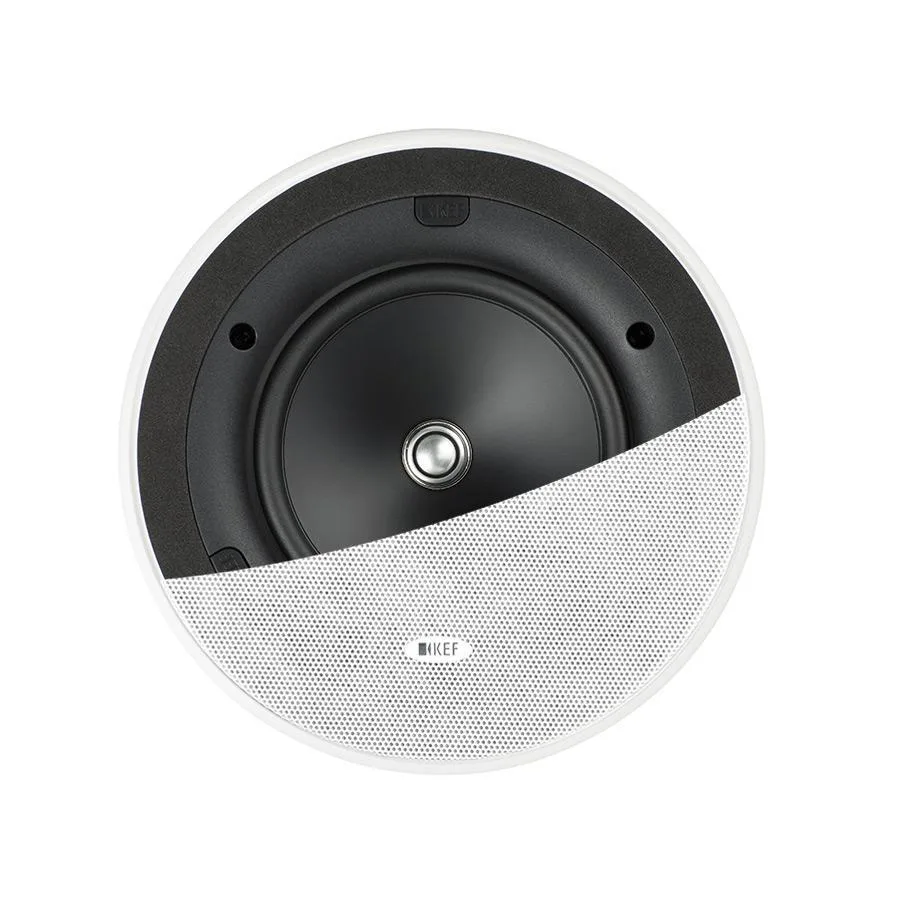

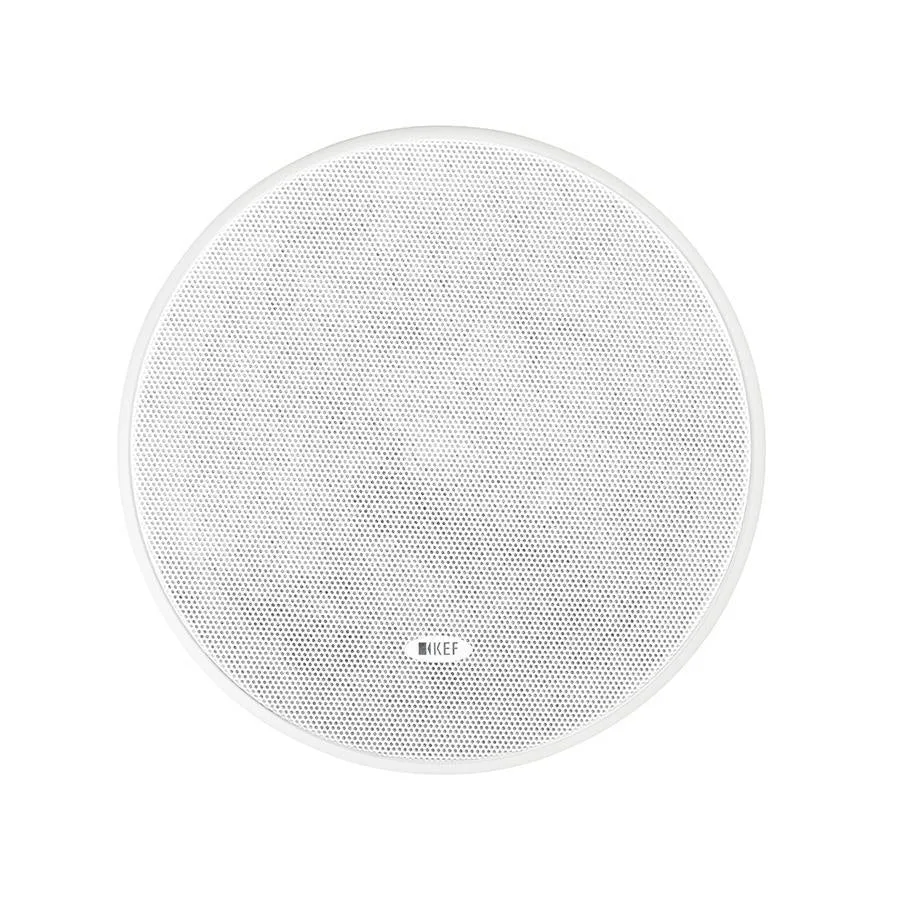

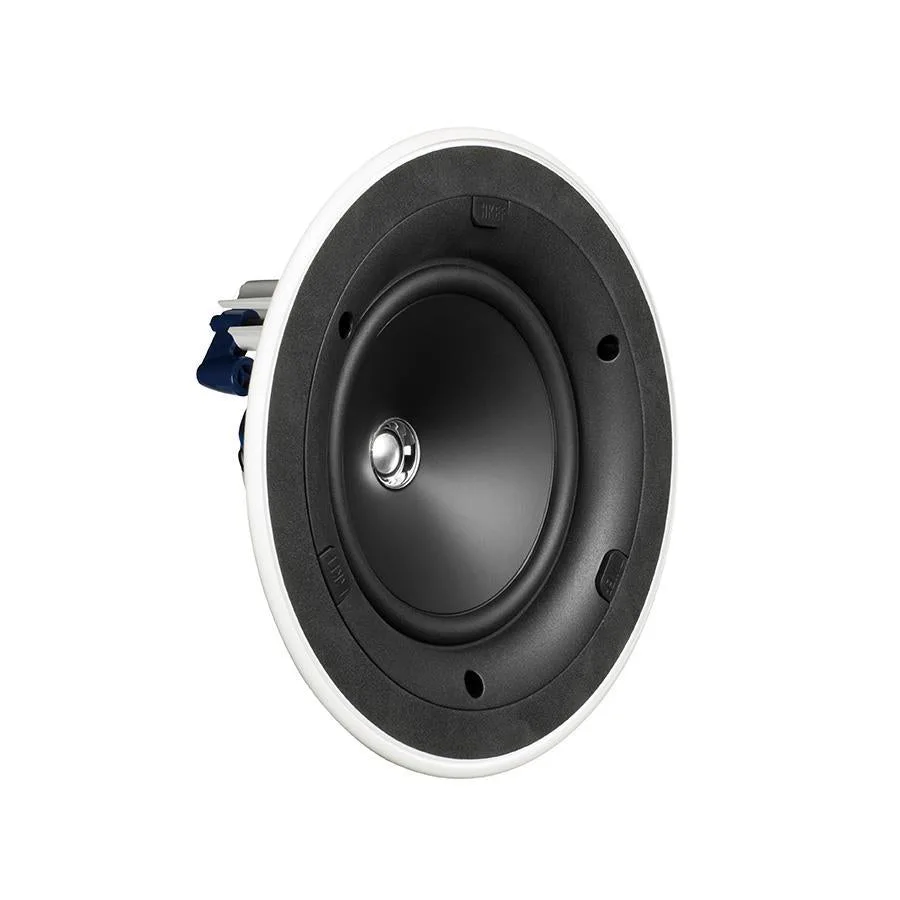

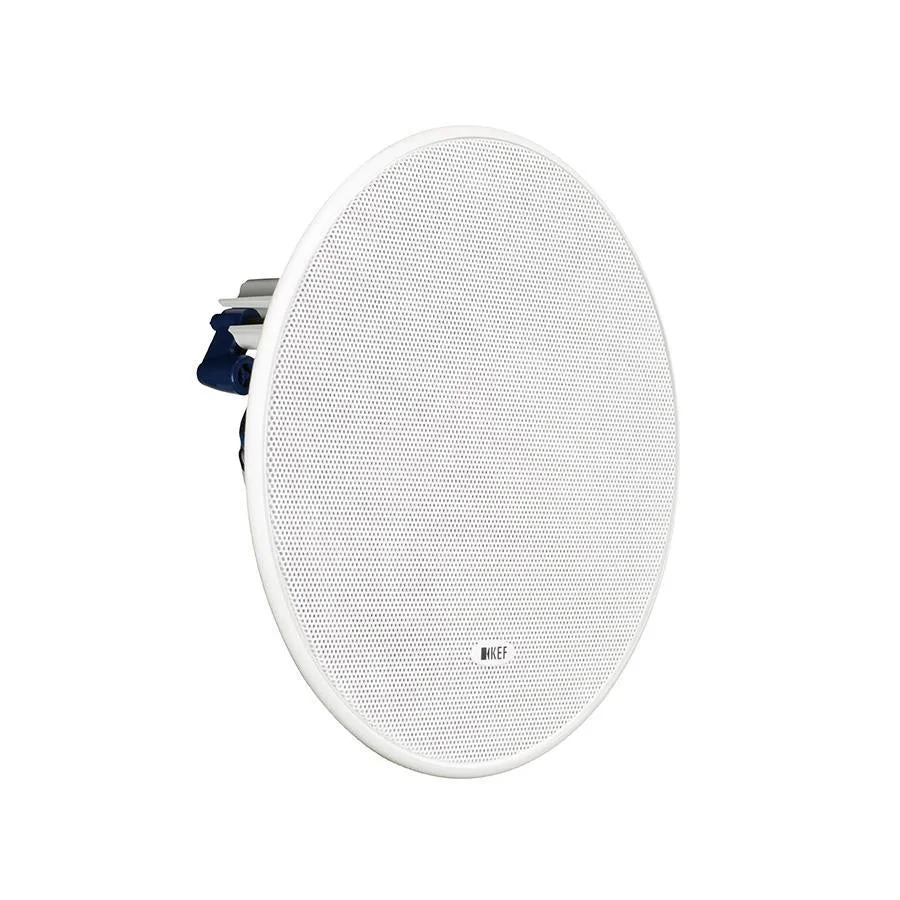

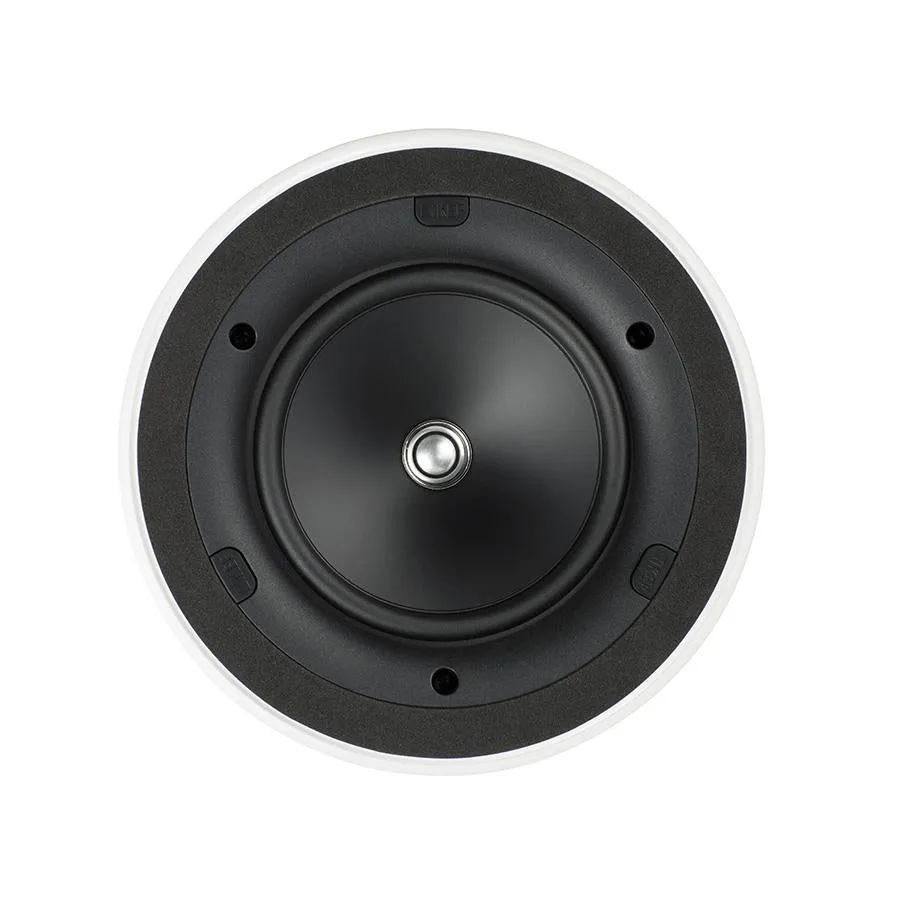

KEF Ci160ER 崁入式喇叭

產品規格

Nomimal Impedance

8 Ohms

Sensitivity

89dB (2.83V/ 1m)

Frequency Response

52Hz - 20kHz (+/-6dB) open-backed

Crossover Frequencies

2.8kHz

Drive Units

LF: 160mm (6.5in.) HF: 16mm (0.6in.)

Recommended Amplifier Power

10-100W

Product External Dimensions

Diameter : 234.6mm (9.24in.) Depth : 88.7mm (3.49in.)

Cut Out Dimensions

Diameter : 196mm (7.71in.)

安裝深度

天花板厚度(最大值) : 36mm (1.42 in.) 天花板厚度(最小值) : 6mm (0.24 in.)

Mounting Depth From Surface

85.2mm (3.35in.)

Optional Rough In Frame

RIF160R

Optional Rear Enclosure

RNC160R

Net Weight

1.4kg (3.1lbs)

Unit Measurement

Piece
