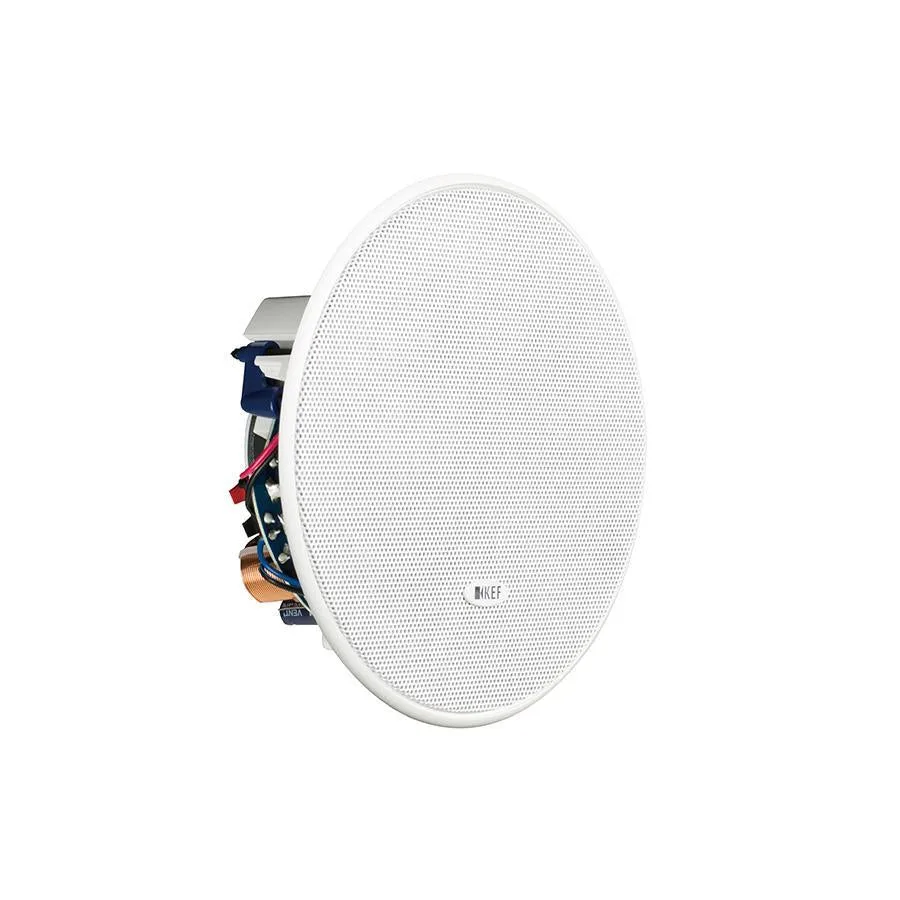

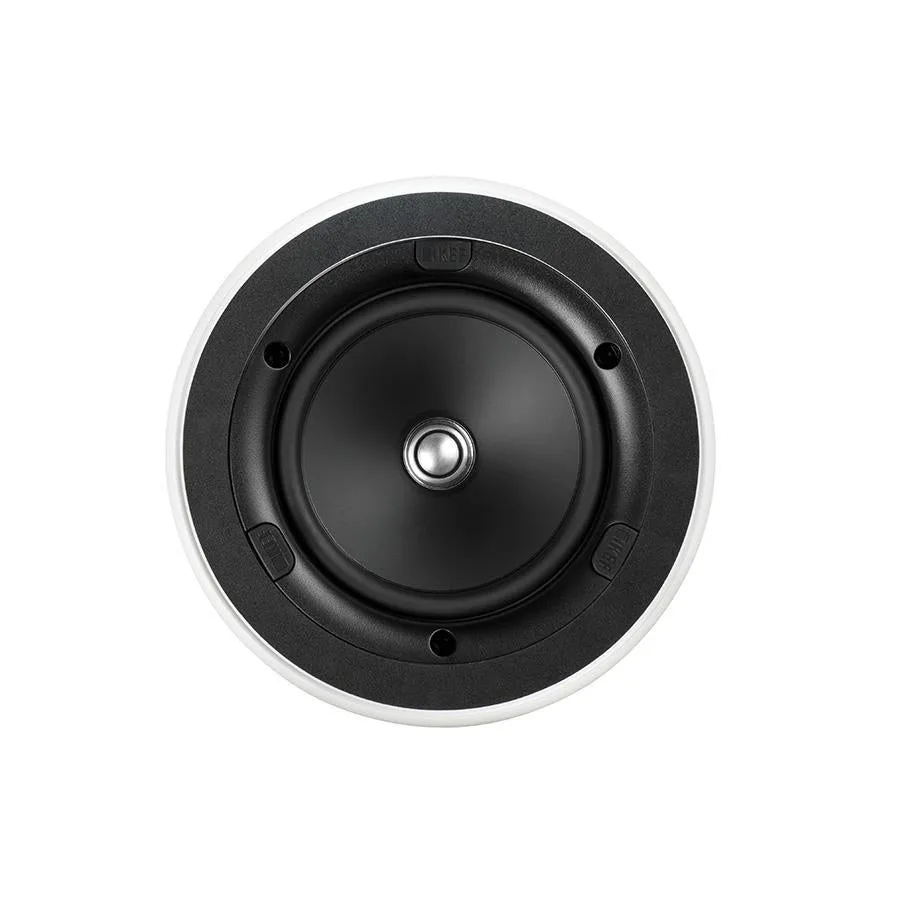

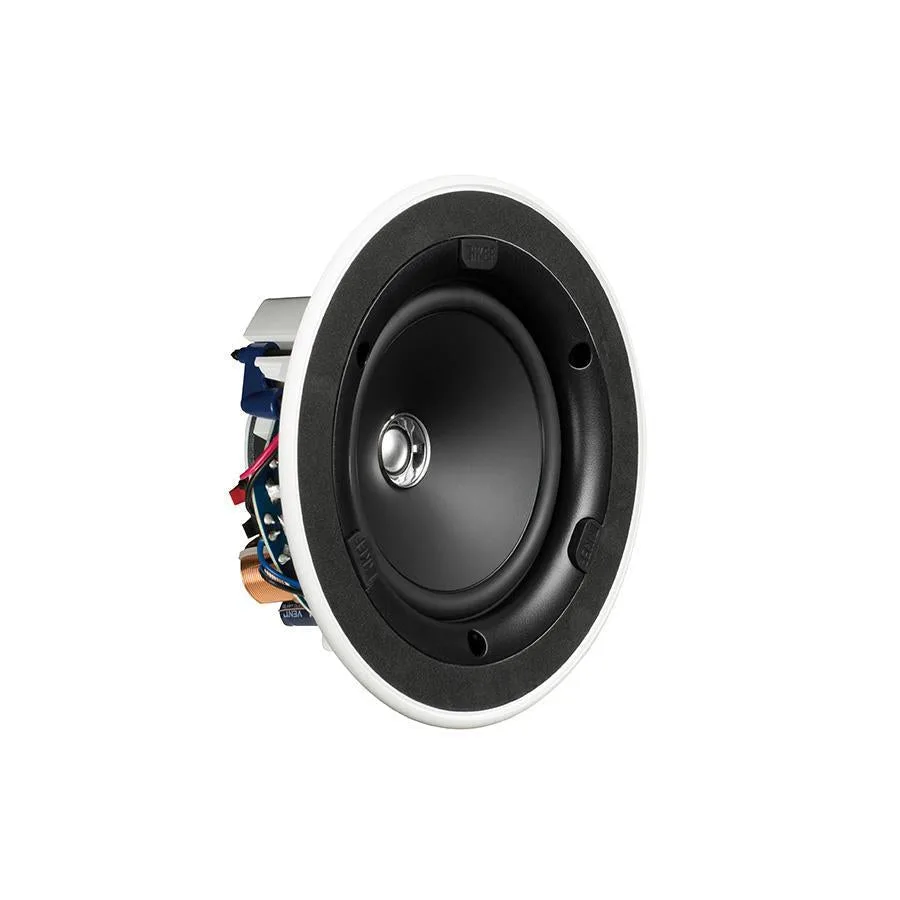

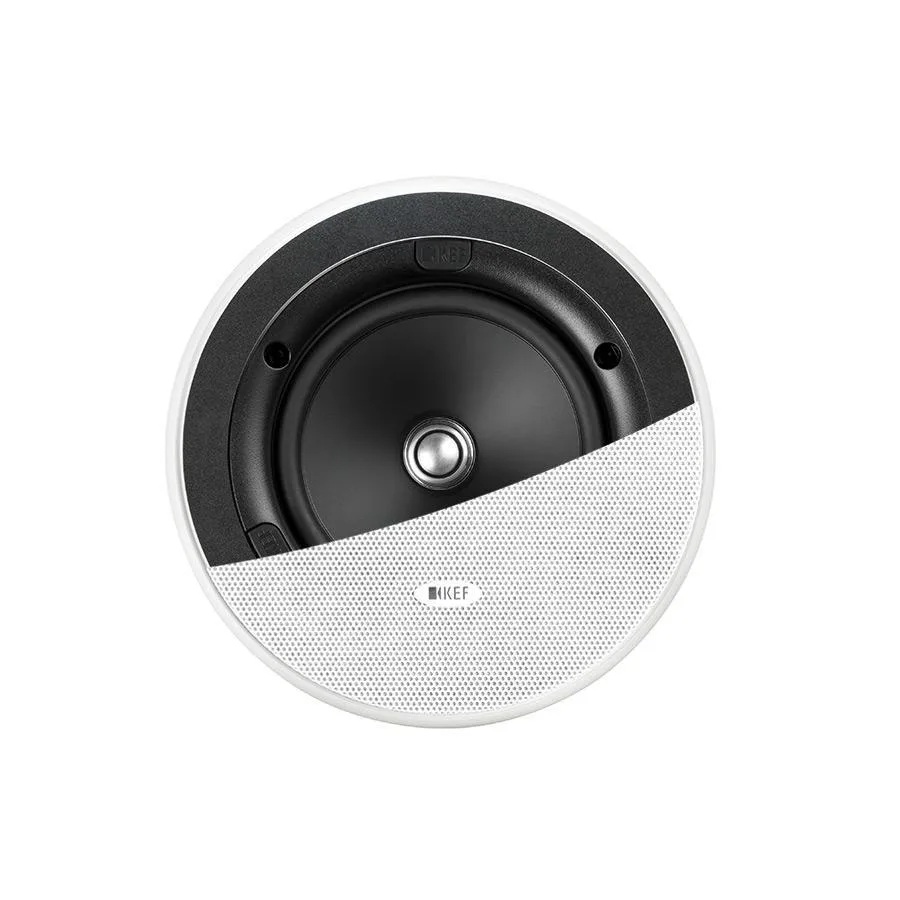

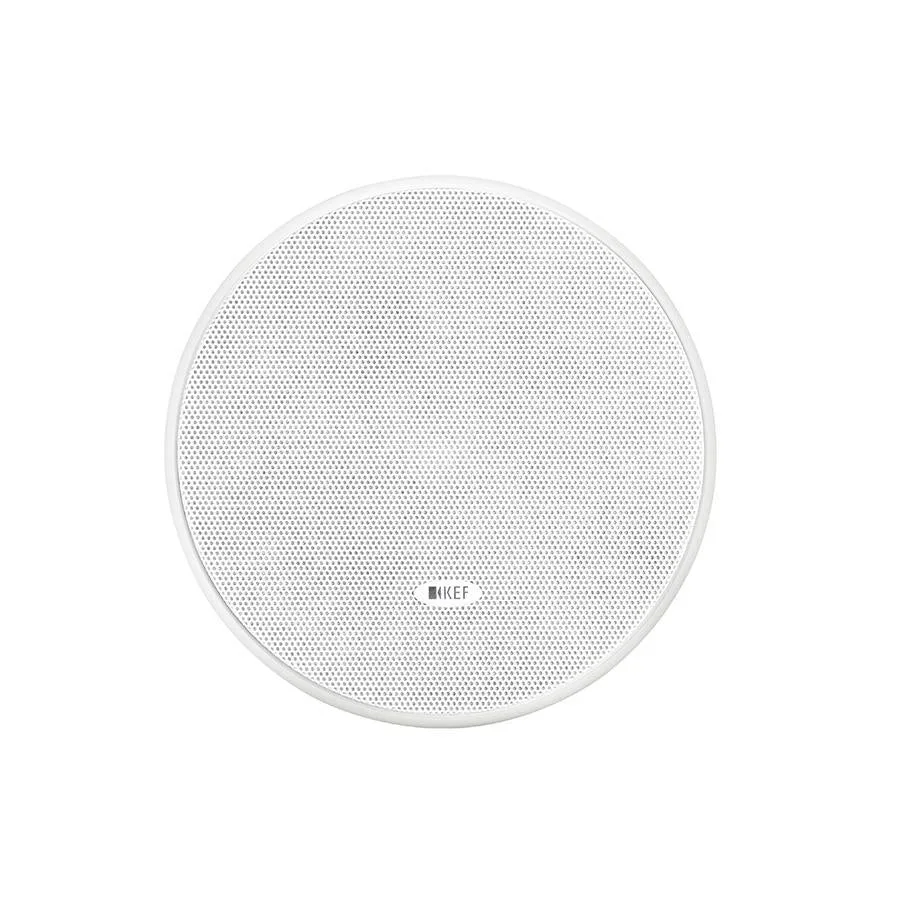

KEF Ci130ER 崁入式喇叭

產品規格

Nomimal Impedance

8 Ohms

Sensitivity

87dB (2.83V/ 1m)

Frequency Response

52Hz - 20kHz (+/-6dB) open-backed

Crossover Frequencies

2.8kHz

Drive Units

LF: 130mm (5.25in.) HF: 16mm (0.6in.)

Recommended Amplifier Power

10-80W

Product External Dimensions

Diameter : 193.4mm (7.61in.) Depth : 81mm (3.19n.)

Cut Out Dimensions

Diameter : 158mm (6.22in.)

安裝深度

天花板厚度(最大值) : 33mm (1.3 in.) 天花板厚度(最小值) : 6mm (0.24 in.)

Mounting Depth From Surface

77.5mm (3.05in.)

Optional Rough In Frame

RIF130R

Optional Rear Enclosure

RNC130R

Net Weight

1.2kg (2.7lbs)

Unit Measurement

Piece
